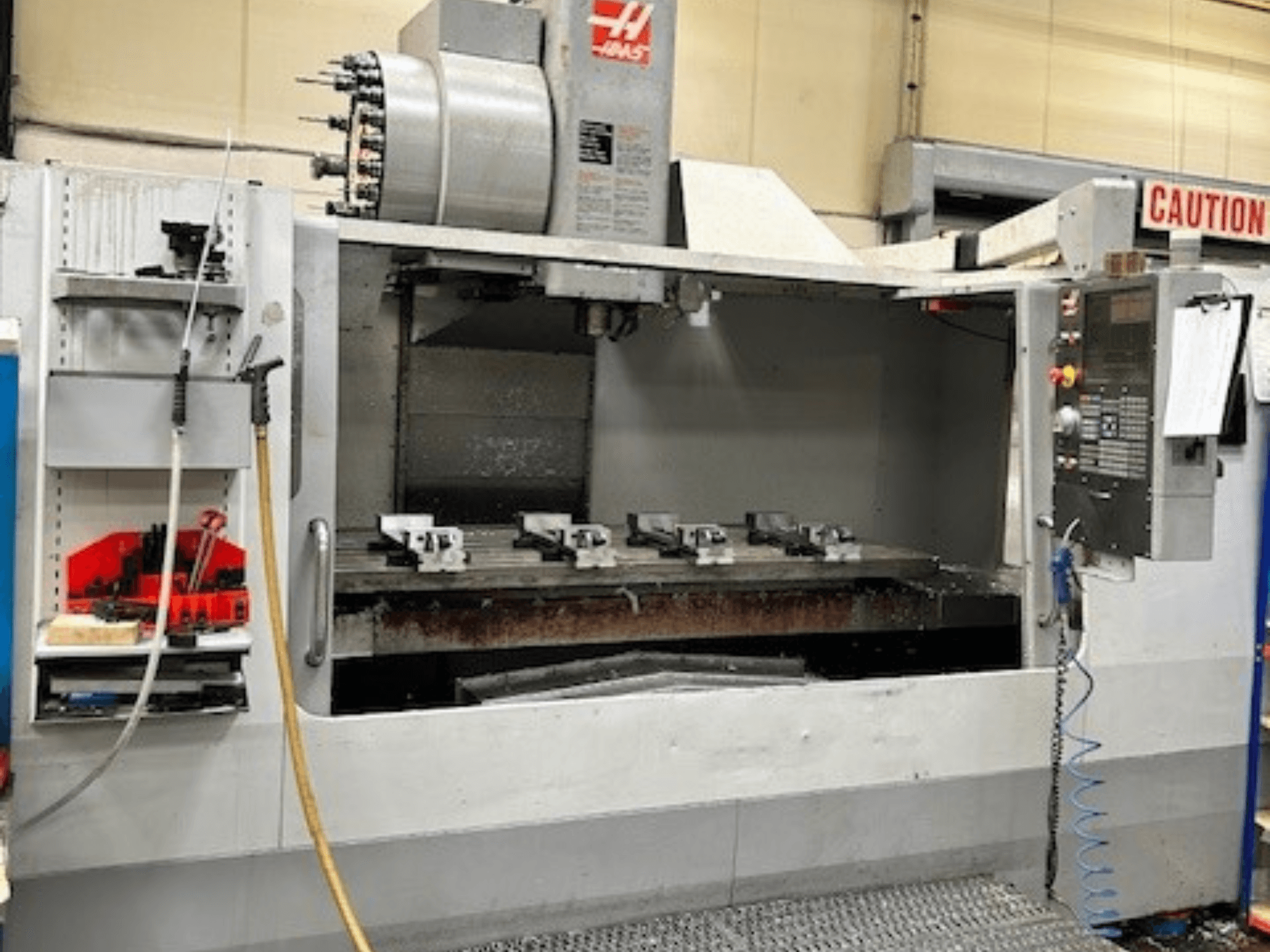

HAAS - VF-9/40HE GB-MIL-HAA-2008-00003

Travels

• Spindle nose to table: 102–864 mm

Table

• Size: 2,134 × 914 mm

• T-slot width: 15.9 mm

• T-slot center distance: 125 mm

Feedrates

• Rapid traverse (X): 15.2 m/min

• Rapid traverse (Y, Z): 15.2 m/min

• Max cutting feed: 12.7 m/min

Spindle

• Max torque: 102 Nm @ 1,400 rpm

• Bearings: ABEC Class 7

• Electronic spindle orientation

Tool changer

• Capacity: 24+1 standard (40+1 optional)

• Tool type: CT40 standard / BT optional

• Max tool diameter: 76 mm (all pockets filled); 152 mm (adjacent pockets empty)

• Max tool length: —

• Type: Electromechanical, cam-driven

• Tool-to-tool: 2.8 s

• Chip-to-chip: 3.6 s

Machine requirements

• Power requirement: 14 kVA

• Voltage: 200–250 VAC, 3-phase, 50–60 Hz

• Air required: 113 L/min at 6.9 bar

Enclosure

• Full steel enclosure
