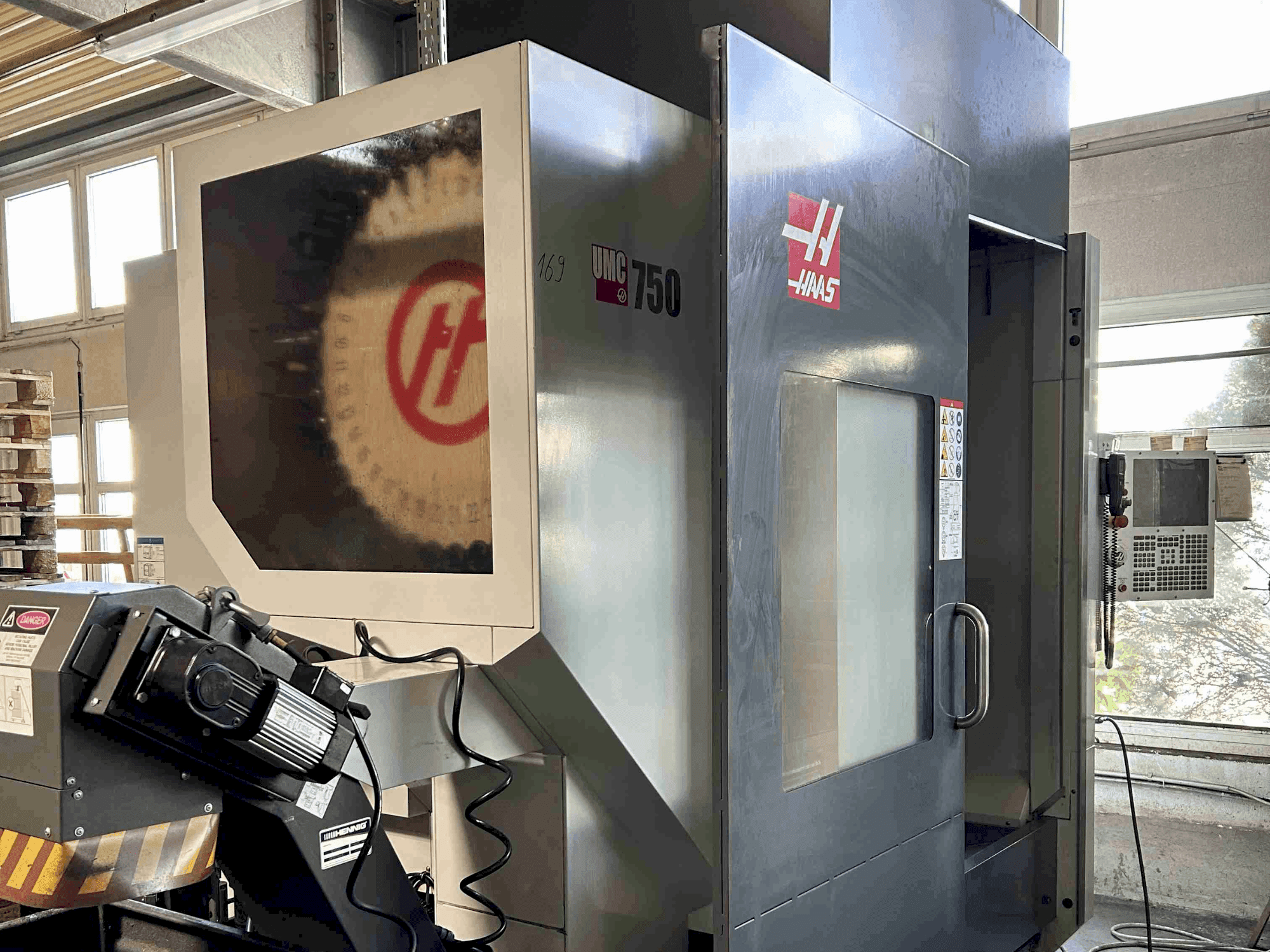

Front view of HAAS UMC-750  machine

HAAS - UMC-750DE-MIL-HAA-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis HAAS UMC-750 vertical machining centre was manufactured in 2018. It features a SK-40 spindle with 12,000 rpm, a 22.4 kW vector drive, and a 40+1 tool changer magazine. The machine includes a 500 mm 2-axis rotary/swivel table, rapid traverse rates up to 30.5 m/min, and a hinged belt chip conveyor. A great opportunity to buy this HAAS UMC-750 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: HAAS
  • year: 2018
  • MODEL: UMC-750
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - HAAS UMC-750

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: SK-40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 508 mm

Tools

  • Number of index: 41

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Fully functional, under power, ready for demonstration
    • - Integrated 500 mm 2-axis rotary/swivel table
    • - Intuitive wireless touch probe system
    • - Programmable coolant nozzle
    • - Additional coolant filter system 25μ
    • - Hinged belt chip conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ikz: yes (21 bar)
        • - High throughput with rapid traverse rates up to 30. 5 m/min
        • - Efficient and precise machining with integrated rotary table and wireless touch probe
      • Qualitative Machine Benefits:
        • - Enhanced machining accuracy and surface finish
        • - Improved coolant management with programmable nozzle and additional filter system

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
