HAAS UMC-750

Photo Gallery

HAAS - UMC-750PL-MIL-HAA-2014-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

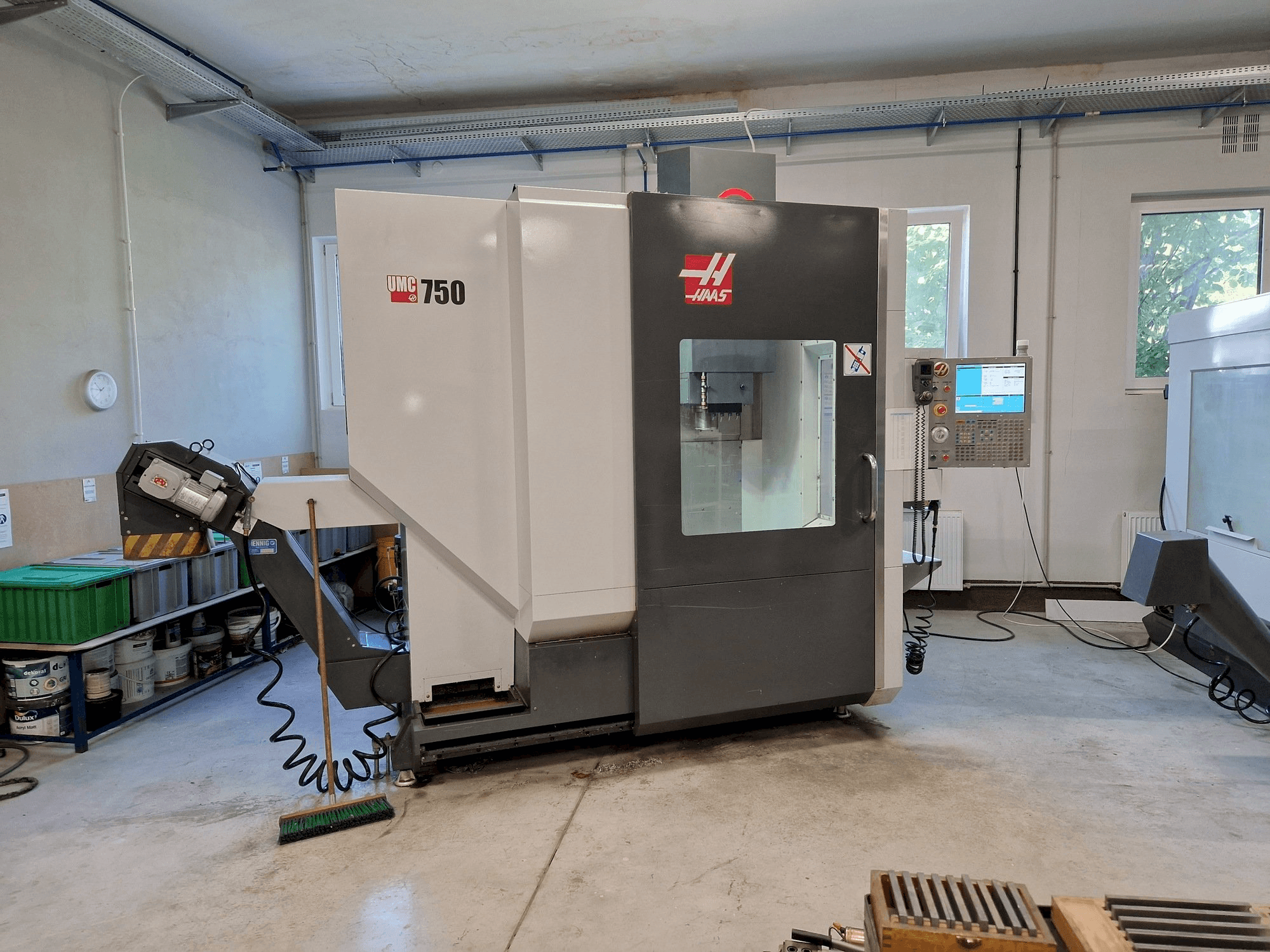

HAAS UMC-750 Vertical Machining center

This HAAS UMC-750 Vertical Machining center was manufactured in the year 2014 in the United States and has 22471 production hours. It is equipped with a HAAS control unit and has 5 axis. The machines has a spindle speed of 12000 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2014
MODEL: UMC-750
production hours: 22471
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 1445 mm
Machine Height: 2870 mm
Machine Weight: 8165 kg
Table Length: 630 mm
Table Load: 300 kg
Table Width: 500 mm

Movement

B-axis Max: 110°
B-axis Min: -35°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 508 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM
Tool Stations: 41

Additional Information

Machine Benefits

Qualitative Machine Benefits

Spindle cooling, higher power pump 21 bar, 22 l/min
Additional filter system, 25 μm filter, required for machining cast iron, aluminum, wood, phenolic resin-based plastics, and other dusty materials.
Belt chip ejector
Network card
Early power failure detection module
Internal memory expansion up to 750mb
Faster processor with look-ahead function, accelerating shape processing with 3-axis interpolation.
Torque 122 nm for 2000 rpm, direct drive.
Machine in very good working condition, ready for tests. Full documentation available.

Technical Machine Benefits

Drive system: inline direct-drive
Tool changer type: smtc
Time of changing tools: 2. 8 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
