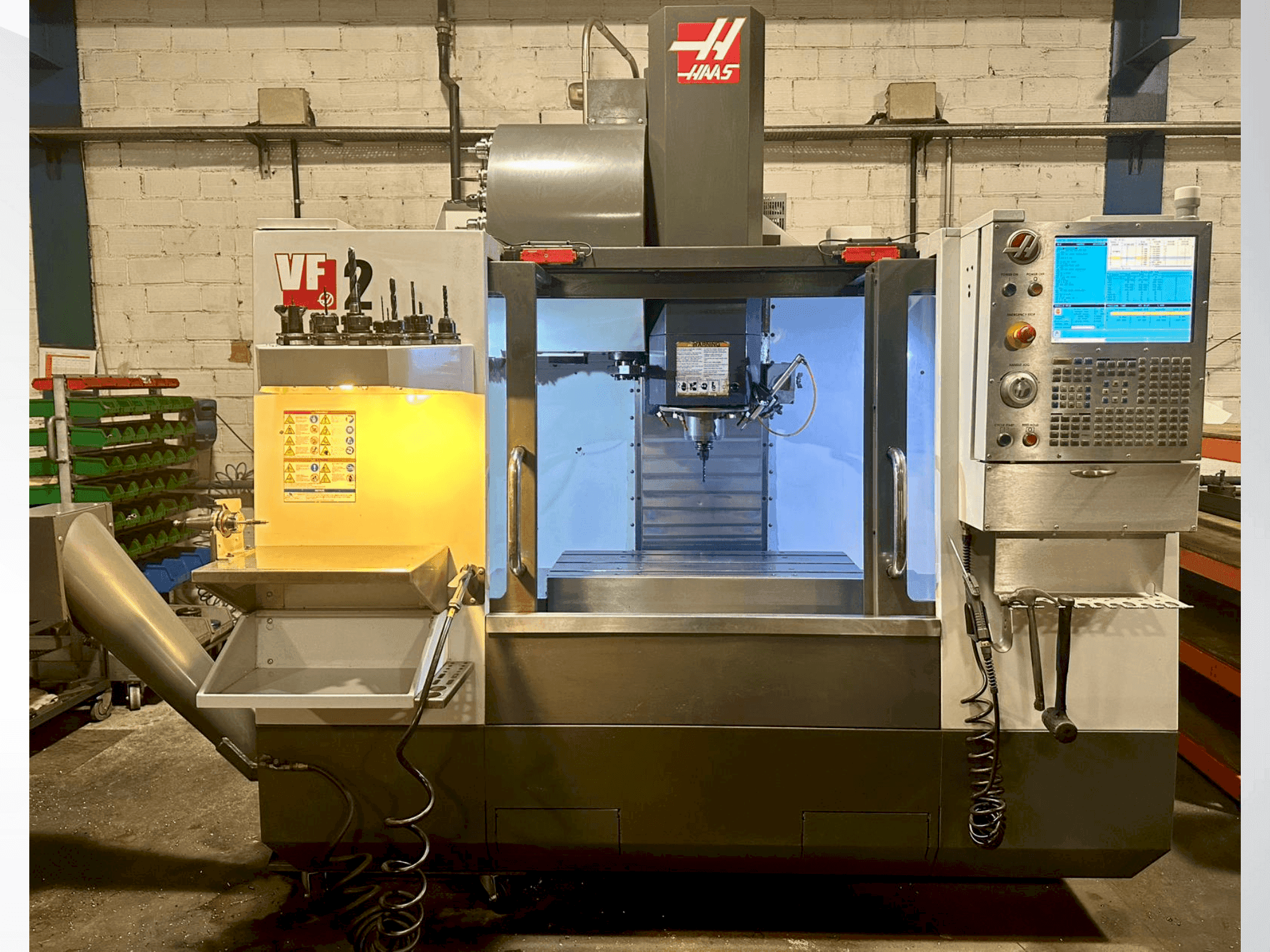

Front view of HAAS VF-2  machine

HAAS - VF-2ES-MIL-HAA-2014-00004

38,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis HAAS VF-2 vertical machining center was manufactured in 2014. It features a robust BT 40 spindle capable of speeds up to 8,000 rpm and a table size of 914 x 356 mm, supporting up to 1000 Kg. Equipped with a 24-position ATC and rapid traverses of 25 m/min in all axes, the HAAS VF-2 machine we have for sale is ideal for efficient machining. Contact us for further details regarding this vertical machining center.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: VF-2
  • production hours: 6430
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS

Technical Information - HAAS VF-2

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 8,000 1/MIN
  • Tool taper: BT 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 762 mm
  • X-AXIS Rapid traverse: 25 m/min
  • Y-AXIS Movement: 406 mm
  • Y-AXIS Rapid traverse: 25 m/min
  • Z-AXIS Movement: 508 mm
  • Z-AXIS Rapid traverse: 25 m/min

Table

  • Outer length: 914 mm
  • Outer width: 356 mm
  • Table load: Maximum 1000 kg

Tools

  • Slots in storage: 24
  • Max tool diameter: 89 mm
  • Type of tool holder: ATC Random

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cutting feed: 1 to 12000 mm/min

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
