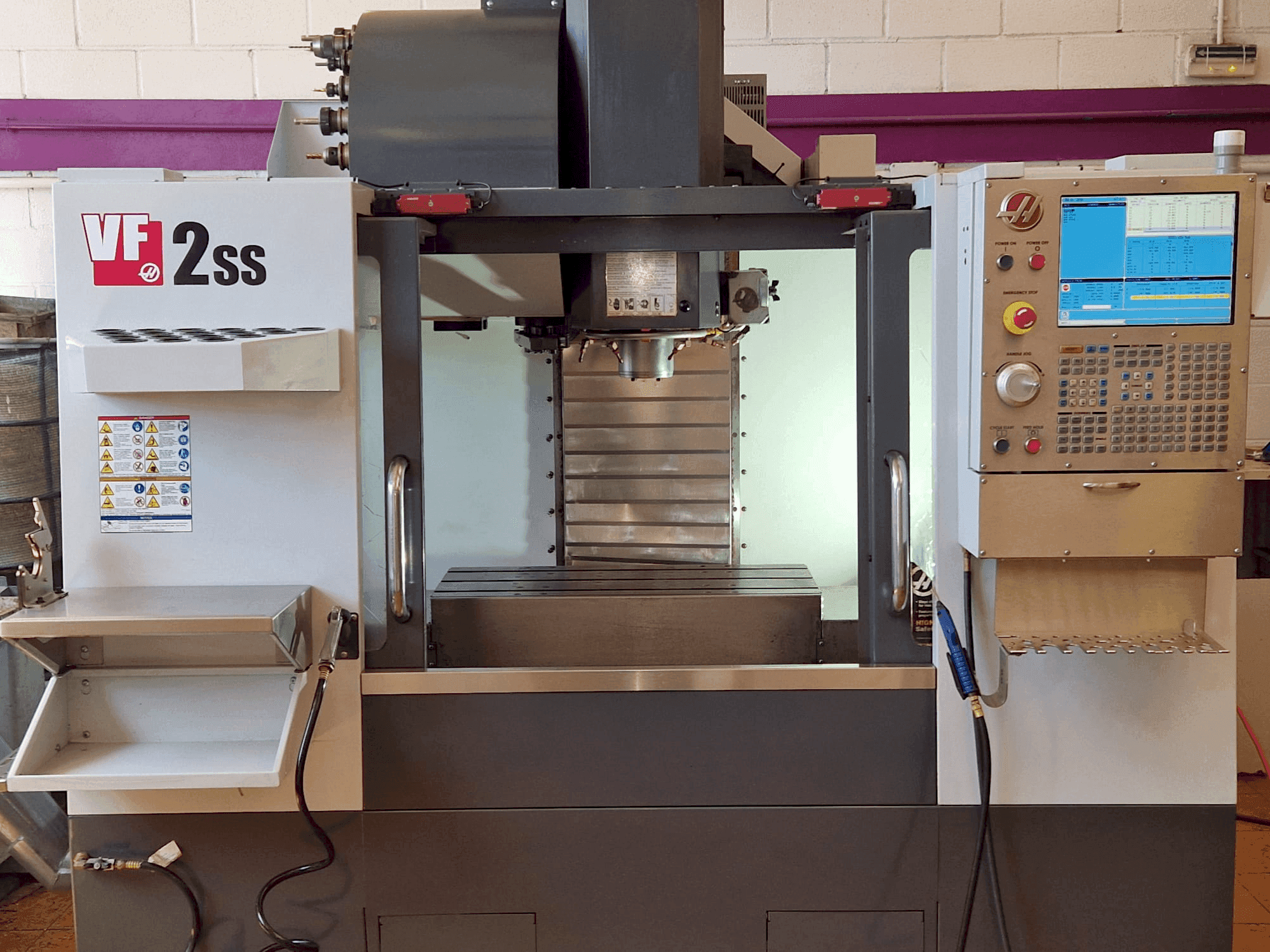

Front view of HAAS VF-2SS  machine

HAAS - VF-2SSES-MIL-HAA-2015-00005

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis HAAS VF-2SS vertical machining centre was manufactured in 2015. It features a 762 mm X-axis, 406 mm Y-axis, and 508 mm Z-axis travel, with a spindle capable of reaching up to 12000 rpm and a power of 22.4 kW. The table measures 914 mm in length and 356 mm in width, supporting up to 680 kg. A great opportunity to buy this HAAS VF-2SS vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: HAAS
  • year: 2015
  • MODEL: VF-2SS
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - HAAS VF-2SS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 406 mm
  • Z-AXIS Movement: 508 mm

Table

  • Outer length: 914 mm
  • Outer width: 356 mm
  • Table load: 680 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle nose to table: the range from 102 mm to 610 mm allows flexibility in handling various workpiece heights.
      • - Number of std t-slots: 3
      • - T-slot width: 15. 90 mm - 16. 00 mm
      • - T-slot center distance: 125 mm
    • Qualitative Machine Benefits:
      • - Flexibility in t-slot configuration: the t-slot width of 15. 90 mm to 16. 00 mm and the center distance of 125 mm offer ample space and flexibility for workholding solutions, contributing to the high precision and reliability of machining processes.

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
