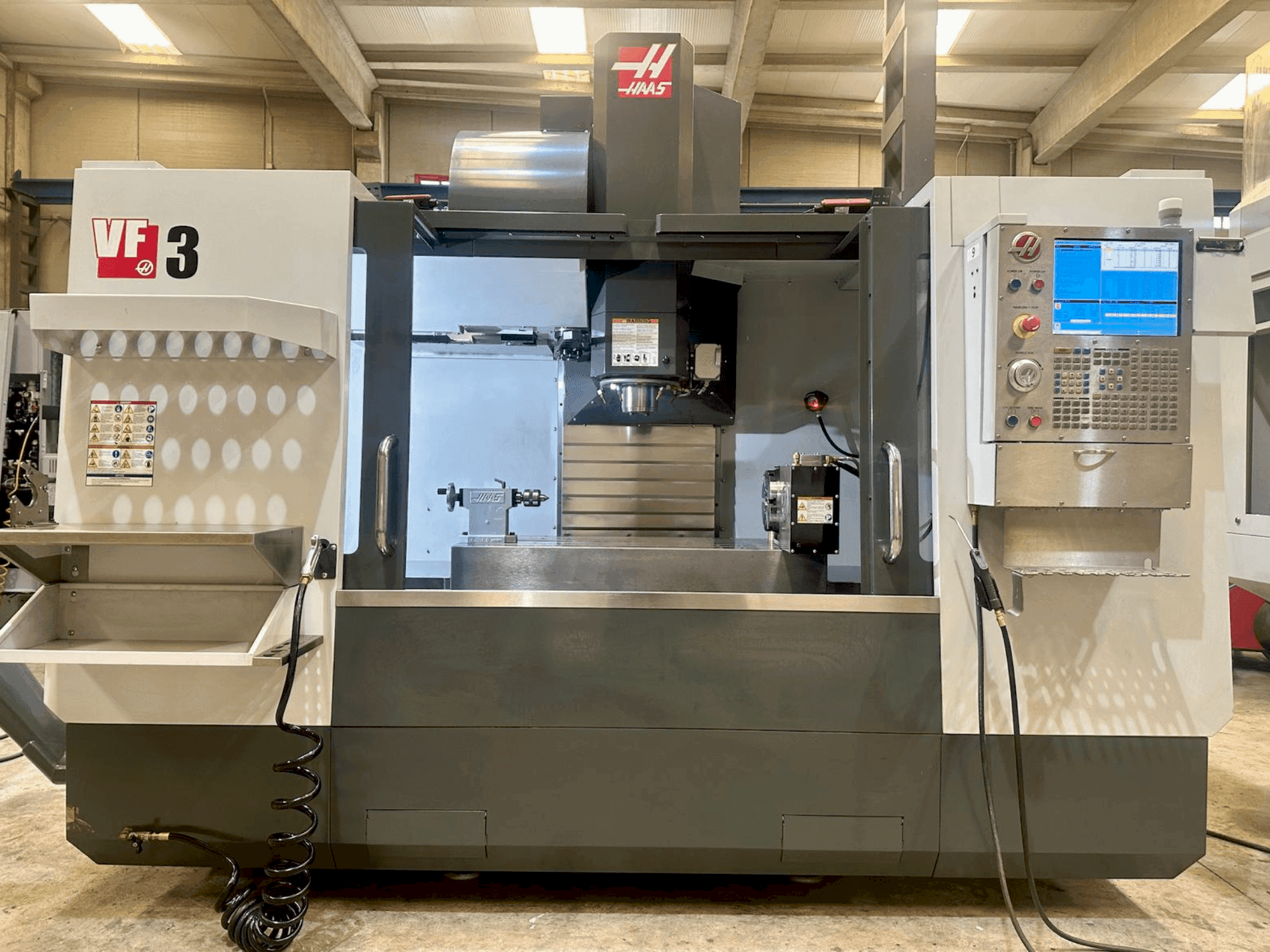

This 4-axis HAAS VF-3 vertical machining centre was manufactured in 2014. It features a robust 1016 mm X-axis travel, 508 mm Y-axis, and 635 mm Z-axis, ensuring versatile machining capabilities. The spindle delivers a maximum power of 22.4 kW and speeds up to 8100 rpm. Equipped with a 24-slot tool changer and additional 4th axis for complex operations. A great opportunity to buy this HAAS VF-3 vertical machining centre. Contact us for further details regarding this vertical machining center.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: VF-3
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - HAAS VF-3

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8100 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 635 mm

Table

  • Outer length: 1219 mm
  • Outer width: 457 mm
  • Number of tslots: 5
  • Distance between: 80 mm
  • Table load: 1588 kg

Tools

  • Max weight: 5.4 kg
  • Max tool diameter: 89 mm

    Additional Equipment

    • - Tool Changer Type: Random
    • - Tool Changer Capacity: 24
    • - Probing
    • - Coolant and Chip Treatment
    • - Tailstock

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - T-slot width: 15. 90 mm to 16. 00 mm
        • - High spindle power and speed, extensive tool capacity, and advanced table specifications for handling heavy loads.
      • Qualitative Machine Benefits:
        • - Enhanced precision with probing and 4th axis capabilities, efficient chip and coolant management.

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
