➤ Used HAAS VF-4SS For Sale | gindumac.com

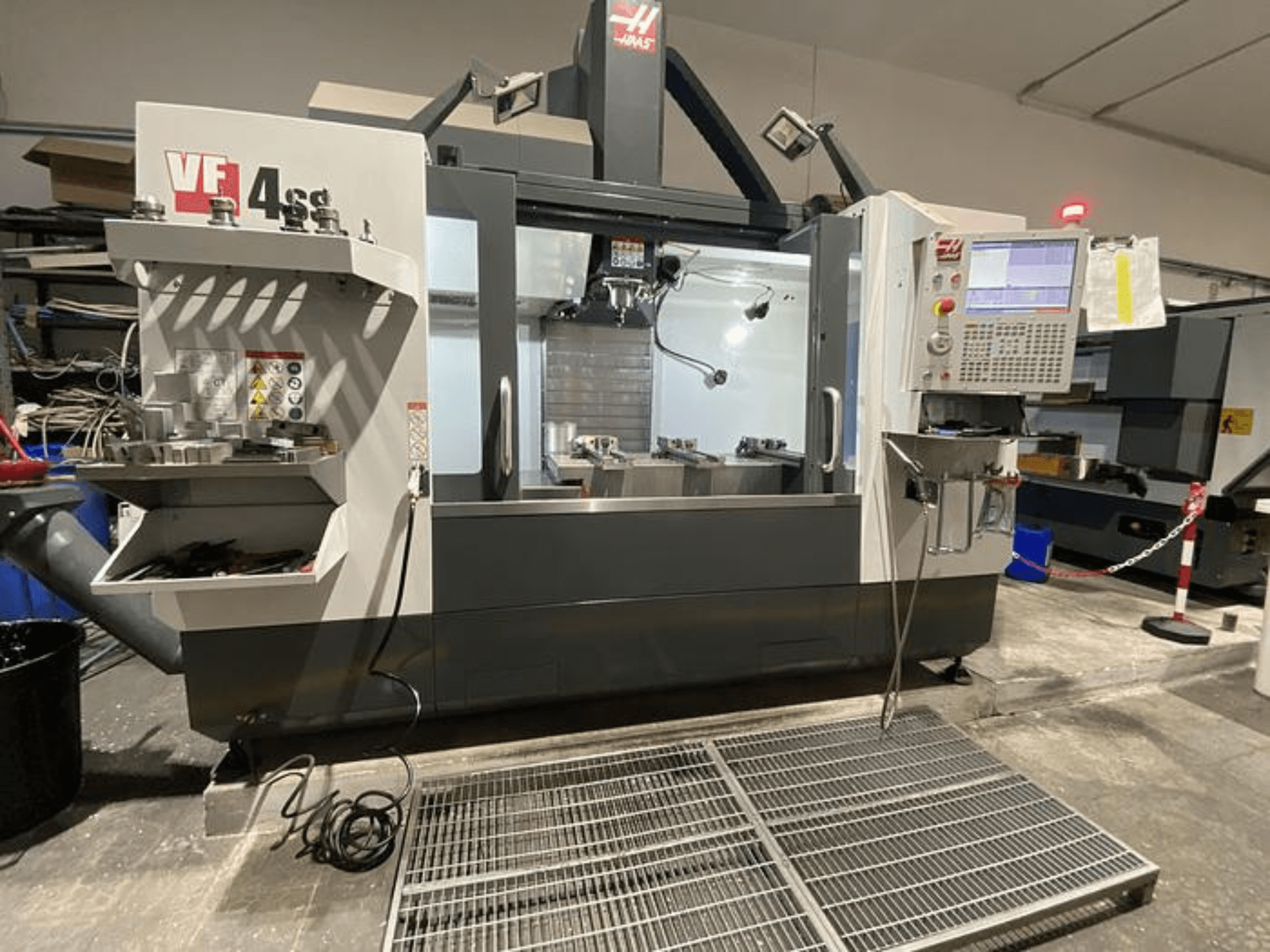

This 4-axis HAAS VF-4SS vertical machining center was manufactured in 2019. It features a 1270 mm X-axis travel, 508 mm Y-axis travel, and 635 mm Z-axis travel. With a maximum spindle speed of 12,000 rpm and spindle power of 22.4 kW, it ensures robust performance. Maximum table load capacity is 794 kg. If you are looking to get high-quality milling capabilities consider the HAAS VF-4SS machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - HAAS VF-4SS

Dimensions

Table Load: 794 kg

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 508 mm
Z-axis Travel: 635 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 2000 RPM

Additional Information

Spindle nose to table distance: 107–742 mm (min–max)
Spindle taper: CT 40
Maximum spindle torque: 122 Nm @ 2,000 rpm
Table size (L x W): 1321 x 495 mm
T-slots: 5 slots, 16 mm width, 80 mm spacing
Maximum feed rate (X/Y/Z): 35.6 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
