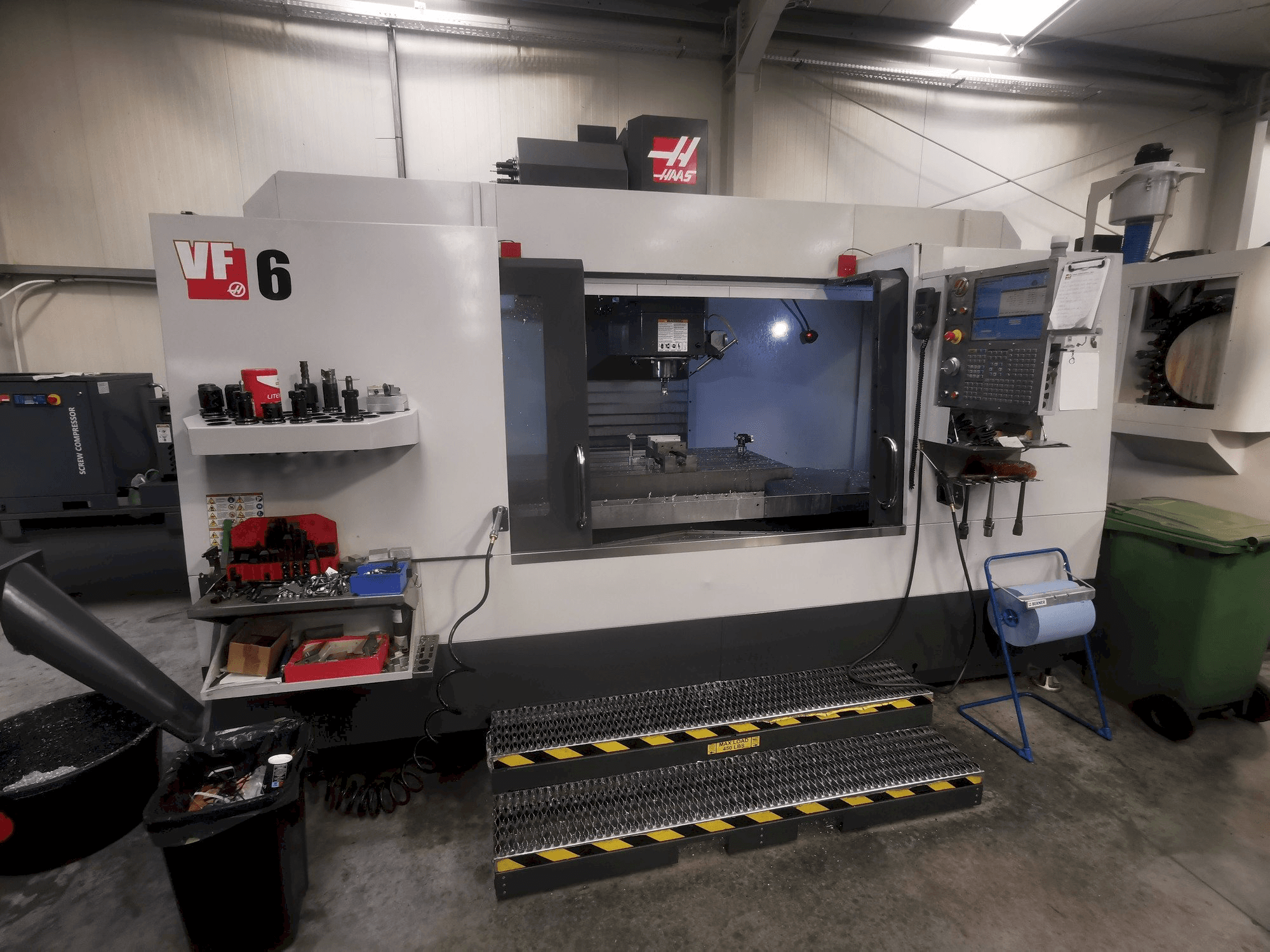

Front view of HAAS VF-6/40  machine

HAAS - VF-6/40PL-MIL-HAA-2015-00003

99,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis HAAS VF-6/40 vertical machining center was manufactured in 2015. It features a 24+1 side-mounted tool changer, 15.2 m/min rapid traverse, and a dual-axis tilting rotary table. Equipped with a high-capacity 360 L coolant system and a rigid tapping function, the HAAS VF-6/40 machine we have for sale is designed for precision and efficiency. For more information about this vertical machining center, please reach out to us.

Overview

  • brand: HAAS
  • year: 2015
  • MODEL: VF-6/40
  • production hours: 1316
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre

Technical Information - HAAS VF-6/40

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 22.4 kw
  • Tool taper: CT or BT 40

Movement

  • X-AXIS Movement: 1626 mm
  • X-AXIS Working Feed: 12.7 m/min
  • X-AXIS Feed Force: 12.7 m/min
  • X-AXIS Rapid traverse: 15.2 m/min
  • Y-AXIS Movement: 813 mm
  • Y-AXIS Working Feed: 12.7 m/min
  • Y-AXIS Feed Force: 15124 N
  • Y-AXIS Rapid traverse: 15.2 m/min
  • Z-AXIS Movement: 864 mm
  • Z-AXIS Working Feed: 12.7 m/min
  • Z-AXIS Feed Force: 24910 N
  • Z-AXIS Rapid traverse: 15.2 m/min

Table

  • Outer length: 1626 mm
  • Outer width: 711 mm
  • TSlots size: 16mm
  • Number of tslots: 5
  • Distance between: 125 mm
  • Table load: 1850 kg

Tools

  • Max weight: 5.4 kg

    Additional Equipment

    • - Spindle with 2-speed gearbox increasing speed to 10000 rpm [10K-40T-IN]
    • - 4-axis drive and wiring for rotary tables [4AXD]
    • - 5-axis drive and wiring for rotary tables [5AXD]
    • - Tool probe for measuring tool length and part probe for measuring part length (both probes are used for referencing on the table) [WIPS-R]
    • - Dual-axis tilting rotary table 210 mm [TR210]
    • - Tailstock 6 [HTS6]
    • - 8" three-jaw chuck by Haas [LC8-B]
    • - 750 MB extended memory
    • - Technology package

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Power on time: 6545 h
        • - Cycle time: 1793 h
        • - Tool magazine type: smtc
        • - Number of tools in magazine: 24+1
        • - Average tool change time: 2. 8 s
        • - Maximum tool diameter with empty adjacent pocket and full pocket: 152 mm, 76 mm
        • - Power supply: machine: 3 x 400 v, 35 a, 20 kw
        • - Cnc control: 240 v
        • - Pneumatic supply: capacity 113 l/min, pressure 6. 9 bar
        • - Coolant tank capacity: 360 l
      • Qualitative Machine Benefits:
        • - Automatic screw conveyor chip removal
        • - Programmable coolant nozzle
        • - Color remote control panel
        • - Power failure detection module
        • - 1 gb program memory
        • - 15" color lcd monitor
        • - Usb port
        • - Memory lock switch
        • - Rigid tapping function
        • - 360 l coolant system

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
