➤ Used HAAS VF-8/40 For Sale | gindumac.com

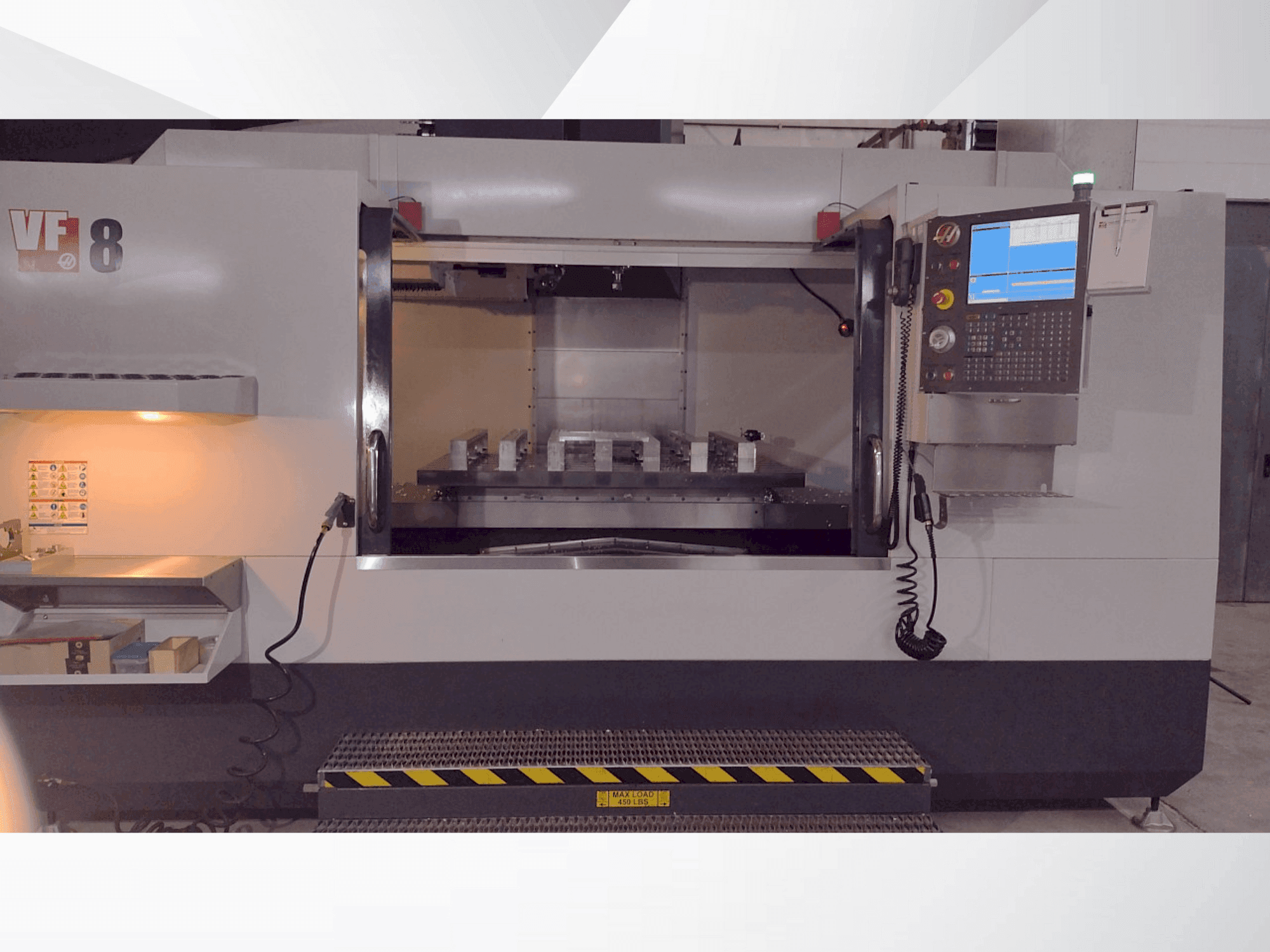

This 3-axis HAAS VF-8/40 vertical machining center was manufactured in 2014. It features a robust spindle with a maximum speed of 8100 rpm and a power rating of 22.4 kW, ensuring high-performance machining. The machine accommodates a maximum table load of 1814 kg and offers rapid movements up to 15.2 m/min on all axes. If you are looking to get high-quality milling capabilities, consider the HAAS VF-8/40 machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2014
MODEL: VF-8/40
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-8/40

Control Unit

Control Brand: HAAS
Control Model: RJH-C

Dimensions

Table Length: 1626 mm
Table Load: 1814 kg
Table Width: 914 mm

Movement

Number of Axes: 3
X-axis Travel: 1626 mm
Y-axis Travel: 1016 mm
Z-axis Travel: 762 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Number of Tools: 24
Spindle Power: 22.4 kW
Spindle Speed: 8100 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Torque: 122 nm
Max. Cutting: 12. 7 m/min
Max. Thrust x: 15124 n
Max. Thrust y: 15124 n
Max. Thrust z: 24910 n
Coolant capacity: 360l
Programmable coolant nozzle

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
