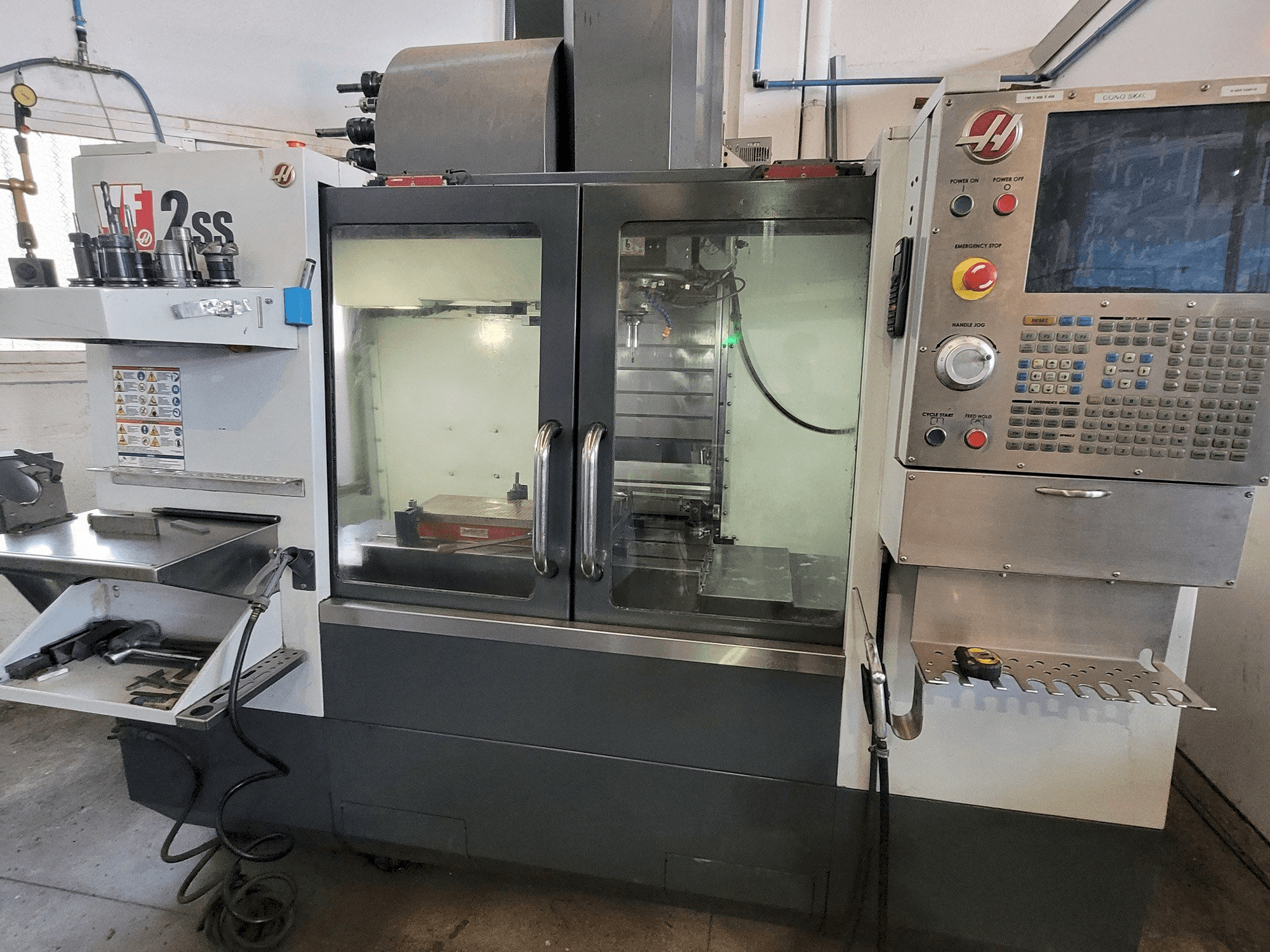

Front view of HAAS VF2SS  machine

HAAS VF2SS

HAAS - VF2SS

2015

41,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS VF2SS Vertical Machining center was manufactured in the year 2015 and has 7451 hours, of which 2748 are spindle hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: HAAS
  • year: 2015
  • MODEL: VF2SS
  • production hours: 7451
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: ES-MIL-HAA-2015-00004

Technical Information

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 406 mm
  • Z-AXIS Movement: 508 mm

Tools

  • Type of tool holder: SK40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Nose of spindle to table (~ max. ) 610 mm
      • - Spindle nose to table (~ min. ) 102 mm
      • - Max. Torque 122. 0 nm @ 2000 rpm, length 914 mm , width 356 mm
      • - T-slot width 15. 90 mm to 16. 00 mm
      • - Wheelbase with t-slot 125 mm
      • - Number of standard t-slots 3
      • - Max. Table weight (evenly distributed) 680 kg
    • Qualitative Machine Benefits:
      • - Extended hard disk
      • - Programmable cooling
      • - High-speed parameters
      • - Chip extractor
      • - Renishaw probe
      • - Extended m functions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
