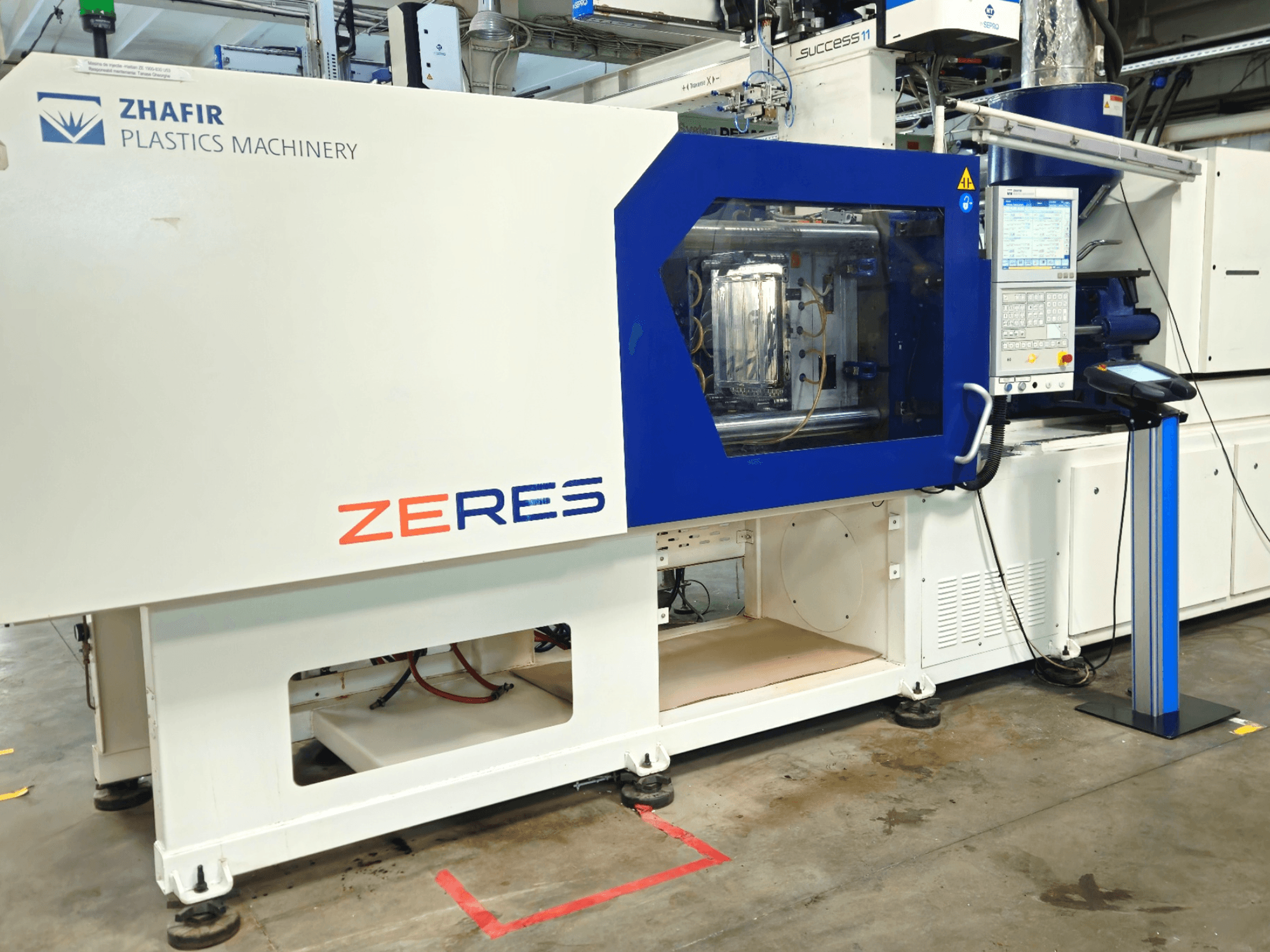

Zhafir Zeres injection molding machine in front view, featuring control panel and transparent molding area.
Zhafir Zeres injection molding machine in front view, featuring control panel and transparent molding area.

Thank you for your visit

This machine was recently sold.

Browse similar machines

HAITIAN - ZE1900 RO-INJ-HAI-2019-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAITIAN ZE1900 was manufactured in 2019. It features a clamping force of 1900 kN, a maximum injection volume of 412 cm³, and a screw diameter of 50 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the HAITIAN ZE1900 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: HAITIAN
  • year: 2019
  • MODEL: ZE1900
  • production hours: 20270
  • application type: Injection Moulding
  • Location: Romania
  • machine type: Electrical Injection Moulding Machine

Technical Information - HAITIAN ZE1900

Dimensions

  • Machine Height: 2160 mm
  • Machine Length: 5871 mm
  • Machine Weight: 9300 kg

Technical Specification

  • Clamping Force: 1900 kN
  • Screw Diameter: 50 mm

Additional Information

  • Maximum injection volume: 412 cm³

  • Mold height (min/max): 200 / 550 mm

  • Opening stroke: 1,020 mm

  • Platen dimensions (W × L): 790 × 840 mm

  • Tie-bar distance: 570 × 520 mm

  • Motor power: 45 kW

  • Heater power: 20.2 kW

  • Electrical connection pins: 32

  • Injection nozzle radius (tip): R10

  • Centering ring diameter: 160 mm

  • Operating hours: 20,207 h

  • Condition: Excellent

  • Status: In production

Additional equipment

  • Robot (included)

  • Robot interface: Euromap 67

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
