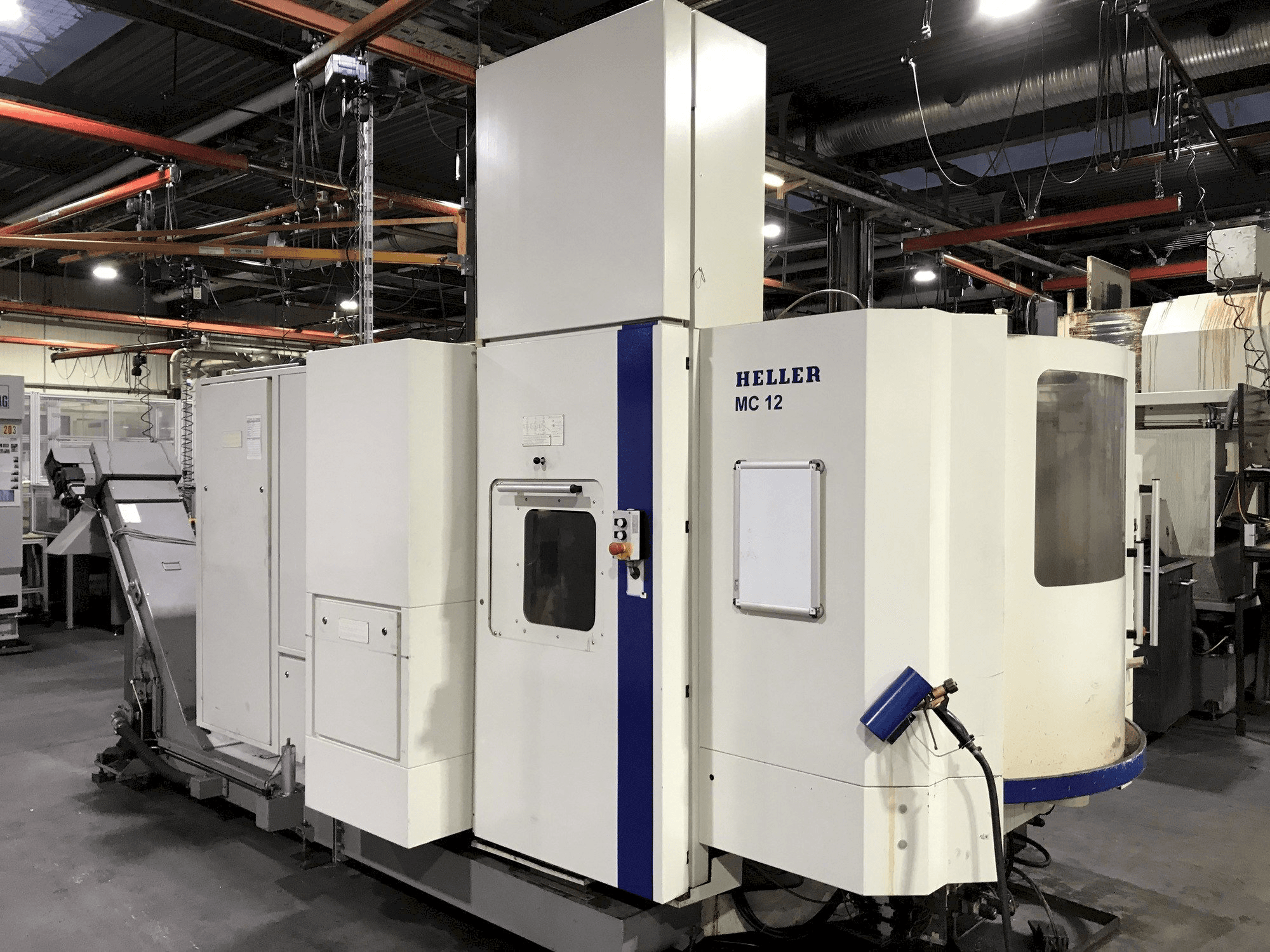

Front view of HELLER MC 12  machine

HELLER MC 12

HELLER - MC 12

2004

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HELLER MC 12 Horizontal Machining Center was made in 2004 in Germany. Equipped with a Siemens Sinumeric 840 D control unit. This machine works with a spindle speed between 45 - 12000 rpm and a tool taper HSK 63.

Overview

  • brand: HELLER
  • year: 2004
  • MODEL: MC 12
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: DE-MIL-HEL-2004-00001

Technical Information

General Data

  • Measurements width: 6300 mm
  • Measurements depth: 2600 mm
  • Measurements height: 3100 mm
  • Machine weight: 8000 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumeric 840 D

Main drive

  • Number of spindles: 1
  • Spindle speed range: 45 - 12000 1/MIN
  • Tool taper: HSK 63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 560 mm
  • X-AXIS Feed Force: 6000 N
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Feed Force: 6000 N
  • Z-AXIS Movement: 510 mm
  • Z-AXIS Feed Force: 6000 N

Table

  • Outer length: 400 mm
  • Outer width: 400 mm

Tools

  • Slots in storage: 42
  • Max weight: 8 kg
  • Max tool length: 300 mm

Media

  • Main electronic connection: 400 V / 50 Hz

    Additional Equipment

    • - All linear axes with direct measuring system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Rapid feed b 50 m/min
        • - Coolant reservoir content 1100 l
        • - Chip conveyor discharge height 1200 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
