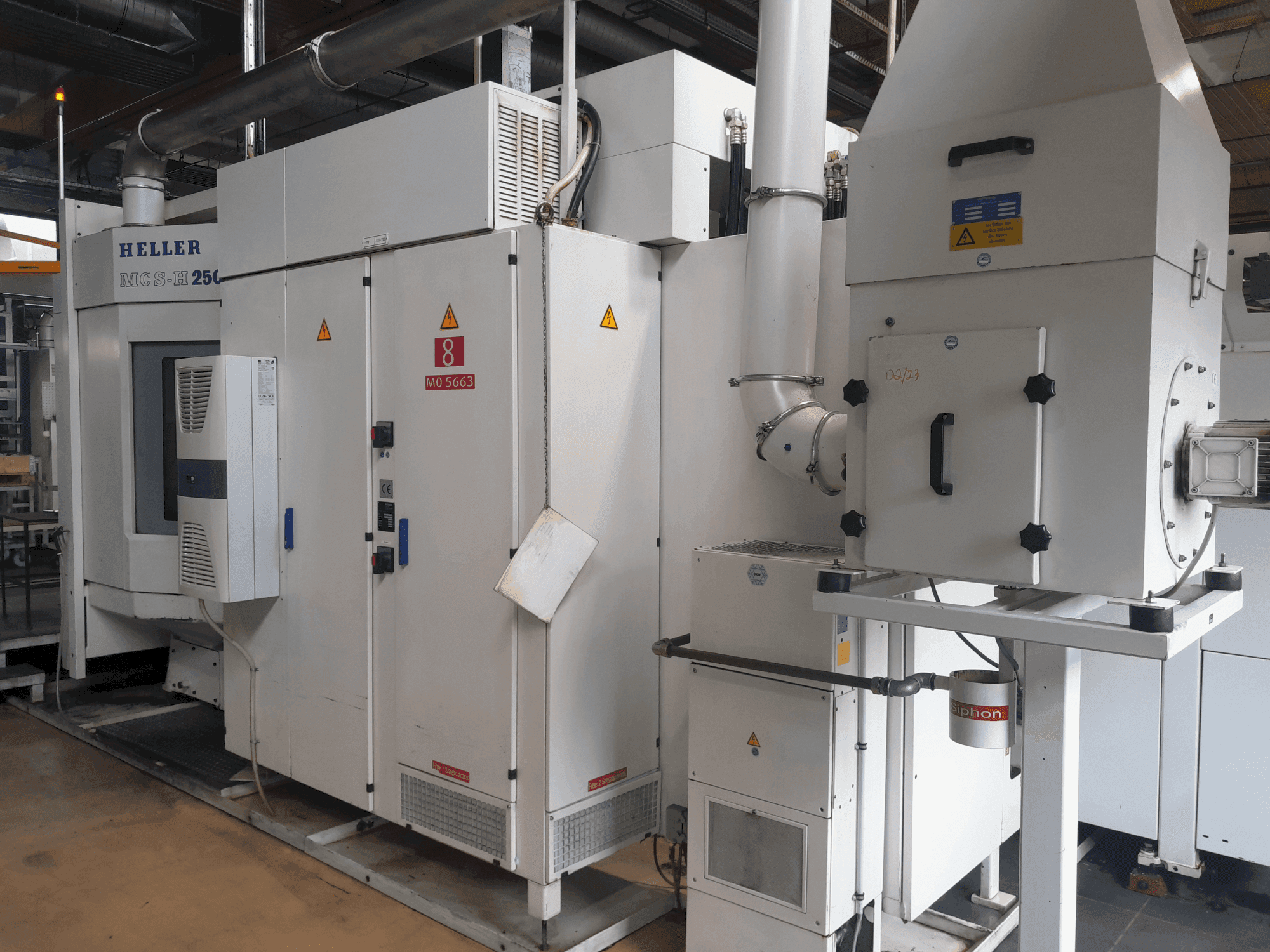

HELLER MCS-H 250

Photo Gallery

HELLER - MCS-H 250DE-MIL-HEL-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER MCS-H 250 For Sale | gindumac.com

This 4-axis HELLER MCS-H 250 was manufactured in 1998. A robust horizontal machining centre, it offers reliable performance for diverse machining needs. Consider the opportunity to buy this HELLER MCS-H 250 horizontal machining centre. Contact us for more information.

Overview

brand: HELLER
year: 1998
MODEL: MCS-H 250
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre

Technical Information - HELLER MCS-H 250

General Data

Machine weight: 20500 kg

Main drive

Spindle motor power: 400 V, 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits

Production hours: approximately 56025 hours (first unit), 68300 hours (second unit)
Noise level: 73. 8 db(a)
Working range: x-axis (longitudinal stroke): 800 mm /y-axis (vertical stroke): 800 mm /z-axis (transverse stroke): 970 mm
Rotary indexing table: part accuracy: ±3 arc seconds /max clamping weight: 800 dan (center) /max tangential torque: 20000 nm (locked) /max tilting torque: 18000 nm (locked)
Pallet changer: pallet size: 500 x 630 mm (din 55201-a1) /fastening: 33 x m12 screws
Tool magazine: 3 cassette slots + 1 set-up slot / tool holder: sk 50 / max tool diameter: 100 mm (occupied), 270 mm (with free space) / max tool length: 450 mm/ max tool weight: 25 dan
Main spindle: speed range: 45-6000 rpm (infinitely variable) / drive power: 36 kw (from 500 rpm, 40% ed) /max torque: 688 nm (40% ed)/ feed speed: up to 24000 mm/min / feed forces: x/y-axis 15000 n, z-axis 20000 n
Measuring system: direct measurement in x-y-z-axis / position tolerance: 0. 010 mm / resolution: 0. 2 µm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
