Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
HERMLE - C 800 VDE-MIL-HER-2002-00003
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HERMLE C 800 V For Sale | gindumac.com

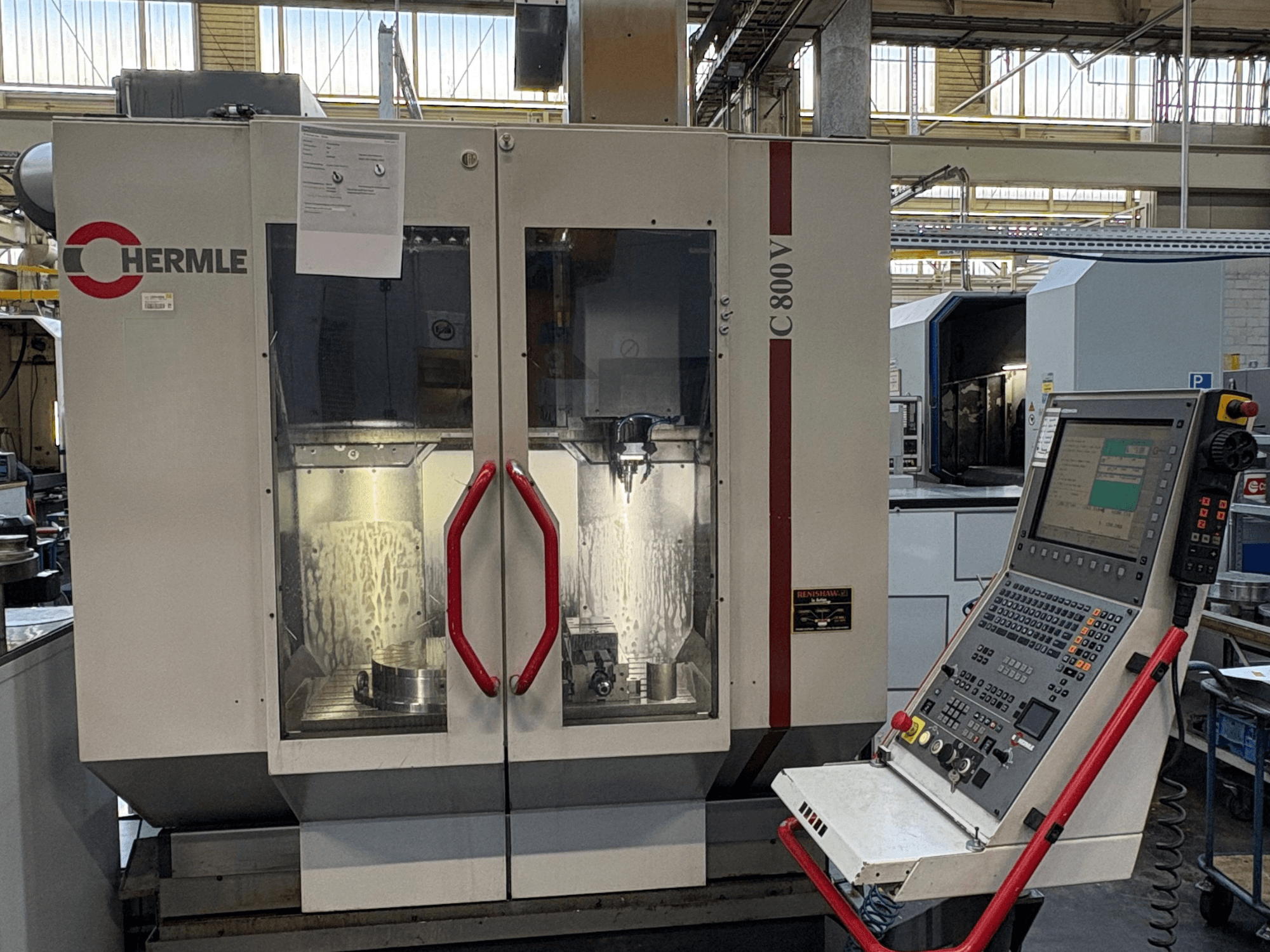

This 3-axis HERMLE C 800 V was manufactured in 2002. It features a spindle speed range of 20 to 10,000 rpm and a spindle power of 25 kW. The machine has a net weight of 7,000 kg and includes additional equipment such as a cooling unit and a jib crane. If you are looking to get high-quality machining capabilities, consider the HERMLE C 800 V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HERMLE
- year: 2002
- MODEL: C 800 V
- production hours: 35816
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 800 V
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Weight: 7000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 16.8 kW
- Spindle Speed: 10000 RPM
Additional Information
- Control Unit: Heidenhain (Control On: 114,325 hours)
- Machine On Time: 111,736 hours
- Program Run Time: 40,346 hours
- Spindle On Time: 35,816 hours
- Drive On Time: 76,783 hours
- Axes In Motion: 37,963 hours
- Operation Voltage: 400 V / 3 ~
- Frequency: 50 Hz
- Control Voltage: 24 V =
- Total Nominal Current: 63 A
- Total Rating: 43 KVA
- Spindle Speed Range: 20 to 10,000 rpm
- Spindle Diameter at Front Bearing: 70 mm
- Tool Taper/Spindle Interface Options: HSK A63 (DIN 69063)
- Tool Clamping Retention Force (HSK A63): 18 kN
- Spindle Power (40% / 100% ED): 25 / 16.8 kW
- Spindle Torque (40% / 100% ED): 159 / 107 Nm
- Maximum Spindle Speed with Open Guard Doors: 3,000 rpm
- Additional Equipment Included:
* Cooling Unit / Chiller (FLKS 170)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
