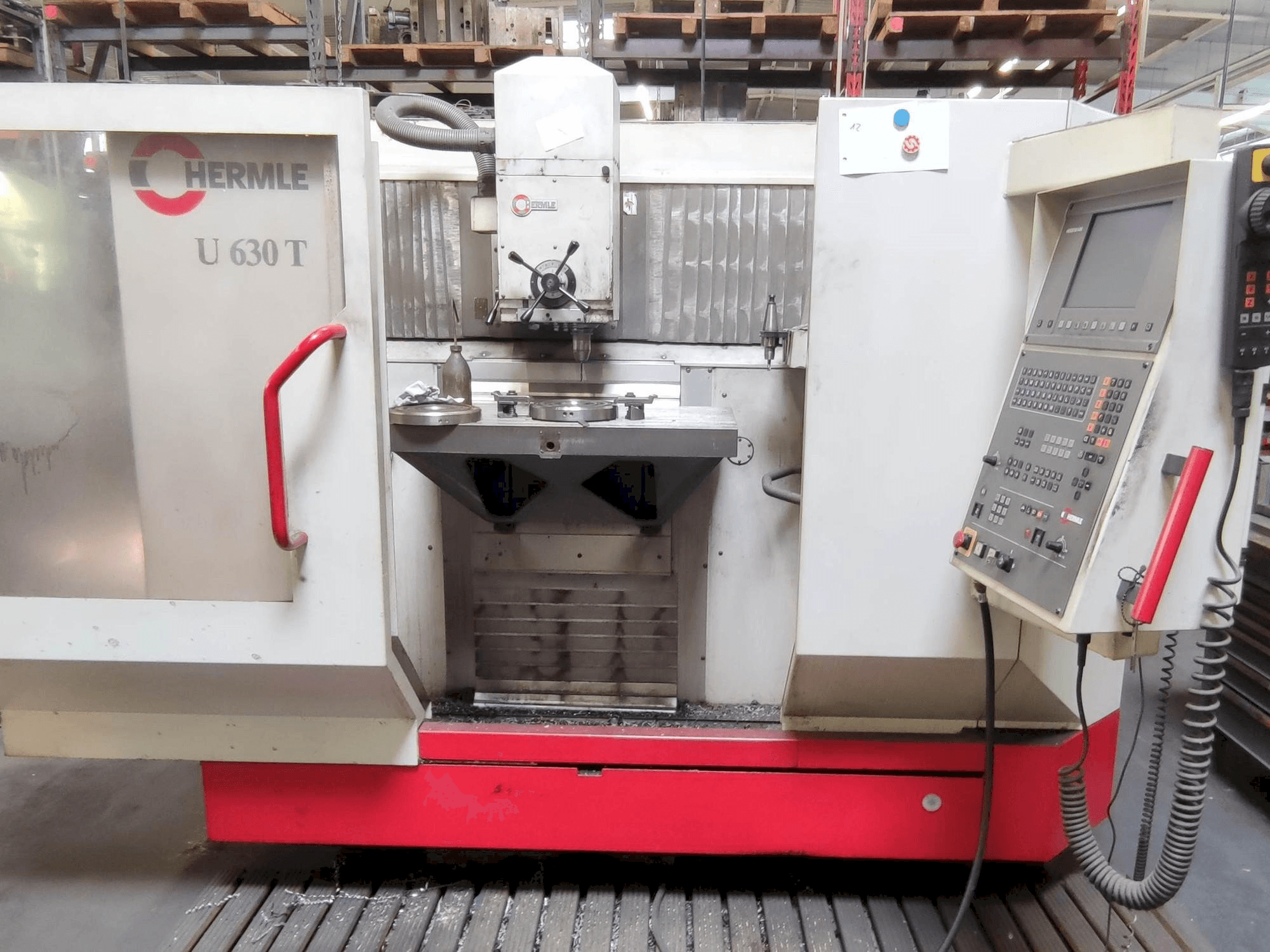

HERMLE U 630 T Vertical Machine Center

This HERMLE U 630 T Vertical Machine Center was manufactured in 2000. This 3 axis machine is equipped with a Heidenhain TNC 630 T – MA control unit and a manually swivelling vertical milling head. It work with 500 mm vertical movement.

Overview

brand: HERMLE
year: 2000
MODEL: U 630 T
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE U 630 T

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 630 T – MA

Dimensions

Machine Depth: 2350 mm
Machine Height: 238 mm
Machine Weight: 4800 kg

Movement

Number of Axes: 3
X-axis Travel: 630 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Additional Information

Additional equipment

approx. 10 x tool holder
clamping sleeves included

Machine Benefits

Qualitative Machine Benefits

Milling head: manually adjustable by means of hand crank / swivels 0-90
Spindle diameter at the front bearing: 55mm
Machine is technically and optically in a good condition
Fully functional

Technical Machine Benefits

Tool holder. Sh40 - quill (manual) at-75mm
Angle table: 105/605 mm
Nc rotary table: 110/610 mm
Spindle head swivelling: 0 - 90 ·
Slow movement: 630-875 mm
Transverse movement of the spindle slide: 500 mm
Vertical movement: 500 mm
Clamping flat angle table: 900 x 528 mm
Heidenhain - handling device - probe
16-fold - tool changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
