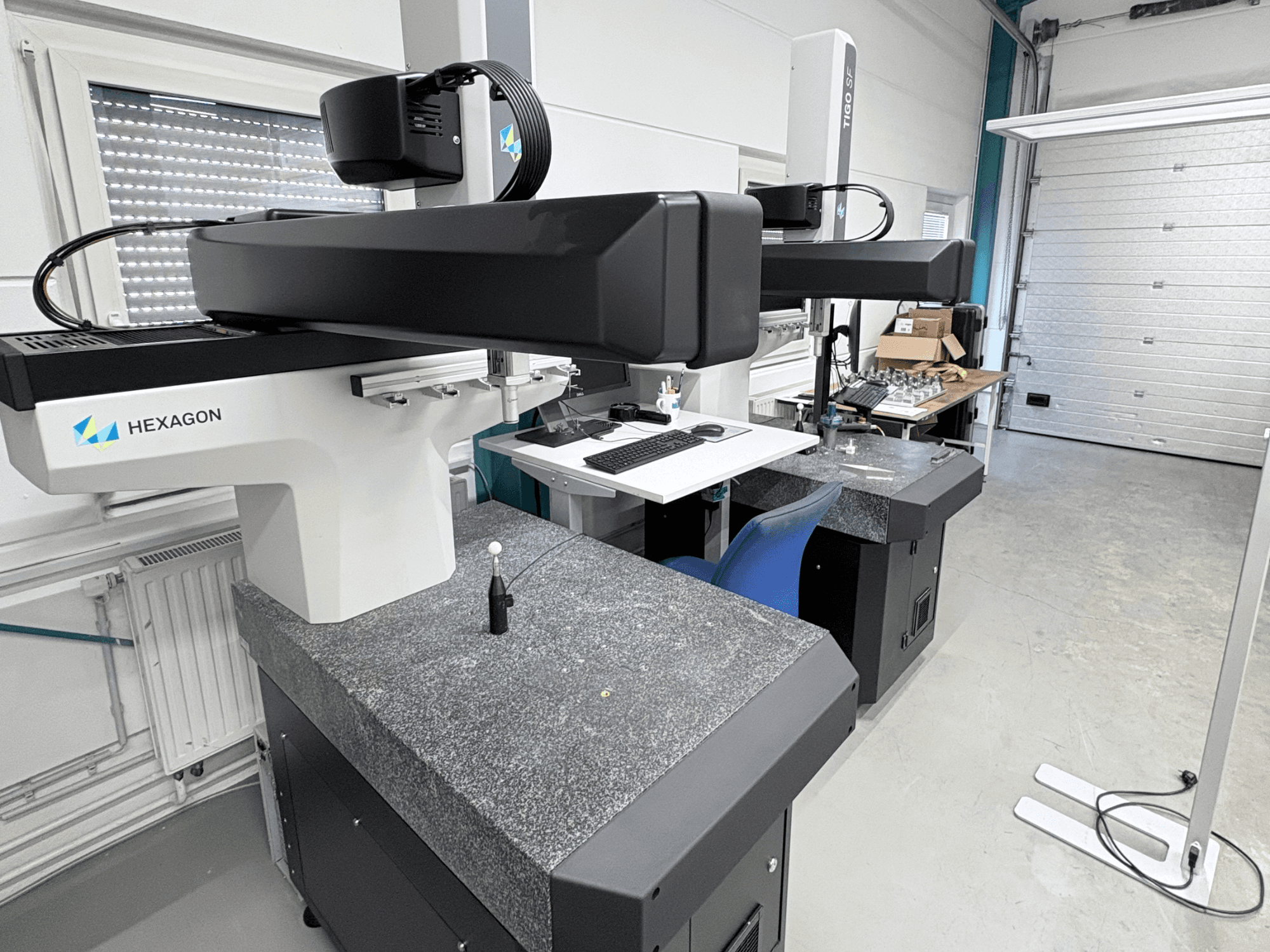

Hexagon - Tigo SF 05.06.05DE-MEA-HEX-2018-00001

- Machine Structure: Cantilever design with steel frame construction

- Overall Dimensions (X x Y x Z): 1110 x 1266 x 2414 mm

- Table Specifications: Granite measuring plate (fixed desk) with M8 x 1.25 threaded inserts, flatness according to DIN 876/II

- Guideways: High-precision linear ball bearing guideways

- Measuring System: METALLUR scale, resolution 0.039 µm

- Pinion/Ram Counterbalance: Steel spring

- Max. Workpiece Weight: 150 kg

- Compressed Air Requirements: No compressed air required (does not require compressed air, meaning no air compressor is needed!)

- Dynamics (3D Speed): Max. 520 mm/s

- Dynamics (3D Acceleration): Max. 1750 mm/s²

- Scanning Speed: Max. 300 mm/s

- Temperature Range for Guaranteed Uncertainty: 15 to 30 °C

- Operating Temperature Range: 10 to 45 °C

- Relative Humidity: 40% - 70% non-condensing

- Temperature Compensation: Multi-sensor temperature compensation technology

- Probe / Sensor Systems Compatibility: Equipped with LSP-X1c touch probe system (Max. probe weight: 33g; Max. probe length: Axial 125 mm, Lateral 60 mm); also compatible with TESASTAR-m M8 / TESASTAR-mp

- Controller & Operating System: All-in-one system with integrated PC and controller in the base, adjustable arm mount for screen, keyboard, and lightweight jogbox

- Advanced Software Modes: Fly2 Mode (trajectory optimization), Eco Mode (automatic shutdown)
