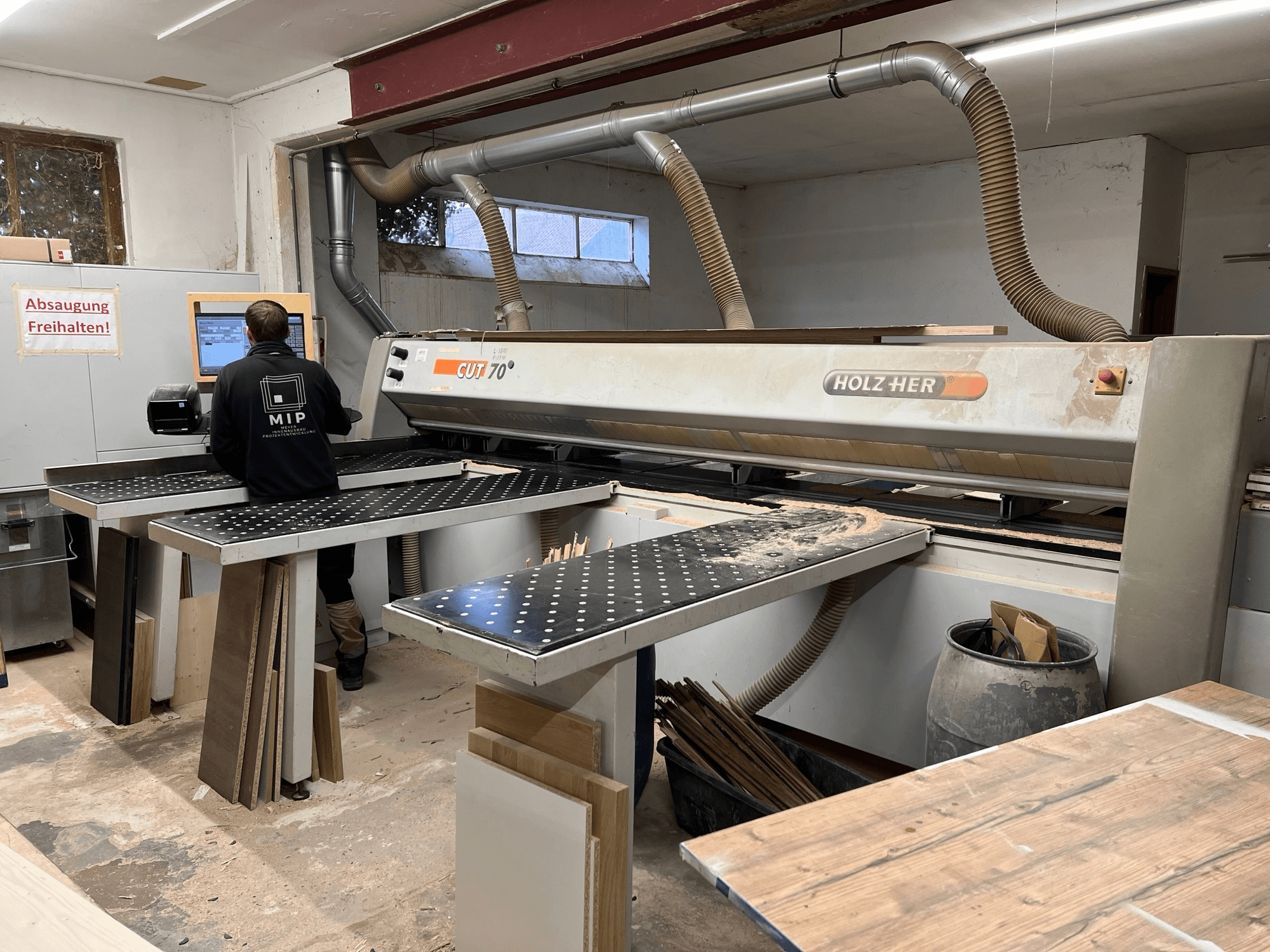

Holzher CUT 70 saw in a workshop, shown from the side, with a worker operating controls and wood panels on the tables.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HOLZHER CUT 70 6110

Photo Gallery

HOLZHER - CUT 70 6110DE-SAW-HOL-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used HOLZHER CUT 70 6110 - Saw For Sale | gindumac.com

This HOLZHER CUT 70 6110 panel saw was manufactured in 2009. It features a cutting size up to 3900 × 3900 mm, a maximum cutting height of 70 mm, and saw blade projection of 82 mm. The main sawing unit has a motor power of 11 kW and a blade diameter of 350 mm. It supports a saw carriage and pusher speed of 0–70 m/min. Consider the opportunity to buy this HOLZHER CUT 70 6110 panel saw. Contact us for more information.

Overview

brand: HOLZHER
year: 2009
MODEL: CUT 70 6110
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw

Additional Information

Workpiece
- Cutting size: 3900 × 3100 mm or 3900 × 3900 mm
- Max. cutting height: 70 mm
- Max. saw blade projection: 82 mm
Sawing Unit
- Motor power: 11 kW
- Saw blade Ø: 350 mm
- Rotational speed: 4070 rpm
Scoring Unit
- Motor power: 1.1 kW
- Saw blade Ø: 180 mm
- Rotational speed: 6070 rpm
Feed / Carriage
- Saw carriage & pusher speed: 0–70 m/min (continuous)
- Return speed: 70 m/min
- EU feed speed: 0–25 m/min
Media
- Compressed air: 6 bar, 32 NL per cutting cycle
- Dust extraction:
- Connections: 1×120 mm (base machine), 3×120 mm (pressure beam)
- Capacity: 4500 m³/h
- Air speed: 30 m/s
Additional Equipment
- Number of tables: 3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
