- ➤ Used HOMAG Brandt Profiline KDF - 780 | Edgebander

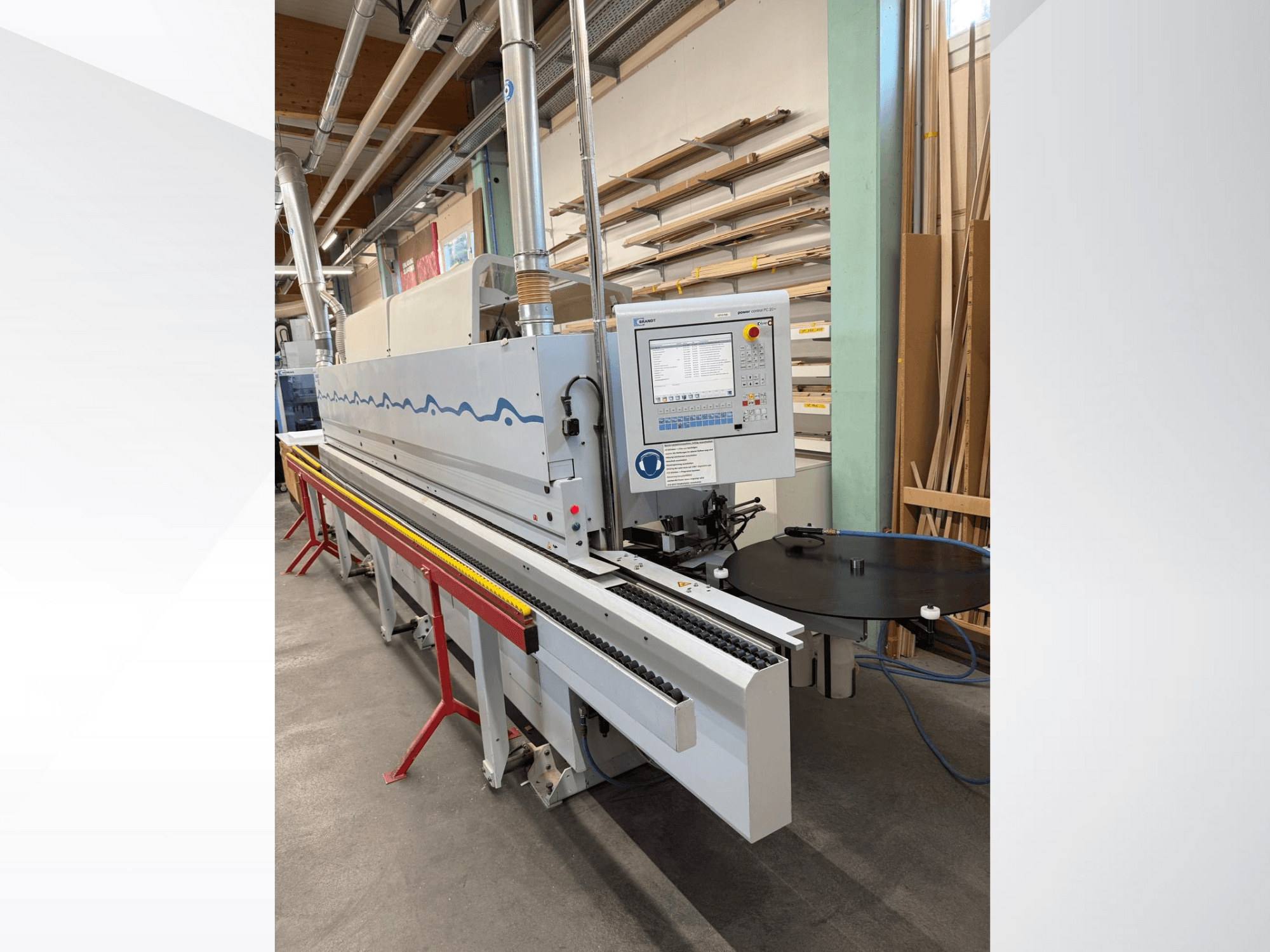

This HOMAG Brandt Profiline KDF - 780 was manufactured in 2006. It features a swiveling control panel, durable keypad, and a color graphic flat screen. The edgebander handles edge thickness from 0.4 to 12 mm and workpiece thickness up to 60 mm. Variable feed rate is 20 m/min. Overall length is 7360 mm. Contact us for more information about this machine.
Overview
- brand: HOMAG
- year: 2006
- MODEL: Brandt Profiline KDF - 780
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Additional Information
Edge thickness: 0.4 - 12 (15) mm
Roller diameter max.: 3 x 45 mm or 0.8 x 65 mm
Workpiece thickness: 8 - 60 mm
Variable feed rate: 20 m/min
Electrical connection: 400 V - 3 Ph. - 50 Hz
Pneumatic connection: 6 bar
Swiveling control panel at the machine inlet
Durable short-stroke membrane keypad
Color graphic flat screen
Industrial PC with CompactFlash disk for mass storage
Aggregate function keys with LED status indicator
Operator guidance via color pictograms
Online language switching between various foreign languages
Overall length: 7360 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
