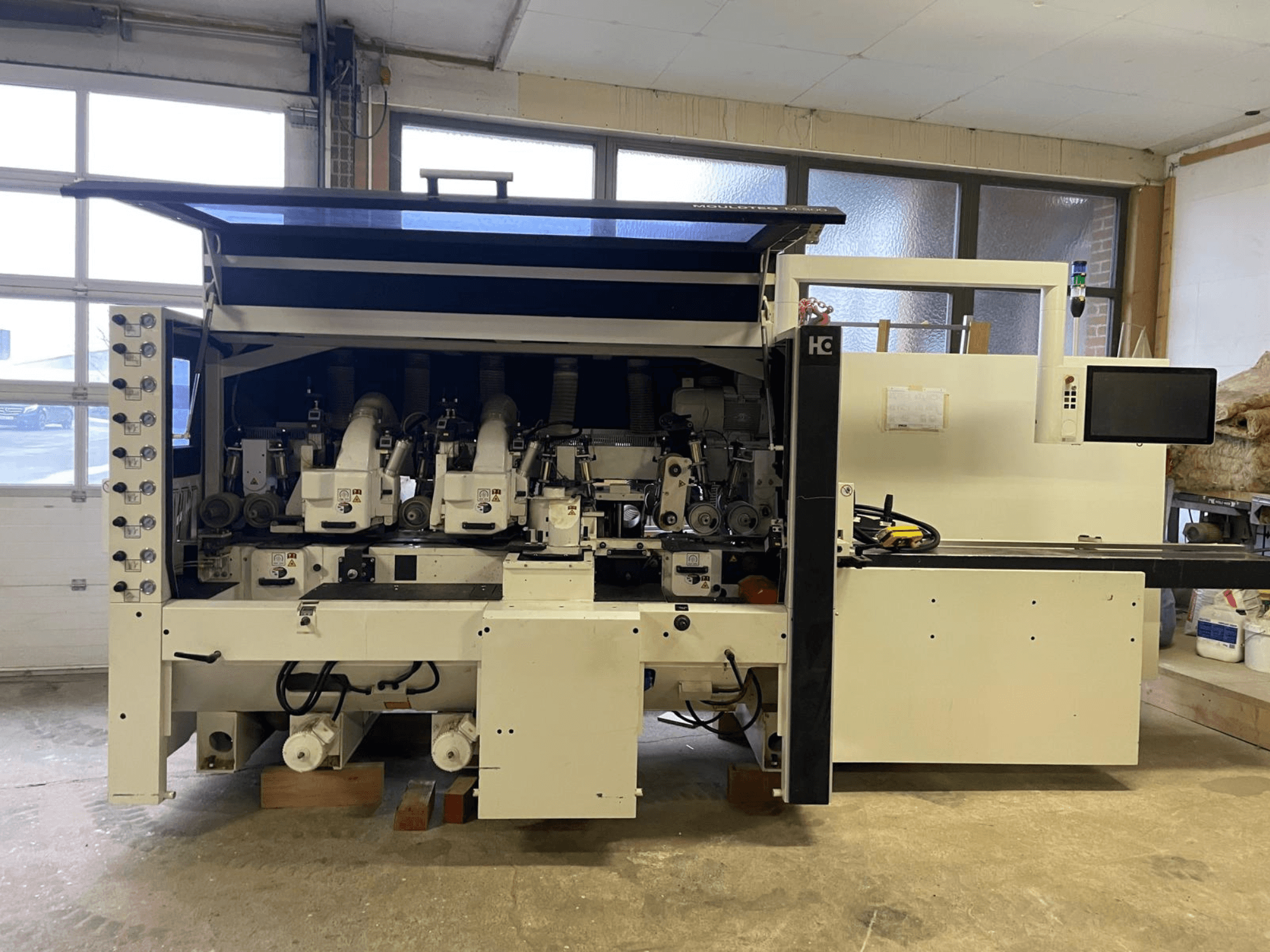

Häwa CNC machine, front view, features multiple spindles, control panel, and dust extraction hoses, suitable for wood processing.
Häwa CNC machine, front view, features multiple spindles, control panel, and dust extraction hoses, suitable for wood processing.

HOMAG - Optimat LPP306DE-MIL-HOM-2019-00001

63,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HOMAG Optimat LPP306 was manufactured in 2019. A used planing and profiling machine featuring six working spindles, it handles workpiece widths up to 250 mm and heights up to 160 mm. Equipped with PowerControl and powerTouch LPP300 for enhanced control, it offers feed speeds from 6 to 24 m/min. Spindle speeds are adjustable up to 8,000 rpm, ensuring versatility and efficiency in wood milling applications. Contact us for more information about this machine.

Overview

  • brand: HOMAG
  • year: 2019
  • MODEL: Optimat LPP306
  • application type: Milling (Wood)
  • Location: Germany
  • machine type: Wood Mill

Technical Information - HOMAG Optimat LPP306

Technical Specification

  • Spindle Speed: 8000 RPM

Additional Information

  • Workpiece width after processing: 10–250 mm

  • Workpiece height after processing: 10–160 mm

  • Control: PowerControl with powerTouch LPP300

  • Feed table length: 2,500 mm

  • Feed speed: 6–24 m/min

Spindles:

  • First lower spindle:

    • Motor power: 7.5 kW (Siemens IE3)

    • Speed: 6,000 rpm

    • Spindle diameter: 40 mm

    • Spindle length: 281 mm

  • First right spindle:

    • Motor power: 7.5 kW, speed continuously adjustable (Siemens IE3)

    • Speed range: 4,000–8,000 rpm

    • Spindle diameter: 40 mm

    • Spindle length: 176 mm

  • First left spindle:

    • Motor power: 7.5 kW, speed continuously adjustable (Siemens IE3)

    • Speed range: 4,000–8,000 rpm

    • Spindle diameter: 40 mm

    • Spindle length: 176 mm

  • First upper spindle:

    • Motor power: 7.5 kW, speed continuously adjustable (Siemens IE3)

    • Speed range: 4,000–8,000 rpm

    • Spindle diameter: 40 mm

    • Spindle length: 266 mm

  • Second upper spindle:

    • Motor power: 7.5 kW, speed continuously adjustable (Siemens IE3)

    • Speed range: 4,000–8,000 rpm

  • Second lower spindle:

    • Motor power: 7.5 kW, speed infinitely variable (Siemens IE3)

    • Speed range: 4,000–8,000 rpm

    • Spindle diameter: 40 mm

    • Spindle length: 266 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
