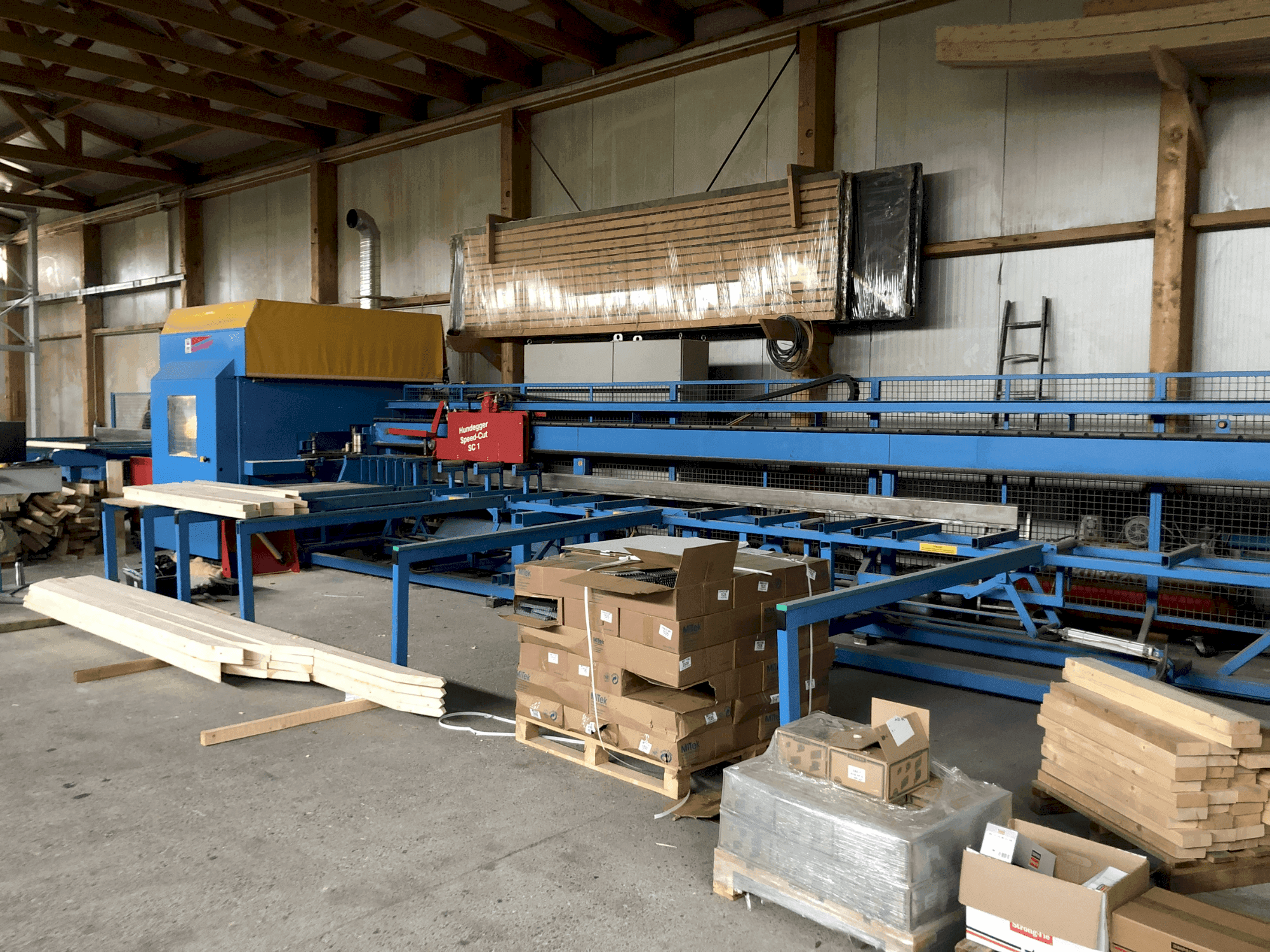

This 4-axis HUNDEGGER Speed-Cut SC1, manufactured in 2003, is a universal machine center that offers advanced wood processing capabilities. It features computerized cutting, drilling, and milling with a maximum cutting height of 160 mm and width of 450 mm. The machine is equipped with a programmable controller for saw blade adjustments and a pneumatic clamping system, ensuring efficient material handling. The robust 4-axis CNC control enhances precision in operations. For more information about this machine center, please reach out to us.
Overview
- brand: HUNDEGGER
- year: 2003
- MODEL: Speed-Cut SC1
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Wood Machining Centre
- availability: Immediately
Technical Information - HUNDEGGER Speed-Cut SC1
General Data
- Measurements width: 2510 mm
- Measurements depth: 1680 mm
- Measurements height: 2180 mm
- Machine weight: 8000kg aprox
Additional Equipment
- - 6-armed offload table
- - PC + Monitor
- - Electrical connection: 3x 63A, max. 15kW
- - Pneumatic connection 1/2", 9 bar at least 400l/min
- - Main supply line for pneumatics min. 3/4"
Additional Information
- Technical Machine Benefits:
- - The machine is capable of computerized cutting, drilling, and milling which allows for versatile wood processing.
- - It offers a high level of automation with programmable saw blade adjustments and a 4 axes cnc control enhancing precision.
- - Features such as a clamp gripper workpiece feed and pneumatic clamping system ensure efficient and secure handling of materials.
- - Max cutting height at 90°: 160 mm // max cutting width at 90°: 450 mm
- - Capable of processing dimensions from 12 x 40 mm to 160 x 450 mm
- - Number of saw blades: 1
- - Saw blade tiltable: yes // saw blade adjustment: programmable controller
- - Workpiece feed: clamp gripper
- - Clamping system: pneumatic
- - Positioning accuracy: +/- 0. 5 mm
- Qualitative Machine Benefits:
- - The machine's robust construction and high positioning accuracy of +/- 0. 5 mm ensure high-quality results and precision in woodworking.
- - Basic machine with saw station for 90° cross-cut operation
- - Angle and tilt drive for the saw station
- - 4-strand transverse feeder
- - Combination support for vertically operating tools
- - Drilling unit 2. 2 kw
- - Vertical milling unit 5. 5 kw
- - Revolver milling unit 3-fold
- - Marking device below
- - Machine is currently under power and operational.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
