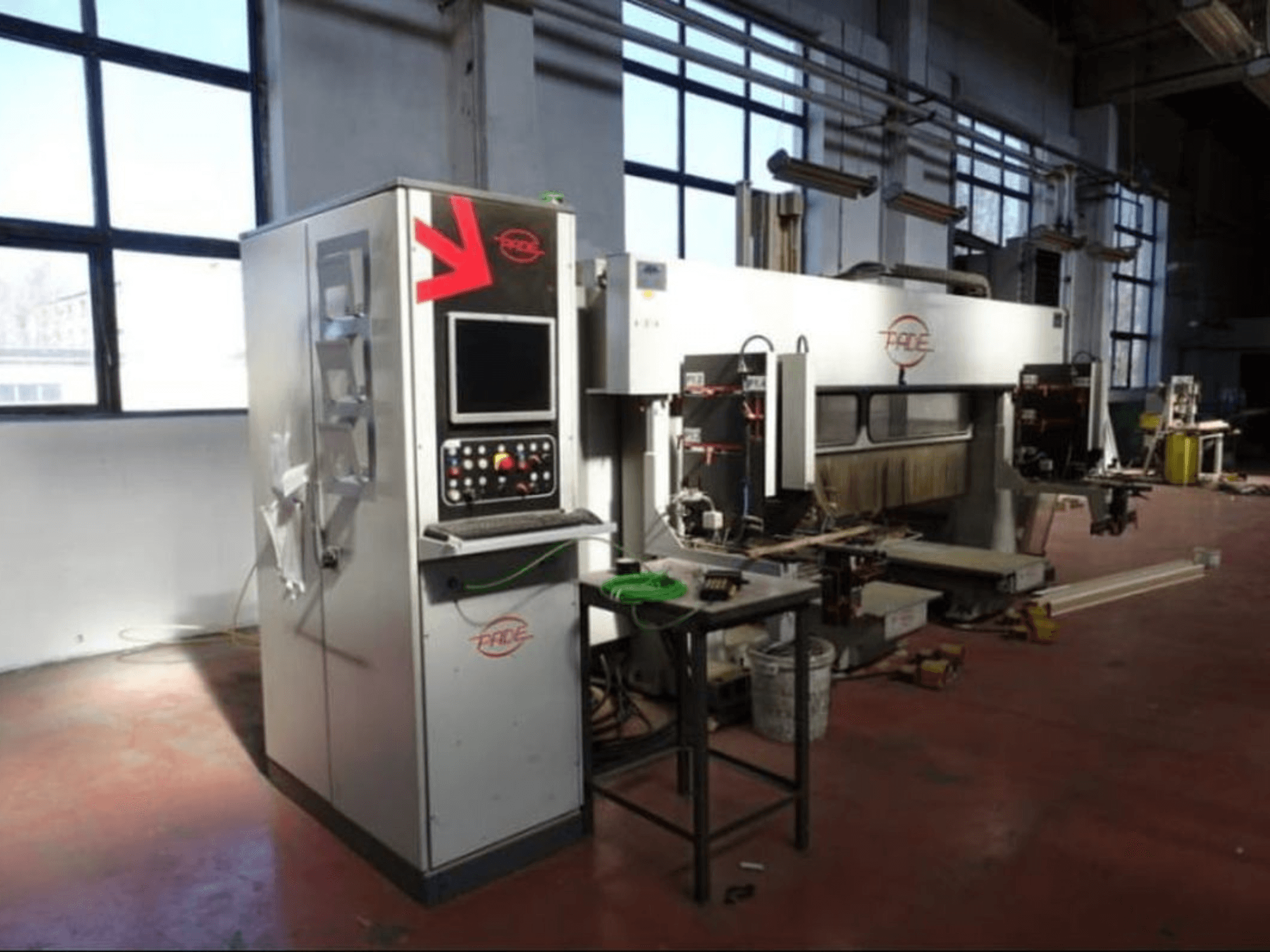

This 5-axis PADE VELUX CNC Wood Machining Centre was manufactured in 2011. It features an impressive X-axis travel of 3,550 mm, Y-axis travel of 1,800 mm, and Z-axis travel of 750 mm. The machine includes two tandem worktables with six pneumatic clamps, along with two electrospindles for enhanced performance. If you are looking to get high-quality wood machining capabilities, consider the PADE VELUX machine we have for sale. Contact us for further details.
Overview
- brand: PADE
- year: 2011
- MODEL: VELUX
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Wood Machining Centre
Technical Information - PADE VELUX
Movement
- Number of Axes: 5
- X-axis Travel: 3550 mm
- Y-axis Travel: 1800 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 18000 RPM
Additional Information
Worktables: 2 tandem worktables with 6 pneumatic clamps
A-axis: continuous rotation
C-axis: ±370° rotation
Rapid speeds: X 100 m/min; Y/Z 60 m/min
Tool positions: 2 + 2 with collet tool holders
Tool holder standard: EN430E / DIN 6499
Tool interface: cylindrical
Collet size: ER32 (tool diameter 1–20 mm)
Spindles: 2 electrospindles, 7.5 kW each
Operating air pressure: 6 bar
Compressed air consumption: 300 Nl/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
