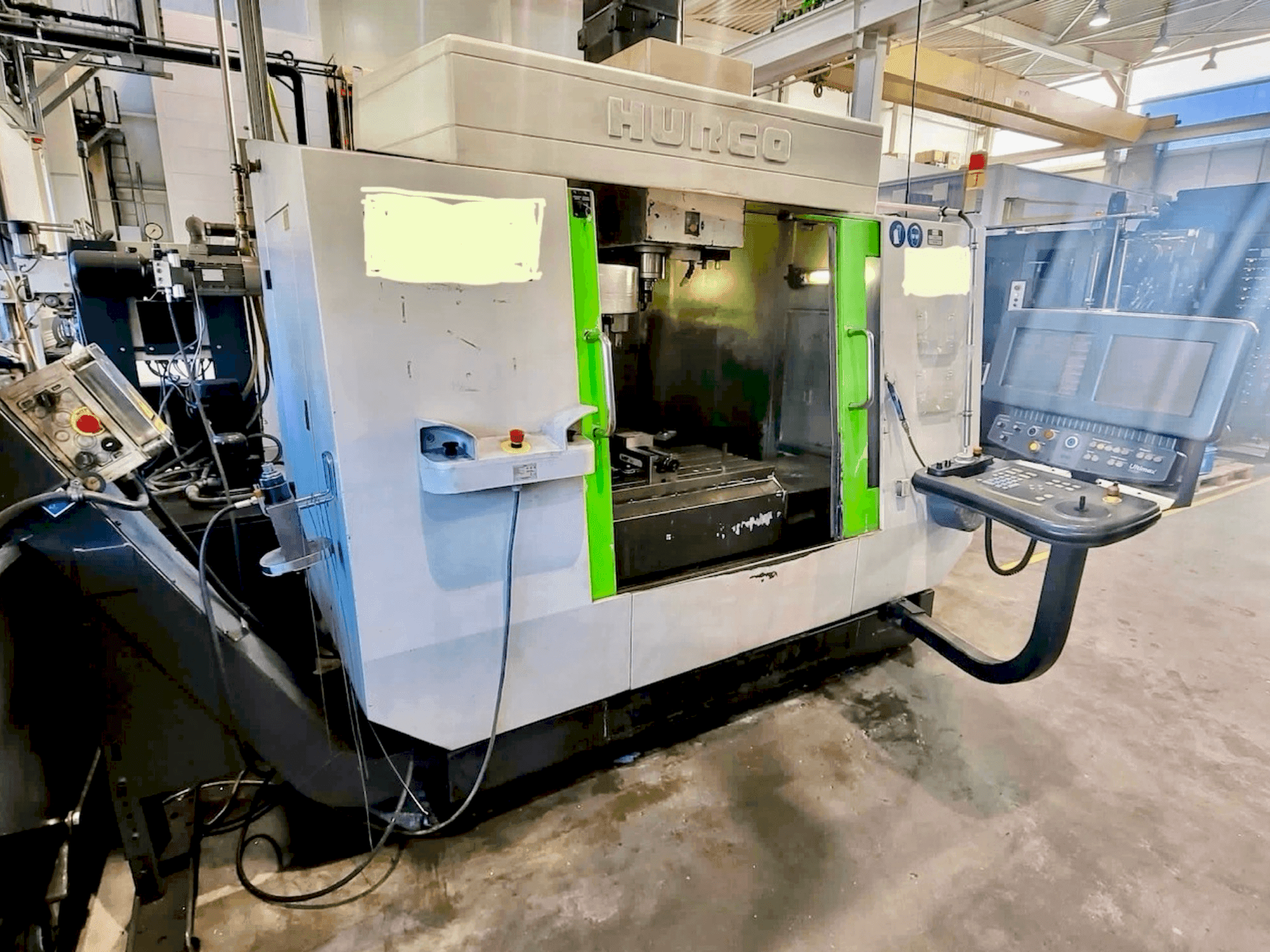

Front view of Hurco BCM4020  machine

Hurco - BCM4020AT-MIL-HUR-1998-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This Hurco BMC4020 Vertical Machining center was manufactured in the year 1998 in Taiwan. It is equipped with a Hurco Ultimax control unit and has 3 axis.


  • brand: Hurco
  • year: 1998
  • MODEL: BCM4020
  • application type: Milling
  • Location: Austria
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Hurco

Technical Information - Hurco BCM4020

General Data

  • Measurements width: 2320 mm
  • Measurements depth: 3350 mm
  • Measurements height: 2670 mm
  • Machine weight: 5600 kg

Control Unit

  • Brand: Hurco
  • Model: Ultimax

Main drive

  • Spindle motor power: 15 kW
  • Number of axis: 3


  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 610 mm


  • Workpiece weight: 682 kg


  • Outer length: 1220 mm
  • Outer width: 510 mm


  • Max weight: 7 kg
  • Type of tool holder: ISO 40

Additional Information

    Extra information

    • - Accessories: cooling lubricant tank, pumps for the external and internal pumps and pump for cooling lubricant recirculation Length of the worktable: 1220 mm Width of the worktable: 510 mm Travel of the X-axis: 1020 mm Travel of the Y-axis: 510 mm Travel of the Z-axis: 610 mm Spindle power: 15 kW Maximum workpiece weight: 682 kg Max. Tool weight: 7 kg Machine height: 2670 mm Machine length: 3350 mm Machine width: 2320 mm Machine weight: 5600 kg Control system: Hurco Ultimax Tool holder: ISO40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
