- Hurco VM 50/40T Vertical Machining Center

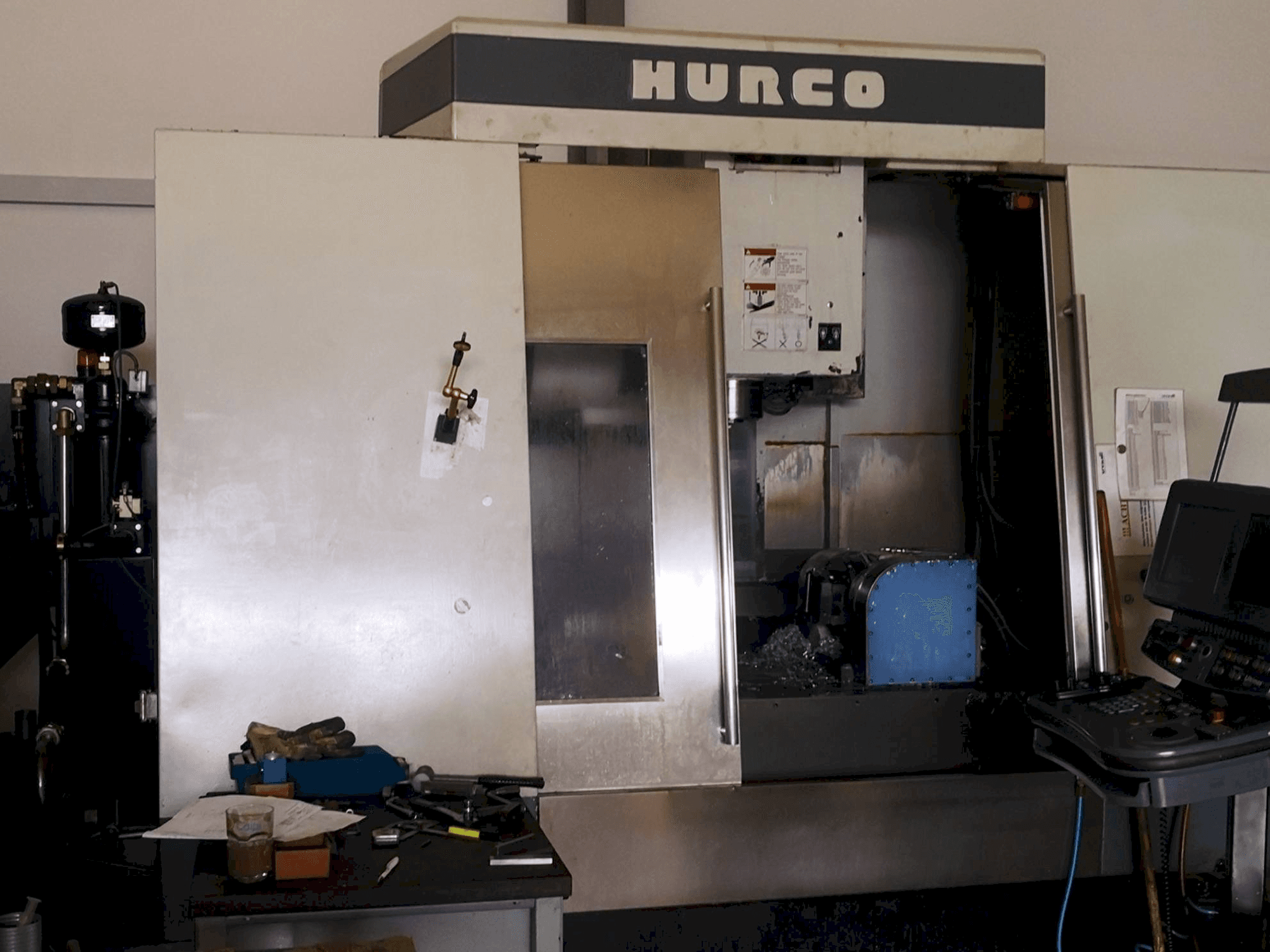

This Hurco VM 50/40T Vertical Machining Center was manufactured in the year 2005 in Taiwan. Equipped with a Hurco Ultimax 4 Control unit, this machine can operate with a spindle speed up to 10000 rpm. It presents perfectly good conditions, as it has always been regularly maintained.
Overview
- brand: Hurco
- year: 2005
- MODEL: VM 50/40T
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco VM 50/40T
Control Unit
- Control Brand: HURCO
- Control Model: Ultimax 4
Dimensions
- Machine Weight: 36287 kg
Movement
- X-axis Travel: 1270 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Large filter / water treatment plant. FA. KNOLL
- Stainless steel part cladding
- spindle cooler
- Spare spindle (for overhaul)
- Chip conveyor (scraper belt)
Machine Benefits
Qualitative Machine Benefits
- General overhauled main spindle
- New bearings for the ball screw spindle installed by hurco
- Read -dxf files
Technical Machine Benefits
- Tool change: 40 positions
- 5th axis of kitagawa
- Ikz: 20 bar
- Pocket milling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
