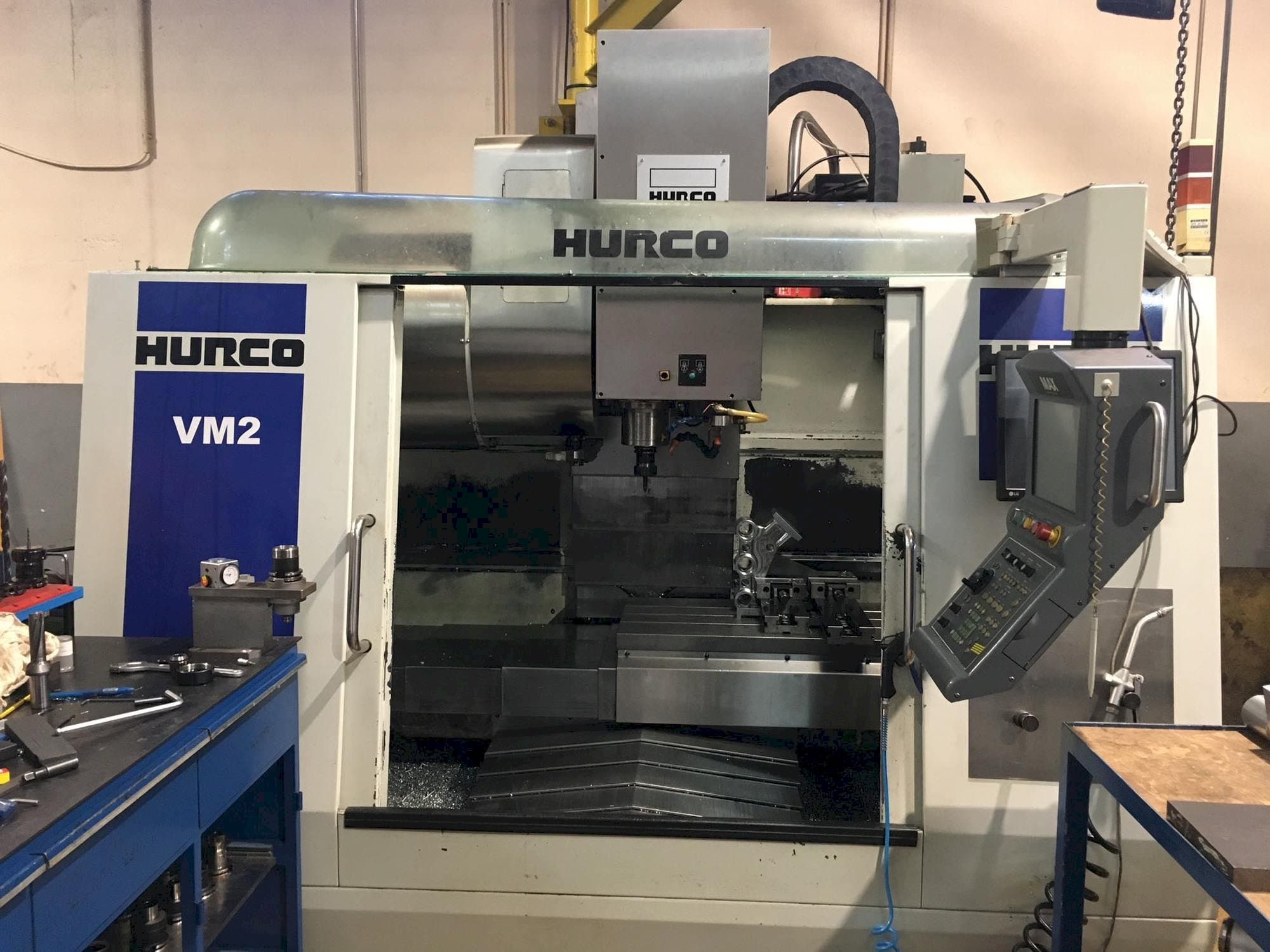

HURCO VM2 Vertical Machining center

This HURCO VM2 Vertical Machining center was manufactured in the year 2006. It is equipped with a Hurco MAX control control unit and has 3 axis. The machine has a spindle speed of 8000 rpm and a Tool Size DIN40.

Overview

brand: Hurco
year: 2006
MODEL: VM2
application type: Milling
Location: Portugal
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Hurco

Technical Information - Hurco VM2

General Data

Measurements width: 3600 mm
Measurements depth: 2700 mm
Measurements height: 2600 mm
Machine weight: 4090 kg

Control Unit

Brand: Hurco
Model: MAX control

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
X-AXIS Rapid traverse: 24 m/minute
Y-AXIS Movement: 457 mm
Y-AXIS Rapid traverse: 24 m/minute
Z-AXIS Movement: 457 mm
Z-AXIS Rapid traverse: 19 m/minute

Table

Outer length: 1168 mm
Outer width: 457 mm
Table load: 545 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min - max height under spindle 101 - 736mm
- - Power: 20hp
- - Tool change capacity 16 station
- - Tool size din40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
