Hurco VMX 30

Photo Gallery

Hurco - VMX 30AT-MIL-HUR-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

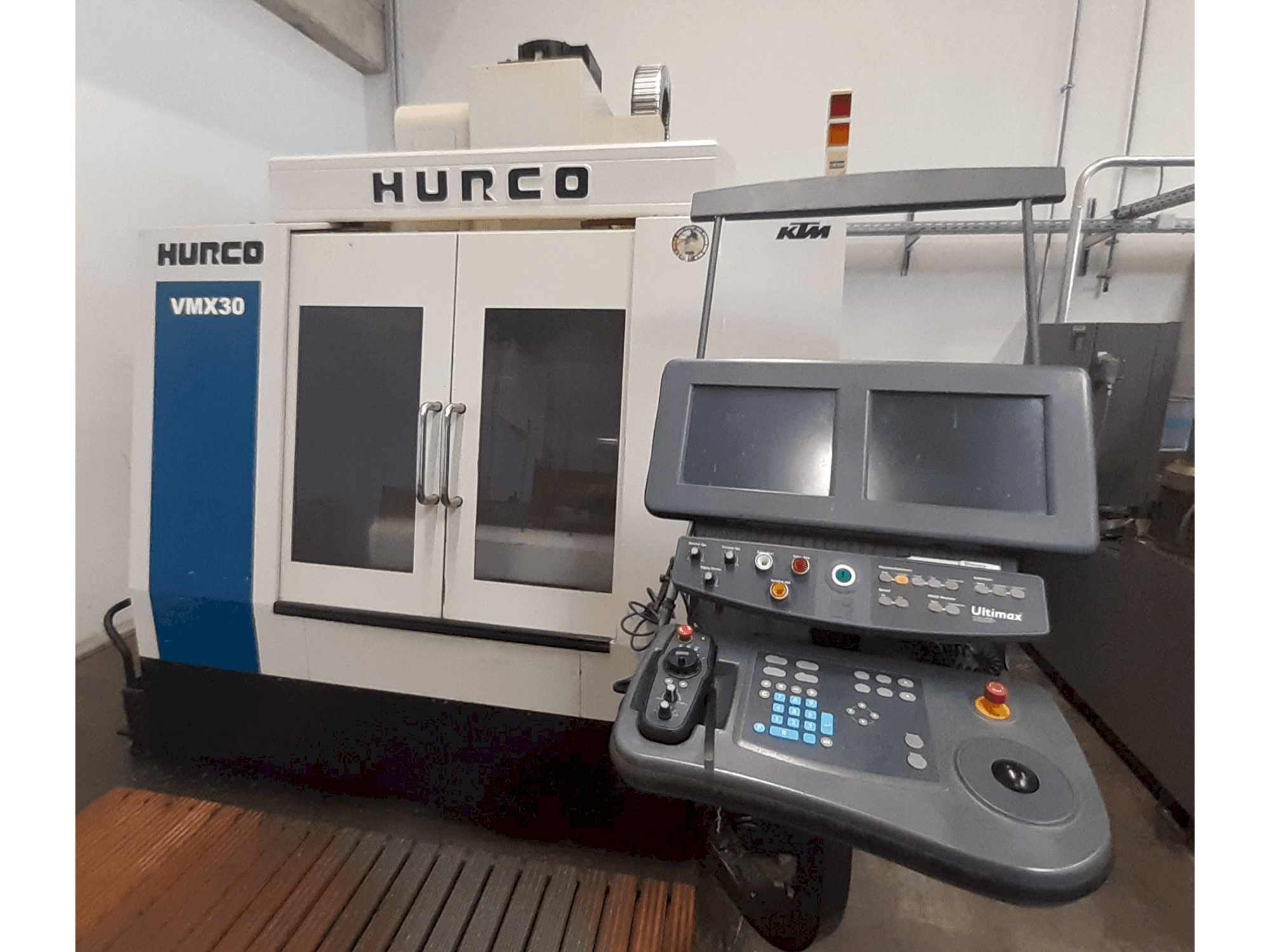

Hurco VMX 30 Vertical Machining Center was manufactured in Taiwan in 2003.

This Hurco VMX 30 Vertical Machining Center was manufactured in Taiwan in 2003. It has been working for 1648 hours. This 3 axis machine is operated through an Ultimaxx control unit. It works with a spindle speed up to 10000 rpm.

Overview

brand: Hurco
year: 2003
MODEL: VMX 30
production hours: 1648
application type: Milling
Location: Austria
machine type: Vertical Machining Centre

Technical Information - Hurco VMX 30

Dimensions

Table Length: 1020 mm
Table Load: 750 kg
Table Width: 510 mm

Movement

Number of Axes: 3
X-axis Travel: 760 mm
Y-axis Travel: 510 mm
Z-axis Travel: 610 mm

Technical Specification

Number of Tools: 6
Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Program resolution x, y, z axis: 0,001 mm
Program resolution a and b axis: 0. 002°
Programmable in dialog format: 3,0 - 7600 mm/min
About potentiometers: 3,0 – 11400 mm/min
Spindle nose clamping table: 152 – 762 mm
Clamping slots: 18 mm

Technical Machine Benefits

Central processor working memory (ram) data carrier: pentium
Floppy disks: 64 mb, optional 128 mb
Hard disk: 3,5“ disketten mit 1,44 mb, dos-kompatibel 1,6 gb
Programming format: hurco dialog format und nc
Transmission rate (baud rate): 115. 200 bei nc
Screens: 2 x 12“
Interfaces: 2 x serielle (rs-232)
Number of nc axes: 3 (x,y,z) – option 4 (a) + 5 (b) **
System resolution x,- y-, z-axis: 0,0005 mm
System resolution a and b axis: 0. 0001°

Extra Information

Additional oil separator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
