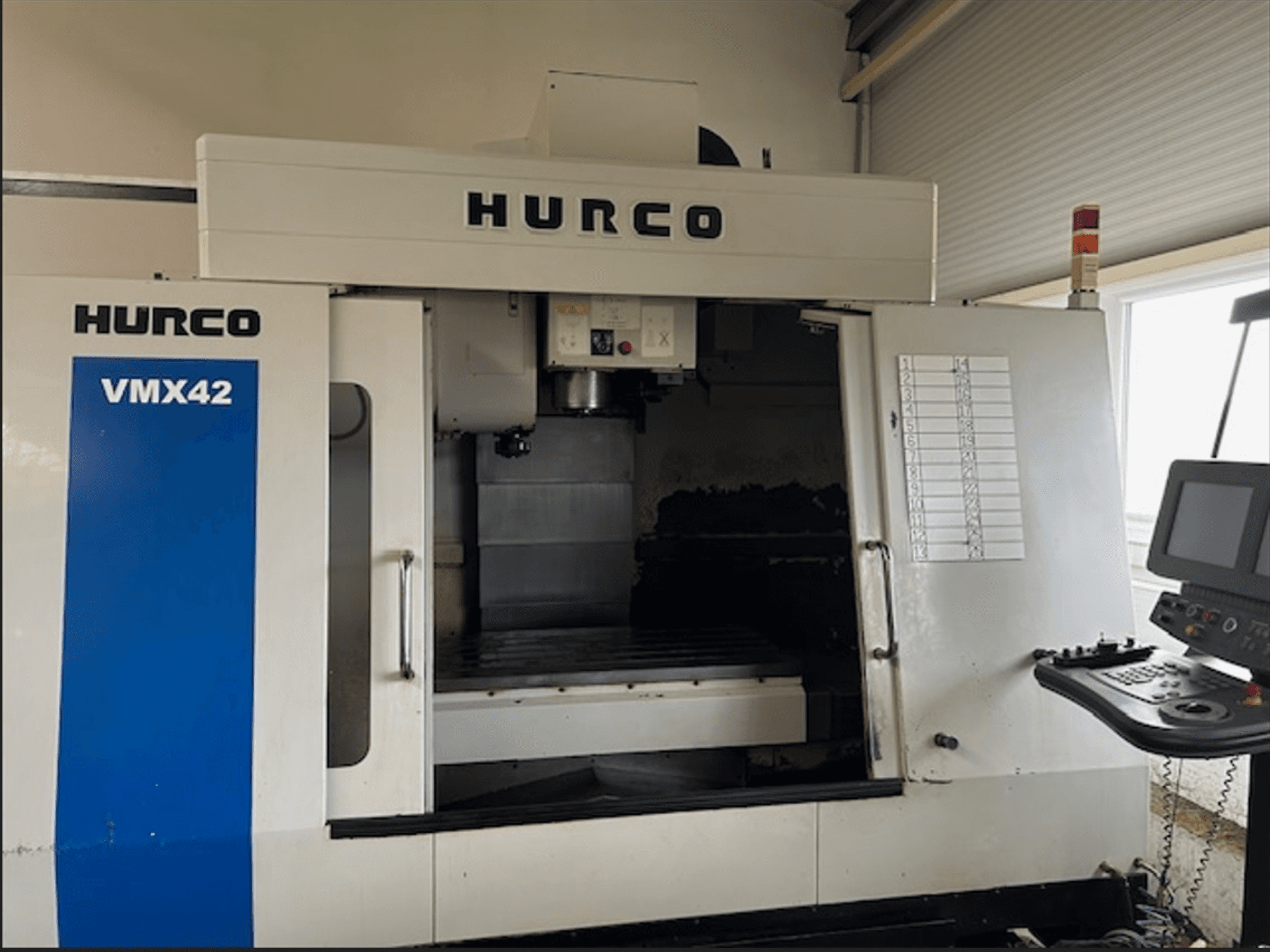

This 3-axis Hurco VMX42 vertical machining center was manufactured in 2007. It features a robust table size of 1,270 × 610 mm, supporting a maximum load of 1,500 kg. Equipped with a high-speed spindle capable of up to 12,000 rpm and a BT40 taper, it ensures efficient machining. The machine includes a 24-tool automatic changer and rapid traverse rates of 24 m/min. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2007
- MODEL: VMX42
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX42
Dimensions
- Machine Depth: 2800 mm
- Machine Height: 2800 mm
- Machine Weight: 5000 kg
- Table Load: 1500 kg
Movement
- X-axis Travel: 1067 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 12000 RPM
Additional Information
Table:
Size: 1,270 × 610 mm
Spindle:
Lubrication: Grease-lubricated
Through-spindle coolant (CTS): optional
Feed rates:
Cutting feed: up to 20 m/min
Tool changer:
Type: Automatic carousel
Accuracy:
Positioning: ±0.005 mm
Repeatability: ±0.003 mm
Control:
Hurco WinMax CNC
Display: Dual 19" touchscreen
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
