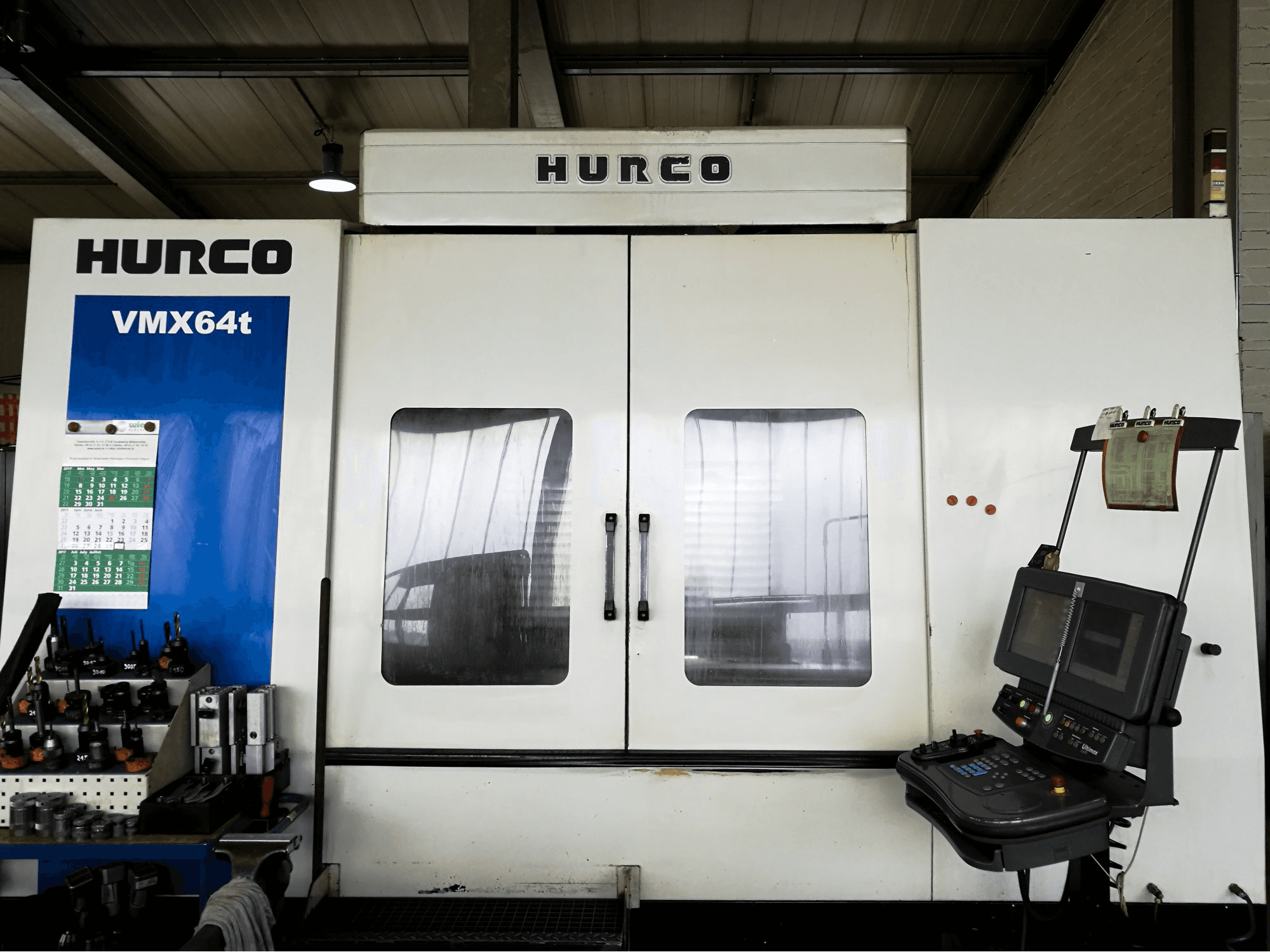

Hurco VMX64/40T Machining Center

This Hurco VMX64/40T Machining Center from 2007 has a production history of 20800 working hours. It is operated through a Yaskawa Ultimax Control unit equipped with USB / Ethernet interface and remote control. This machine stands out through the heavy table load it allows (up to 1350 kg) and its wide axis movement (1625, 860 and 760 mm on the X, Y and Z Axes respectively). As additional equipment this machine includes a 40x Automatic Tool Changer.

Overview

brand: Hurco
year: 2007
MODEL: VMX64/40T
production hours: 20800
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Hurco VMX64/40T

General Data

Measurements width: 4500 mm
Measurements depth: 2800 mm
Measurements height: 3300 mm
Machine weight: 15000 kg

Control Unit

Model: Ultimax
Interface: USB, Ethernet
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min
Spindle motor power: 15 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1625 mm
X-AXIS Backlash: 0.047
Y-AXIS Movement: 860 mm
Y-AXIS Backlash: 0.038
Z-AXIS Movement: 760 mm

Workpiece

Workpiece weight: 1350 kg

Table

Outer length: 1675 mm
Outer width: 890 mm
TSlots size: 18 mm
Number of tslots: 7
Distance between: 125 mm

Tools

Slots in storage: 40
Max weight: 7 kg
Max tool diameter: 81/120 mm
Max tool length: 300 mm

Media

Main electronic connection: 3 x 380 V / 50 Hz
Power consumption: 38 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
