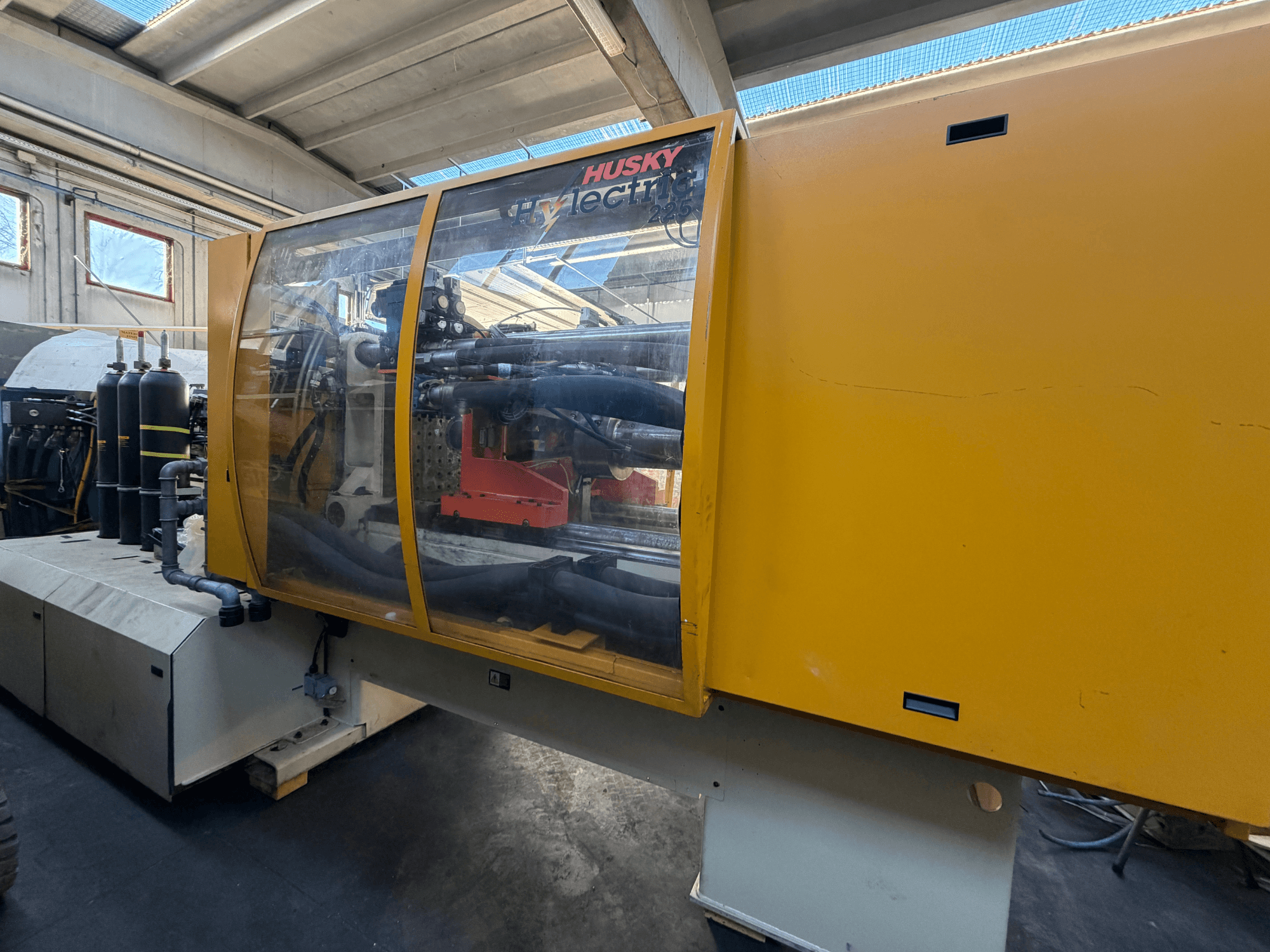

This Husky HL225 RS65 was manufactured in 2011. It features a clamping force of 225 tons and a screw diameter of 60 mm, optimized for high-speed PET preform production. The machine includes a platen size of 750 x 750 mm and an opening stroke of 500 – 550 mm. If you are looking to get high-quality injection moulding capabilities, consider the Husky HL225 RS65 electrical injection moulding machine we have for sale. Contact us for further details.
Overview
- brand: Husky
- year: 2011
- MODEL: HL225 RS65
- application type: Injection Moulding
- Location: Italy
- machine type: Electrical Injection Moulding Machine
Technical Information - Husky HL225 RS65
Technical Specification
- Clamping Force: 2250 kN
- Max. Shot Weight: 700 g
- Screw Diameter: 60 mm
Additional Information
Clamping Unit
System: Toggle
Tie bar distance: 510 × 510 mm
Platen size: 750 × 750 mm
Opening stroke: 500–550 mm
Mould height: 200–600 mm
Injection Unit (RS65/60)
Injection volume: 565–650 cm³
Injection pressure: up to ~2000 bar
Injection speed: High-speed (optimized for PET)
Electrical & Control
Technology: Full electric
Drive system: Servo motors
Energy consumption: Lower vs. hydraulic machines
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
