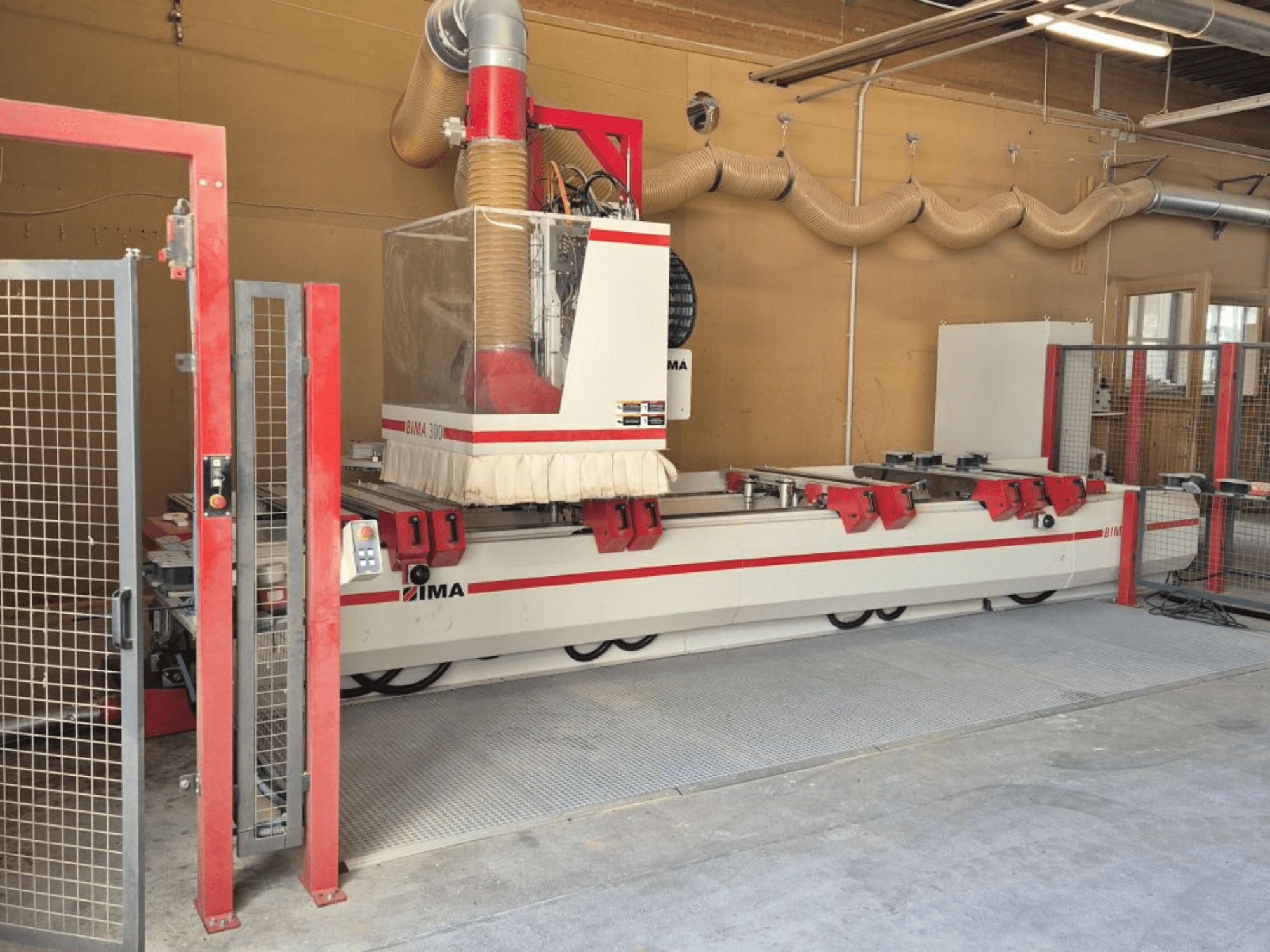

IMA - BIMA/300/125/530DE-CNC-IMA-2012-00001

Working range

• Y (main spindle + tool Ø20 mm): 1400 mm

• Y (drilling unit, all vertical drills): 890 mm

• Single-station machining: X = 2 × 2550 mm; center clearance X = 200 mm

• Indexing table machining: X = 2 × 2250 mm; free space in center = 800 mm

Tool magazine

• Automatic tool/adapter changer, turret type, 18 slots

• Mounted on support, moves in X-direction

Guiding and lubrication

• Preloaded, surface-hardened precision roller guides on all axes

• Manual central lubrication for main-axis linear guides and Z-axis ballscrew

Vacuum/fixturing and table

• 1 vacuum pump, 90 m³/h

• Console table with 2 fixed right and 2 fixed left workpiece stops (X-direction) for Y movement

• 10 support arms, infinitely adjustable in X, each with rear stop

• All stops program-controlled

• Suction plates with patented 2-circuit clamping system (hose-free)

• 8 smooth support rails, automatically lowerable

• 2 mushroom buttons for clamp/release

Spindle and machining units

• Main spindle: 10.0 kW (S6), 7.5 kW (S1); HSK F63 (Ø38 mm, per DIN 69893); 0–24,000 rpm, programmable

• Centrally integrated CNC axis: 360° rotation for adapter units, torque support on main spindle, pneumatic interface

• Drilling/grooving: Vertical drilling unit l14 with 6 horizontal spindles; horizontal units each with 2 outlets

• Attached groove saw unit, swivel 0°/90°

Control and software

• ICOS CNC control: PC-based, Windows UI, path control of all servo axes, job list/order processing, IMA backup & recovery on two hard drives, UPS

• IMAWOP software: Dialog programming, 3D view and basic simulation of workpiece, suction cups, brackets, tools, and adapters

Additional equipment

• Additional 2nd vacuum pump, 90 m³/h

• Additional center stop row for centering workpieces

• Chip conveyor belt
