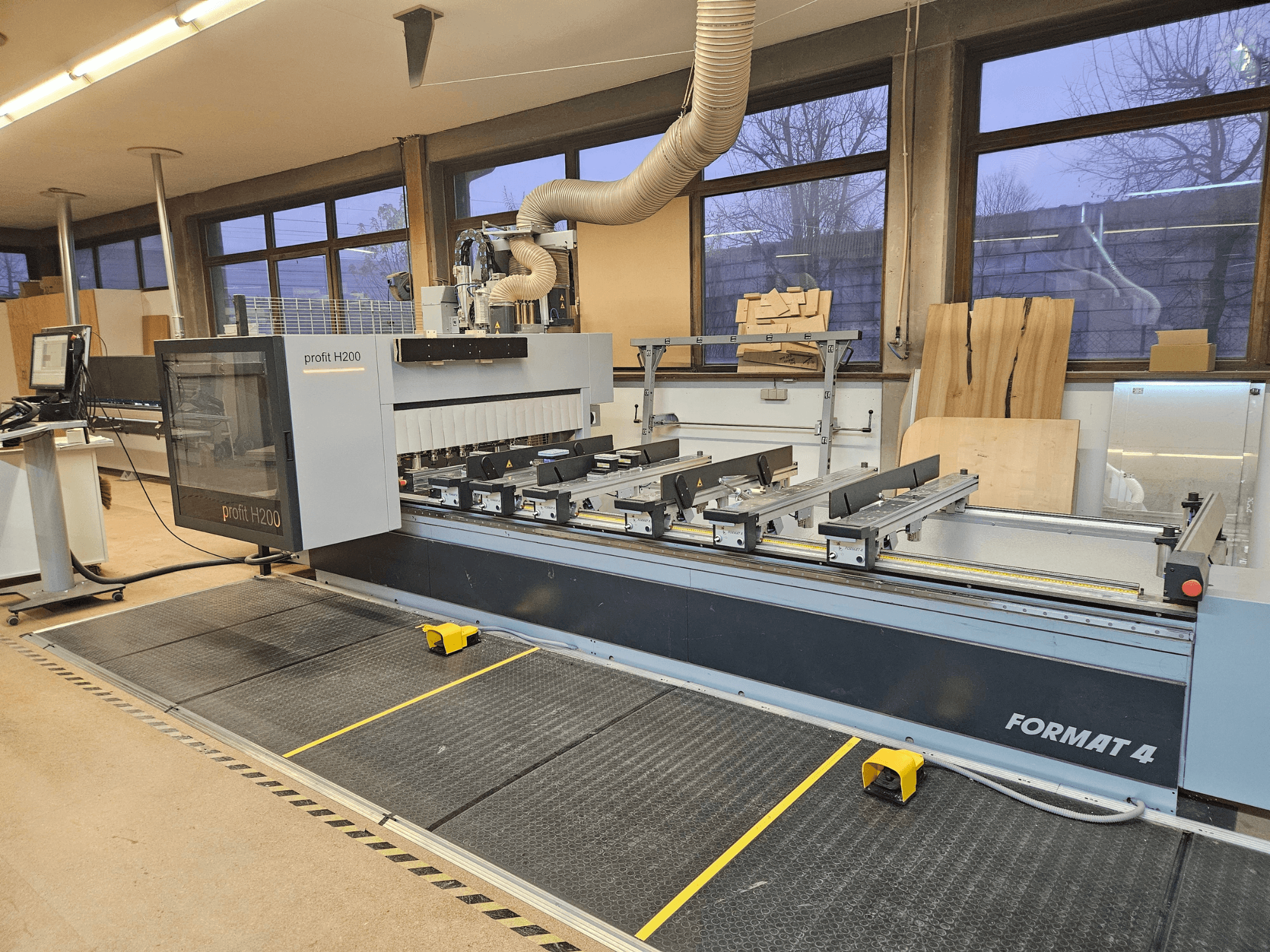

➤ Used FELDER FORMAT 4 PROFIT H 200 | Processing Center

This 4-axis CNC processing center was manufactured in 2020. It features a 12 kW milling spindle with a speed range of 1000-24000 rpm and a C-axis rotation of 0-360°. The machine includes a 12-station linear tool changer and a comprehensive drill head with 16 spindles. It also boasts a robust safety system with a light barrier. Consider the opportunity to buy this Felder Format 4 Profit H 200 CNC processing center. Contact us for more information about this machine.

Overview

brand: FELDER
year: 2021
MODEL: FORMAT 4 PROFIT H 200
application type: CNC Wood Machining
Location: Germany
machine type: CNC Processing Center

Technical Information - FELDER FORMAT 4 PROFIT H 200

Movement

Number of Axes: 4
X-axis Travel: 4000 mm
Y-axis Travel: 1670 mm
Z-axis Travel: 500 mm

Additional Information

Automatic central lubrication
Working area: X 3300 mm / Y 1280 mm / Z 250 mm (clearance height from console level depends on clamping system)
Operating terminal on left side of machine
Hand terminal with axis speed control and emergency stop
Software: Woodflash (CNC board, tool database, program editor)
Positioning display for workpiece support and vacuum suction cups
Vacuum connection for template milling (left side), connection diameter 12 mm
Vacuum pump: 1x, total suction power 90 m³/h @ 50 Hz or 108 m³/h @ 60 Hz
Milling spindle: 12 kW (S6), HSK F63, 1000–24,000 rpm, full rated power at ~12,000 rpm, air-cooled; C-axis 0–360°
Tool changer: 12-station linear on left side of machine stand, incl. pickup space for aggregates; max tool diameter 250 mm; max tool length 240 mm
Drill head DH 16 4H 2S: 12 vertical spindles (7X / 5Y); 4 horizontal spindles (2X / 2Y); pre-stroke 70 mm; drilling length 70 mm; shank Ø 10 mm
Groove saws: 2 (one X, one Y); max blade Ø 120 mm; max thickness 5 mm; continuously variable speed up to 7,500 rpm
Safety: front light barrier system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
