➤ Used SCM MORBIDELLI M220 For Sale | gindumac.com

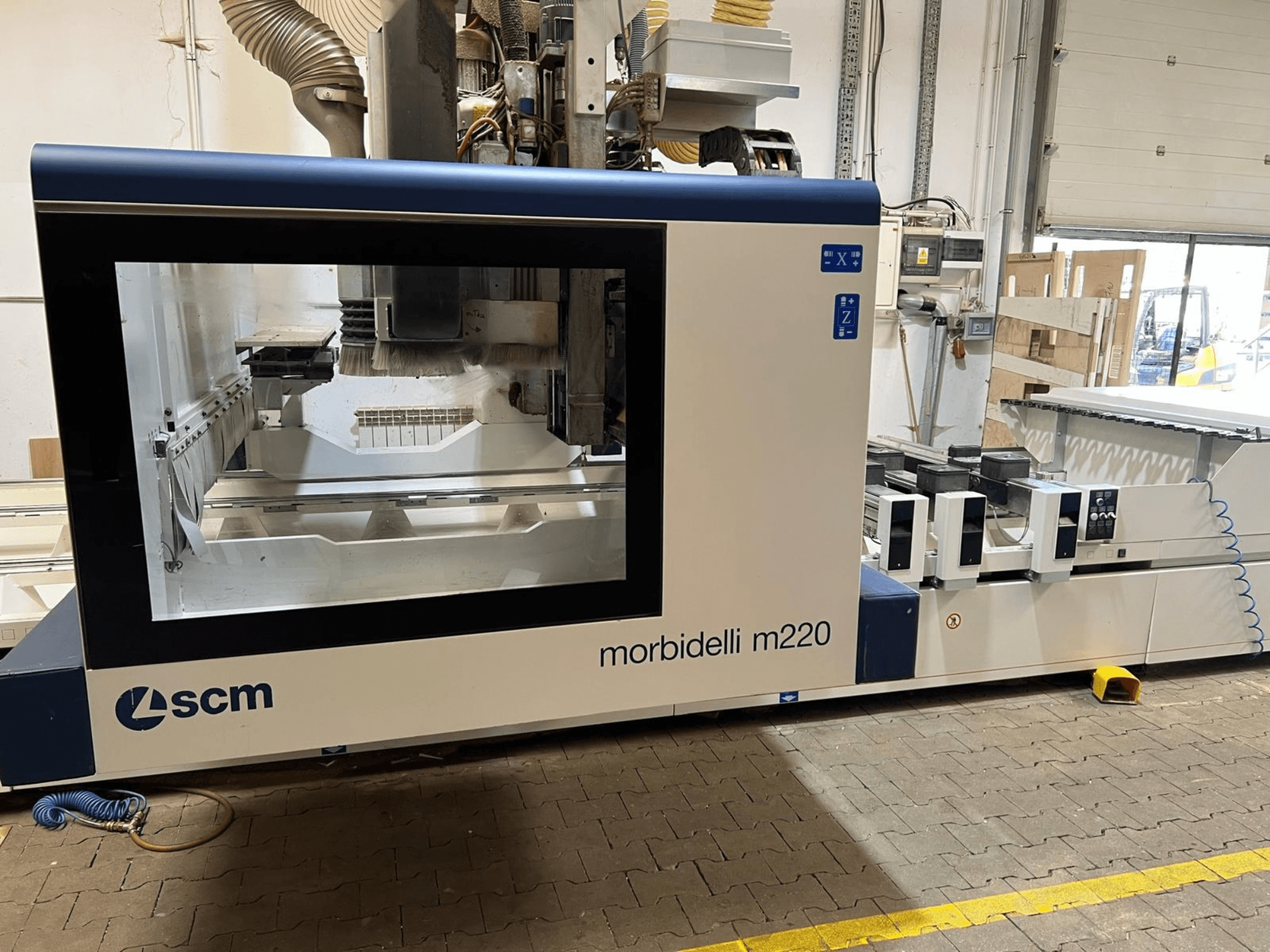

This 3-axis SCM Morbidelli M220 CNC machining centre was manufactured in 2019. It features a working area of 5,510 x 1,620 x 180 mm and a powerful 15 kW liquid-cooled HSK 63F electrospindle with speeds up to 24,000 rpm. The machine includes a F29LTC drilling head with 17 vertical and 6 horizontal drilling units, as well as a high-performance vacuum clamping system. If you are looking to get high-quality machining capabilities, consider the SCM Morbidelli M220 machine we have for sale. Contact us for further details.

Overview

brand: SCM
year: 2019
MODEL: MORBIDELLI M220
application type: CNC Wood Machining
Location: Poland
machine type: CNC Processing Center

Technical Information - SCM MORBIDELLI M220

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 24000 RPM

Additional Information

Working area: 5,510 x 1,620 x 180 mm
Electrospindle: 15 kW liquid-cooled, HSK 63F
Drilling head: F29LTC with 17 vertical spindles + 6 horizontal units with double outlet (3 in X, 2 in Y)
Integrated saw blade: X direction
Tool magazines: TRB14 with 11 positions; FAST14 with 14 positions
Clamping: High-performance vacuum system
Work table: TV FLEX
Software: Xilog Maestro CAD/CAM
Positioning accuracy: up to ±0.03 mm
Travelling speed: up to 78 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
