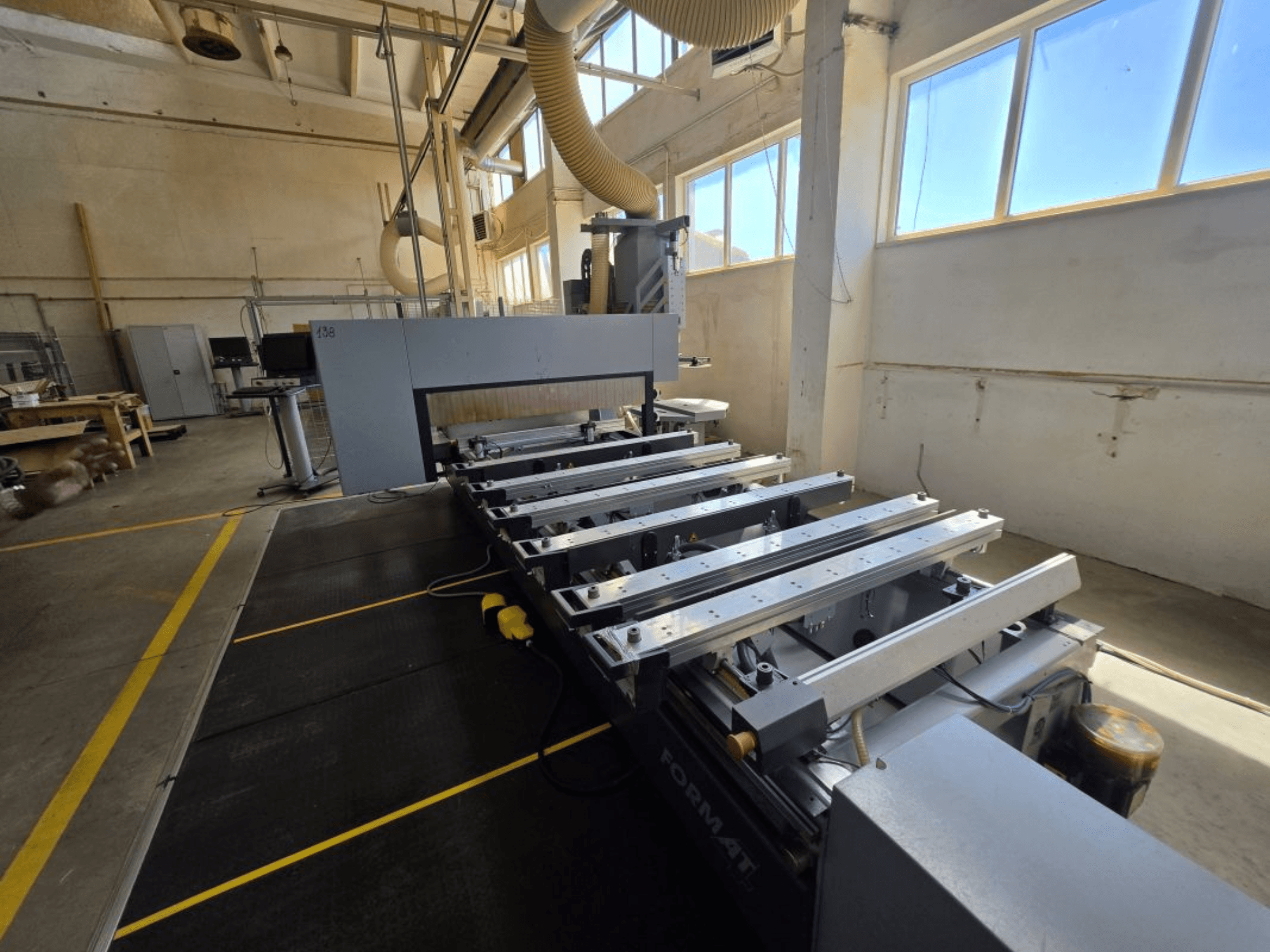

FORMAT4 - Profit H350 1630PL-CNC-FOR-2018-00001

• Working hours: 6,442 h

• Condition: Not rebuilt – without warranty

General

• Construction: Heavy-duty welded steel frame, reinforced

• Gantry: Dual-driven moving gantry

• 5-axis simultaneous machining

• Control software: WoodFlash CNC

• Remote service package via internet connection

Working area and axes

• Working area: X 3000 mm / Y 1550 mm / Z clearance 250 mm

• Drives: X helical rack & pinion; Y/Z precision ball screws

• Guideways: Linear on all axes

• Lubrication: Automatic central system

Main spindle (5-axis electrospindle)

• Type: Cardan-joint 5-axis spindle, right-hand rotation

• Power: 12 kW (S6), full power around 12,000 rpm

• Speed: 1,000–24,000 rpm

• Tool interface: HSK F63

• Cooling: Liquid cooling; ceramic bearings with air cooling

• Integrated aggregate holder; electrically controlled extraction hood

• Max tool weight: 6 kg

• Max saw blade diameter: 350 mm

Tool magazines

• Linear magazine: 12 positions, left side of frame; separate aggregate pickup; max tool Ø 250 mm; max tool length 240 mm

• Rotary disc magazine: 18 positions on moving gantry; supports drills and aggregates; max tool Ø 250 mm; max tool length 280 mm

Drilling unit (DH18 6H 1S)

• Vertical spindles: 12 total (7 in X, 5 in Y)

• Horizontal spindles: 6 total (4 in X, 2 in Y)

• Drilling stroke/depth: up to 70 mm; tool holder size 10 mm; individually controlled spindles

• Integrated grooving saw: Ø 120 mm; max body thickness 5 mm; up to 7,500 rpm

Vacuum and clamping

• Console table: 6 consoles with front/rear stops; wireless dual-circuit vacuum; vacuum cup height 100 mm

• Pneumatic console locking; programmable pneumatic stops; 4 movable side stops

• Reinforced support arms (40 kg each)

• Vacuum pump capacity: 90 m³/h @50 Hz; 108 m³/h @60 Hz

• Additional vacuum connection for template work

• Controlled compressed air for frame clamps

• Independent vacuum/air switching per console

CNC software and control

• WoodFlash package: CNC control, tool database (Tecno Manager), program editor, 3D preview, DXF import, CAD functions (rotate/mirror/scale/copy), engraving, pocket milling, parametric and absolute/incremental programming, machining optimization

• CNC control panel: Full machine operation, program creation/editing, tool/workpiece management, manual commands, vacuum/air/safety monitoring

• Mobile operator terminal: 24" LED monitor, keyboard, mouse, USB

• Feed speed control terminal: Manual feed override potentiometer; variable feed during machining

Safety

• CE safety system; safety mats (instead of light curtain)

• Emergency stop system

• Safety fence on left side; door safety monitoring

• Vacuum and compressed air monitoring sensors

Additional equipment

• External enable switch

• Protected cable chain system

• Additional A and C axis locking system

• Tool service kit

• Polish software installation package

• Polish operating manual

• Saw blade changing station on gantry
