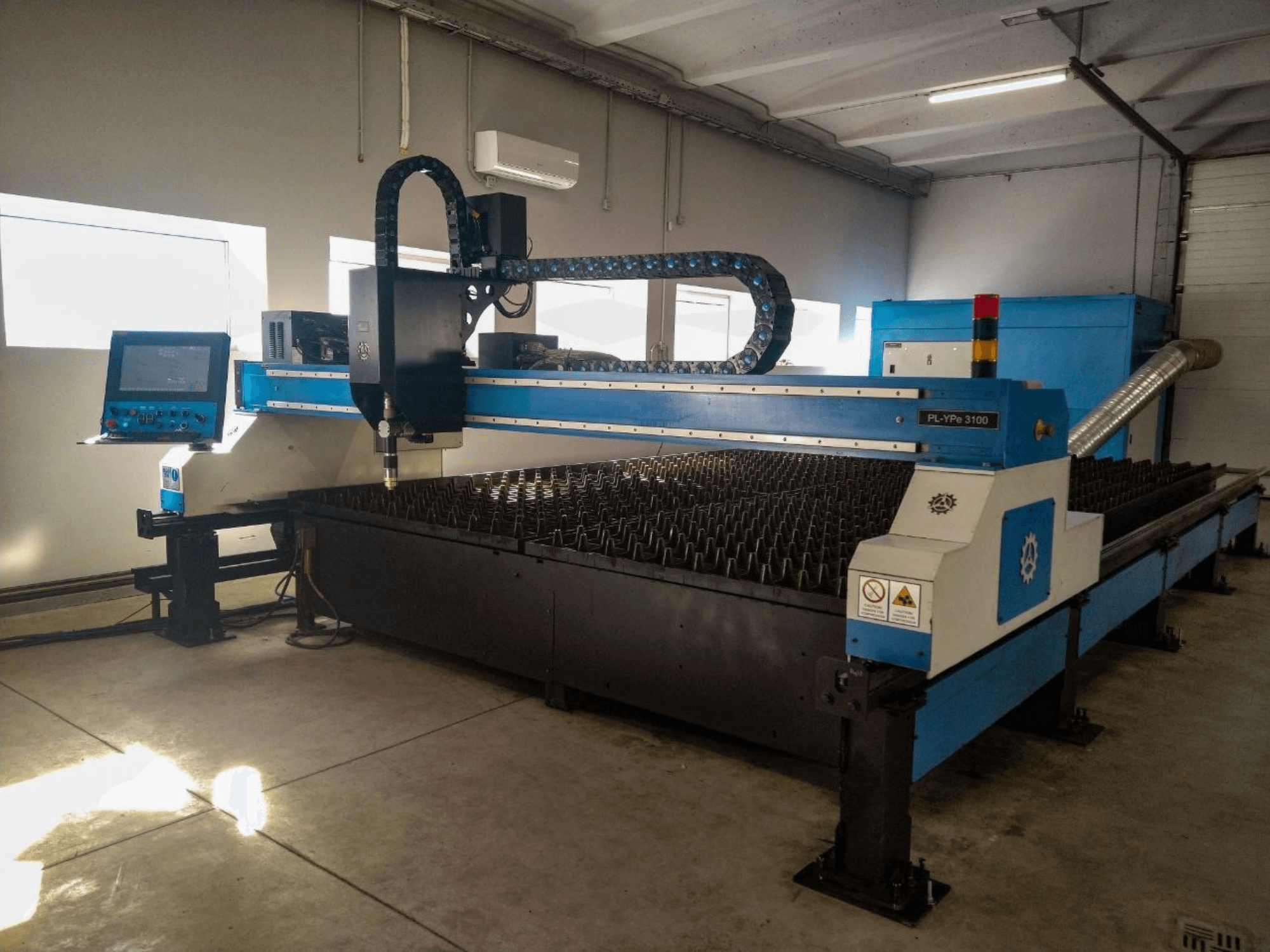

This 3-axis INANMAK MEKOR PL-YPe 3100 was manufactured in 2019. It features a working area of 3,000 × 12,000 mm and is equipped with a Hypertherm HPR400XD High Definition plasma source. The machine includes a 3D bevel cutting head and operates at a maximum positioning speed of 20 m/min. If you are looking to get high-quality plasma cutting capabilities, consider the INANMAK MEKOR PL-YPe 3100 machine we have for sale. Contact us for further details.
Overview
- brand: INANMAK
- year: 2019
- MODEL: MEKOR PL-YPe 3100
- application type: Cutting
- Location: Estonia
- machine type: Plasma Cutting Machine
Technical Information - INANMAK MEKOR PL-YPe 3100
Dimensions
- Machine Weight: 9000 kg
Movement
- Number of Axes: 3
Additional Information
Plasma Source: Hypertherm HPR400XD High Definition, 400 A
Control System: Hypertherm Edge Connect CNC
Working Area: 3,000 × 12,000 mm
Cutting Head: 3D bevel cutting head
Maximum Positioning Speed: 20 m/min
Machine Voltage: 200 V / 50 Hz
Generator Voltage: 380 V / 60 A
Table Dimensions: 4,300 × 15,000 × 2,300 mm
Material Compatibility: Carbon steel, stainless steel, aluminum
Usage: Approximately 1 year
Technical Condition: Excellent
Additional equipment
Inanmak filtration and dust extraction unit included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
