➤ Used Index ABC Horizontal Lathe For Sale | gindumac.com

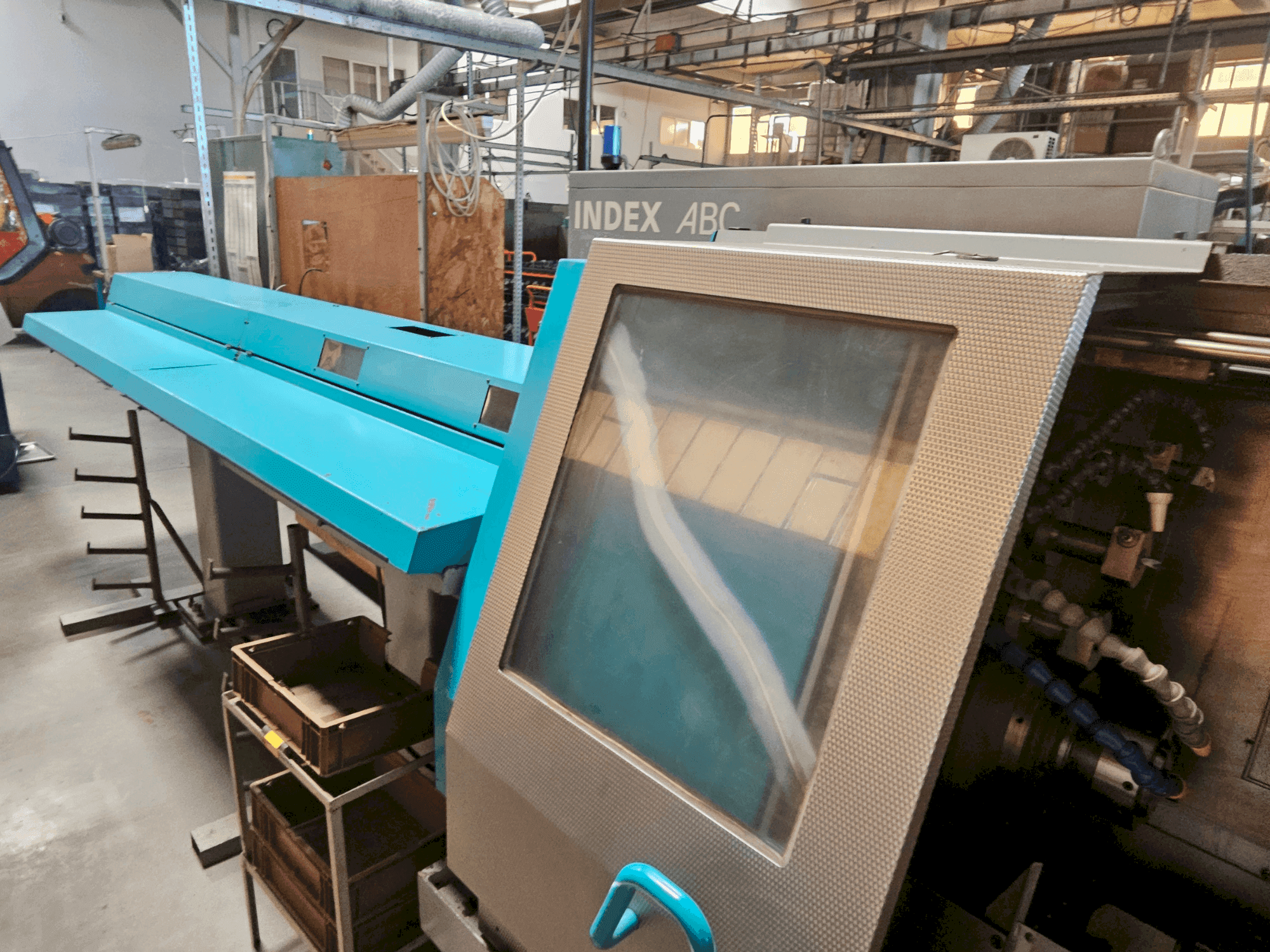

This Index ABC was manufactured in 1996. It features a main spindle with a maximum speed of 8,000 rpm and power ranging from 7.5 to 10 kW. The machine includes a 12-position turret supporting both static and driven tools, and an integrated bar loader for bars up to 42 mm in diameter. It operates on a 400 V AC supply and includes an INDEX proprietary CNC system. For more information about this machine, please reach out to us.

Overview

brand: Index
year: 1996
MODEL: ABC
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
control unit brand: INDEX

Technical Information - Index ABC

Control Unit

Control Brand: INDEX

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Integrated bar loader
For bar diameters: approx. Ø8–42 mm
Sync interface with main spindle

Machine Benefits

Technical Machine Benefits

Max. Bar diameter: Ø42 mm
Max. Turning length per cycle: ~120 mm
Backworking possible via counter-spindle
12-position turret, with static and driven tools
Er collet toolholders
Independent tool carriers for simultaneous operations
Cnc-controlled axes: 6 (x1, z1, y1, x2, z2, c)
Live tooling support: yes, with powered tools on turret
Multiple flexible coolant nozzles // through-spindle coolant optional
Central automatic lubrication system

Extra Information

Extra Information Supply voltage: 400 V AC Frequency: 50 Hz Control voltage: 24 V Current: Typical around 25–40 A Control Unit INDEX proprietary CNC (Fanuc architecture) Color screen + full alpha-numeric keypad Manual axis control panel with rotary switches Feed override, spindle speed override, coolant/manual jog functions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
