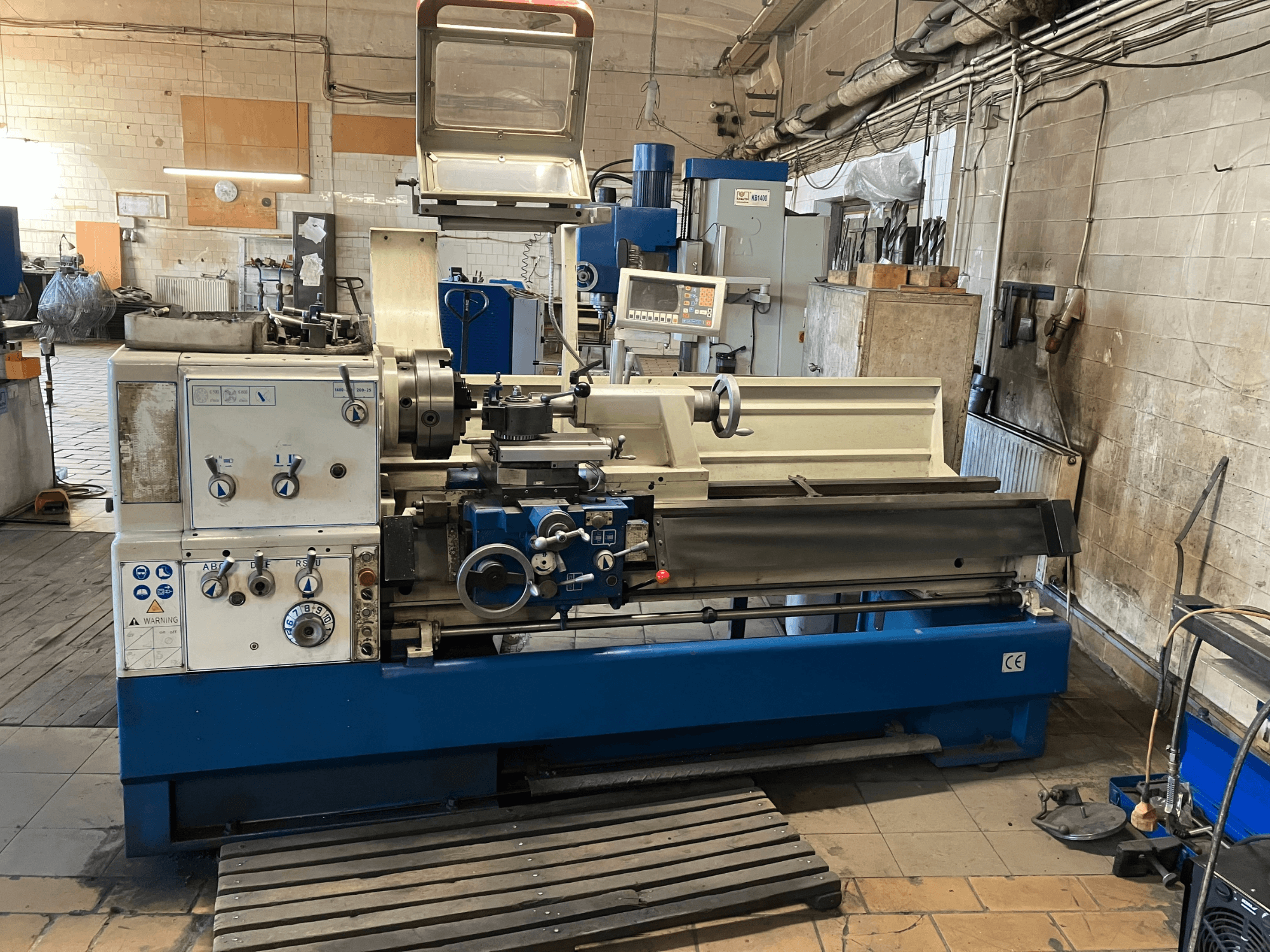

This 3-axis KNUTH Turnado 280/1500 was manufactured in 2018. It features a distance between centers of 1,420 mm and a swing over bed of 560 mm. The machine is equipped with a spindle speed range of 25 – 1,600 rpm and includes a 3-axis Digital Readout (DRO) and a quick change tool post. If you are looking to get high-quality turning capabilities, consider the KNUTH Turnado 280/1500 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: KNUTH
- year: 2018
- MODEL: Turnado 280/1500
- application type: Turning
- Location: Romania
- machine type: Horizontal Turning Machine
Technical Information - KNUTH Turnado 280/1500
Movement
- Number of Axes: 3
- X-axis Travel: 315 mm
- Z-axis Travel: 127 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: No
- Spindle Speed: 1600 RPM
Additional Information
Technical specifications
Distance between centers: 1,420 mm
Swing over bed: 560 mm
Swing over cross slide: 360 mm
Swing in gap: 790 mm
Gap length: 180 mm
Bed width: 350 mm
Travels
Compound slide swivel: ±52°
Spindle
Spindle nose: Camlock D1-8
Spindle bore: 80 mm
Spindle taper: MT7
Number of spindle speeds: 12
Feed rates
Longitudinal feed: 0.059–1.646 mm/rev
Cross feed: 0.020–0.573 mm/rev
Thread cutting
Metric threads: 0.2–14 mm (47 ranges)
Module threads: 0.1–7 mm (39 ranges)
Whitworth threads: 2–112 TPI (60 ranges)
Diametral pitch threads: 4–112 DP (50 ranges)
Tailstock
Tailstock taper: MT5
Tailstock quill diameter: 76 mm
Tailstock quill stroke: 180 mm
Tailstock offset adjustment: ±12 mm
Machine data
Main motor power: 7.8 kW
Voltage: 400 V
Frequency: 50/60 Hz
Additional equipment
3-axis Digital Readout (DRO)
Quick Change Tool Post
Chip conveyor
Extensive standard tooling package
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
