Index - G 400 Ratio LineDE-TUR-IND-2008-00001

Name: Index G 400 Ratio Line
Brand: Index
SKU: DE-TUR-IND-2008-00001
Price: 45000 EUR
Availability: InStock

45,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Index G 400 Ratio Line For Sale | gindumac.com

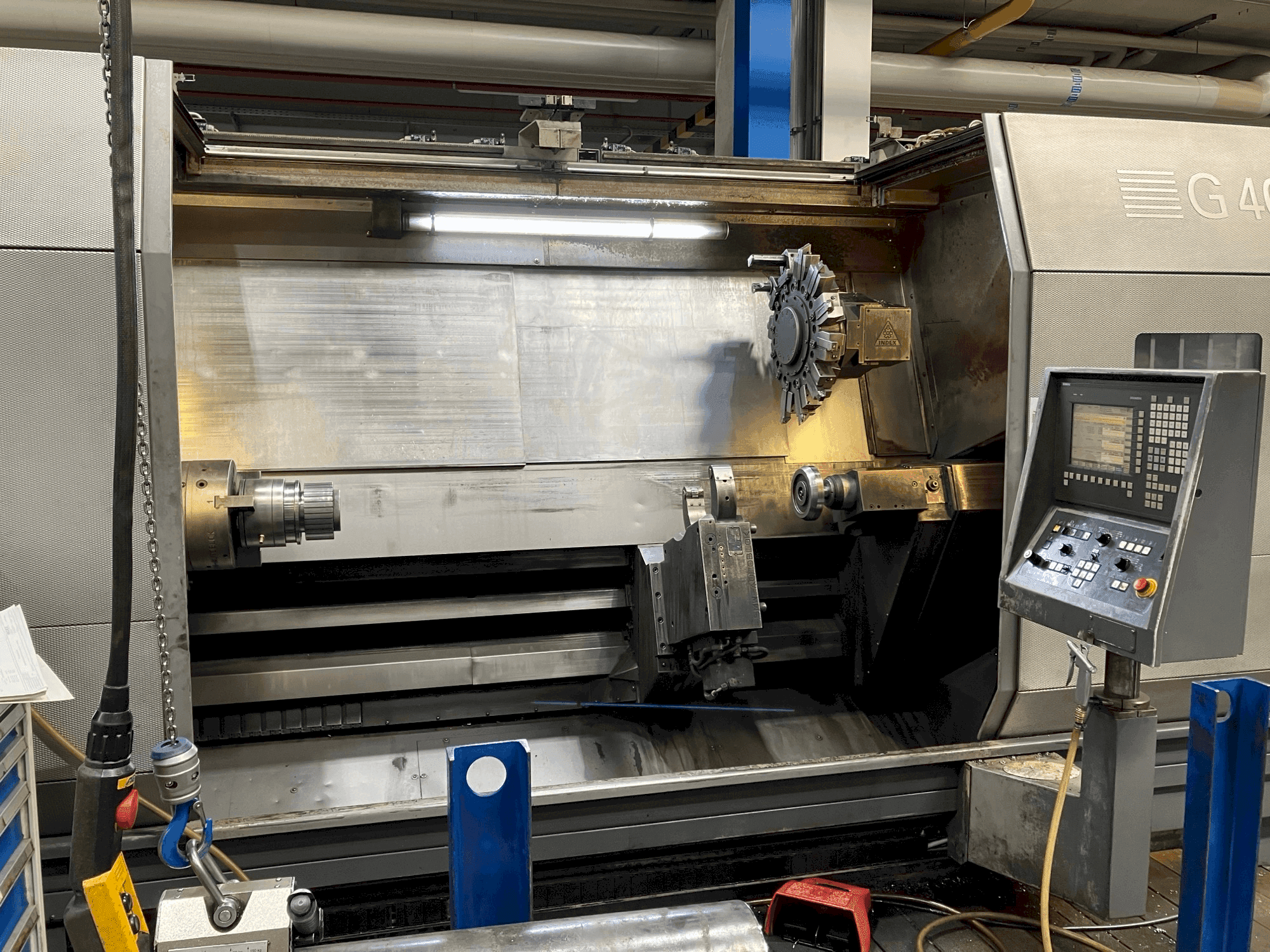

This 3-axis Index G 400 Ratio Line was manufactured in 2008. A CNC universal lathe featuring a C200-4D control, linear roller guides, and a cast machine bed. It boasts a turning length of 2000 mm and a maximum turning diameter of 630 mm. The main spindle delivers up to 57 kW of power and 363 Nm of torque. Consider the opportunity to buy this Index G 400 Ratio Line turn-mill centre. Contact us for more information about this machine.

Overview

brand: Index
year: 2008
MODEL: G 400 Ratio Line
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: INDEX

Technical Information - Index G 400 Ratio Line

General Data

Measurements width: 2760 mm
Measurements depth: 5350 mm
Measurements height: 2616 mm
Machine weight: 20000 kg

Control Unit

Brand: INDEX
Model: C200-4D

Main drive

Spindle speed range: 30-3500 1/MIN
Spindle motor power: 43 kW
Number of axis: 3

Movement

X-AXIS Movement: 320 mm
Z-AXIS Movement: 2000 mm

Turret

Number of turrets: 1

Tools

Number of stations: 12
Type of tool holder: VDI40

Additional Equipment

- Coolant Internal Supply: Yes
- Coolant Filter: Paper belt (150 l/min with emulsion)
- Chip Conveyor: 1250 mm ejection height
- Automatic Sliding Door: Yes
- Foot Switch: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating history: 2-3 shift operation, regular maintenance
- - Max. Turning diameter: 630 mm
- - Turning length: 2000 mm
- - Hollow clamping cylinder/bar passage: 90 mm (max. 3500 min-¹)
- - Tailstock slide: sk40, 500 kg max.
- - Tool drive power: 17 kw
- - Tool drive torque: 36 nm
- - Tool drive speed: 6000 min-¹
- - Clamping monitoring: yes

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
