INGERSOLL - Gantry 400IT-EDM-ING-2002-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used INGERSOLL Gantry 400 For Sale | gindumac.com

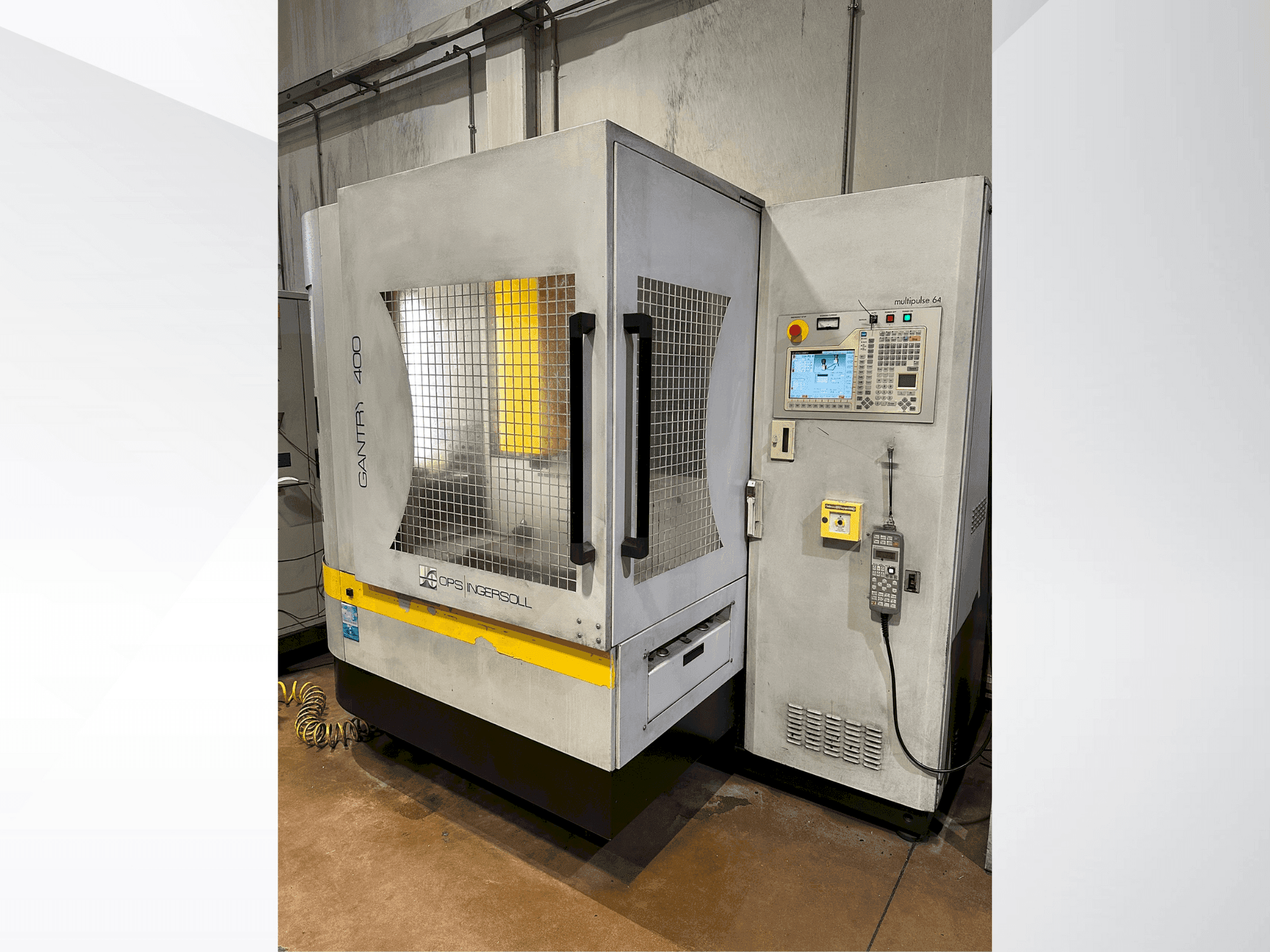

This 4-axis INGERSOLL Gantry 400 die-sinking EDM machine was manufactured in 2002. Consider the opportunity to buy this INGERSOLL Gantry 400 die-sinking EDM machine. Contact us for more information about this machine.
Overview
- brand: INGERSOLL
- year: 2002
- MODEL: Gantry 400
- application type: EDM
- Location: Italy
- machine type: Die-Sinking EDM Machine
Technical Information - INGERSOLL Gantry 400
Dimensions
- Table Length: 550 mm
- Table Load: 500 kg
- Table Width: 470 mm
Movement
- Number of Axes: 4
- X-axis Travel: 420 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 400 mm
Additional Information
Additional equipment
- Mecatool Electrode Holders (various sizes): 200 pieces
- Chiller Refrigerator: Model ZCM103-O
Machine Benefits
Technical Machine Benefits
- Z-axis rapid jump speed: up to 18000 mm/min
- Minimum/maximum distance between table and electrode: 135 mm / 535 mm
- Maximum electrode weight: 15 kg
- Work tank dimensions: 650 x 500 x 340 mm
- Electrode changing system: 20-position tool changer
- Numerical control: pc-nc-dialogue 2 x 32 bit
- Drive type: ac digital servo drives
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
