Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Inter-plast - 3 D 725ES-GRI-INT-1995-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Inter-plast 3 D 725 Grinding Machine

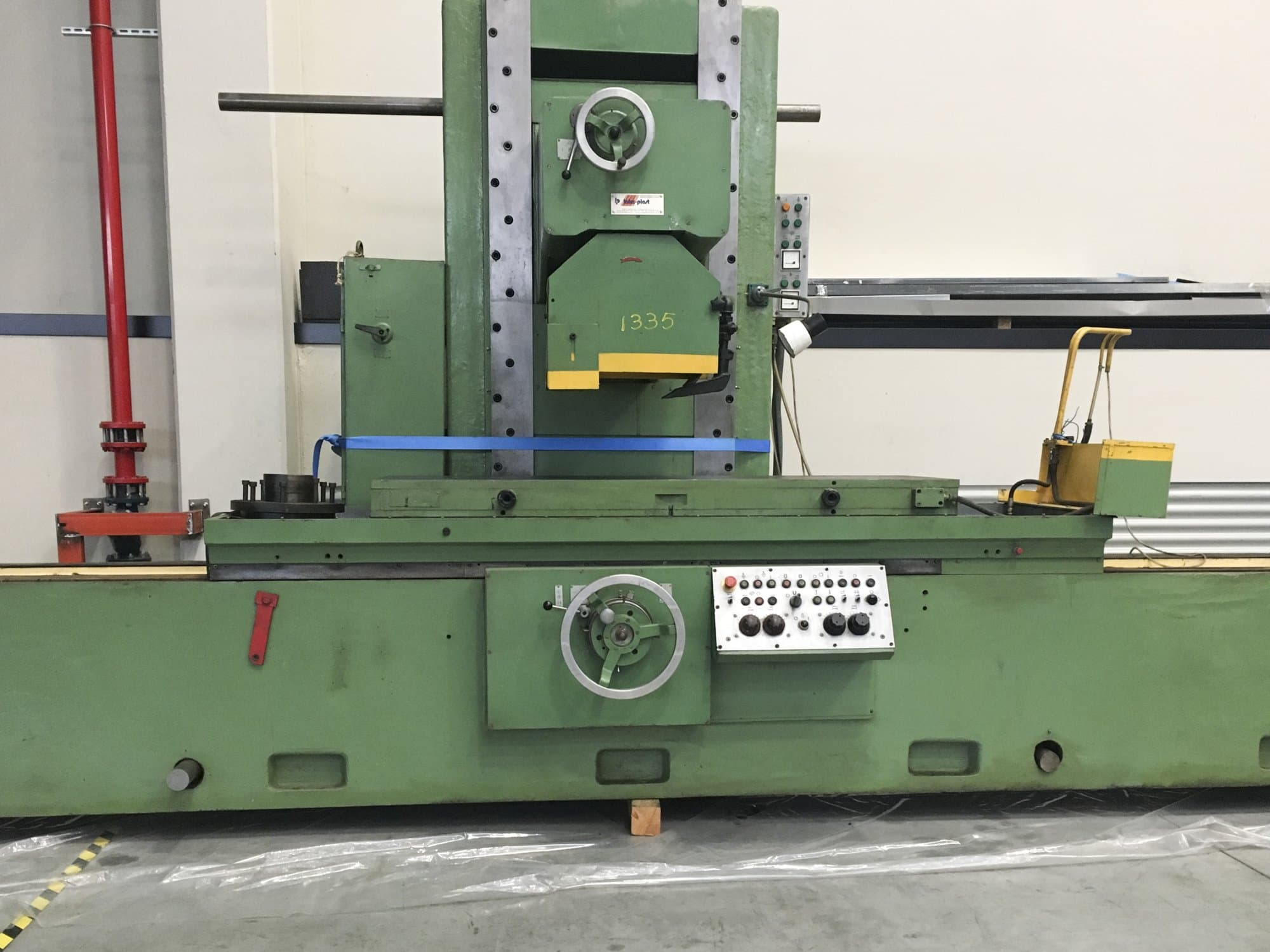

This Inter-plast 3 D 725 Grinding Machine was manufactured in 1995. The equipment stands out for its robustness and includes a working table of 2000 x 650 millimeters (L x W).
Overview
- brand: Inter-plast
- year: 1995
- MODEL: 3 D 725
- application type: Grinding
- Location: Spain
- machine type: Grinding Machine
Technical Information - Inter-plast 3 D 725
General Data
- Measurements width: 2860 mm
- Measurements depth: 5950 mm
- Measurements height: 2860 mm
- Machine weight: 13450 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 1470 1/min
- Spindle motor power: 30 kW
Movement
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Rapid traverse: 30 m/min
Workpiece
- Workpiece x: 2000 mm
- Workpiece y: 650 mm
- Workpiece weight: 2000 kg
Table
- Outer length: 2000 mm
- Outer width: 650 mm
- TSlots size: 160 mm
- Number of tslots: 3
- Distance between: 160 mm
- Magnetic table: Yes
Media
- Power consumption: 43.8 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
