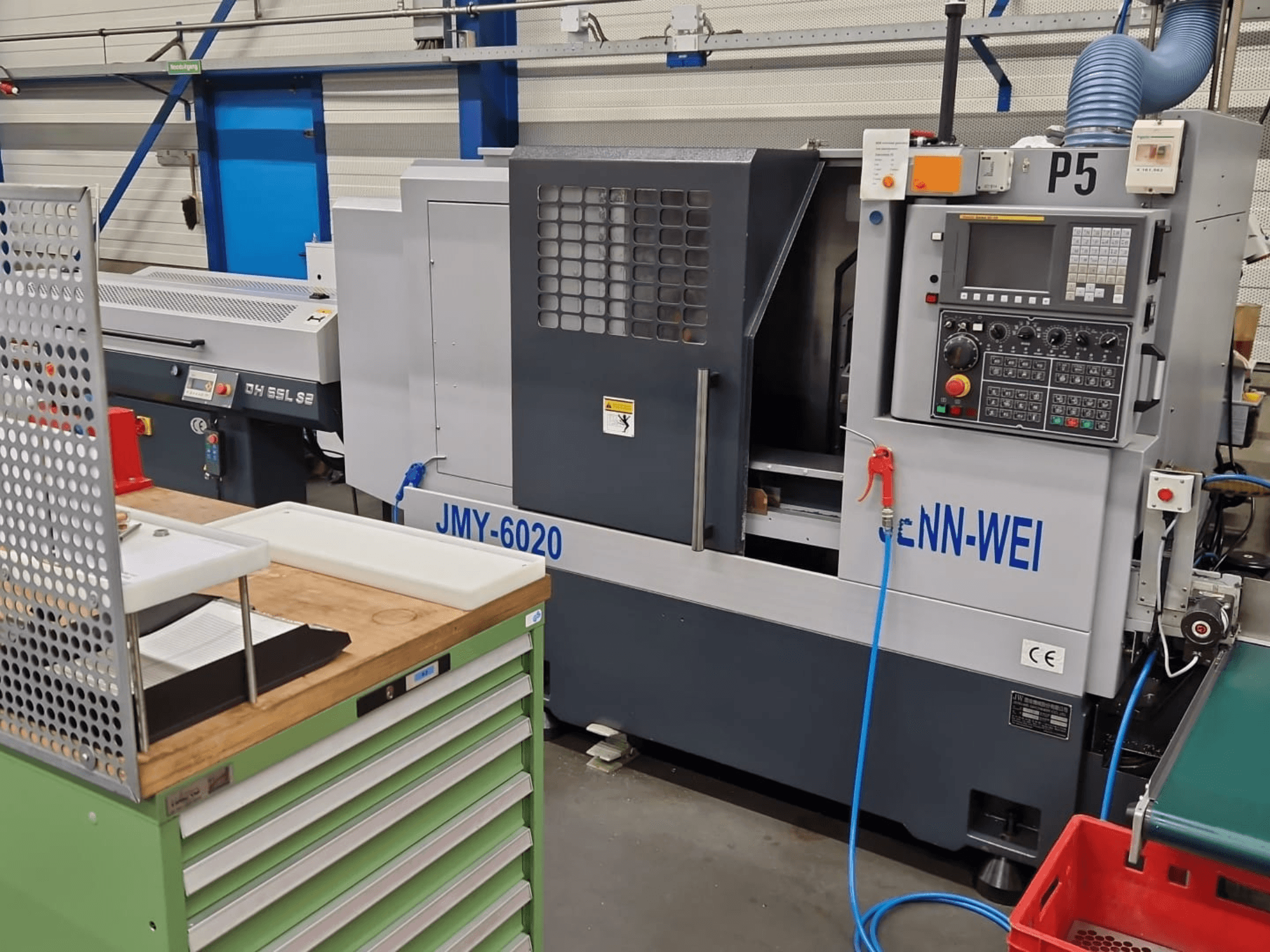

CNC lathe machine, model JMY-6020 by cNN-WEI, viewed from the front. Features control panel, emergency stop, and coolant line.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

JENN-WEI JMY-6020

Photo Gallery

JENN-WEI - JMY-6020NL-TUR-JEN-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used JENN-WEI JMY-6020 For Sale | gindumac.com

This 3s JENN-WEI JMY-6020 horizontal turning machine was manufactured in 2015. It features a maximum turning diameter of 180 mm and a turning length of 300 mm, with a spindle speed of 5,000 rpm. The machine is equipped with a Fanuc Oi-TD control and includes a bar feeder, extraction system, and chip conveyor. If you are looking to get high-quality turning capabilities, consider the JENN-WEI JMY-6020 machine we have for sale. Contact us for further details.

Overview

brand: JENN-WEI
year: 2015
MODEL: JMY-6020
production hours: 52333
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - JENN-WEI JMY-6020

Control Unit

Control Brand: FANUC
Control Model: 0i-TD

Movement

Number of Axes: 3
X-axis Travel: 170 mm
Y-axis Travel: 90 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Max. turning diameter: 180 mm
Max. turning length: 300 mm
Rapid traverse: X 20 m/min, Z 24 m/min, Y 10 m/min
Drive: Direct drive on all axes
A2-6 spindle nose, 60 mm bar bore
Turret: VDI-30 driven, 20 positions, tool holder 20 mm, round tool 25 mm, 2.2/3.7 kW
Power-on time: approx. 52,333 hours
Production run: approx. 900,000 items

Additional equipment

Bar feeder
Extraction system
Chip conveyor
Green discharge conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
