- ➤ Used Johnford VMC-2000SHD For Sale | gindumac.com

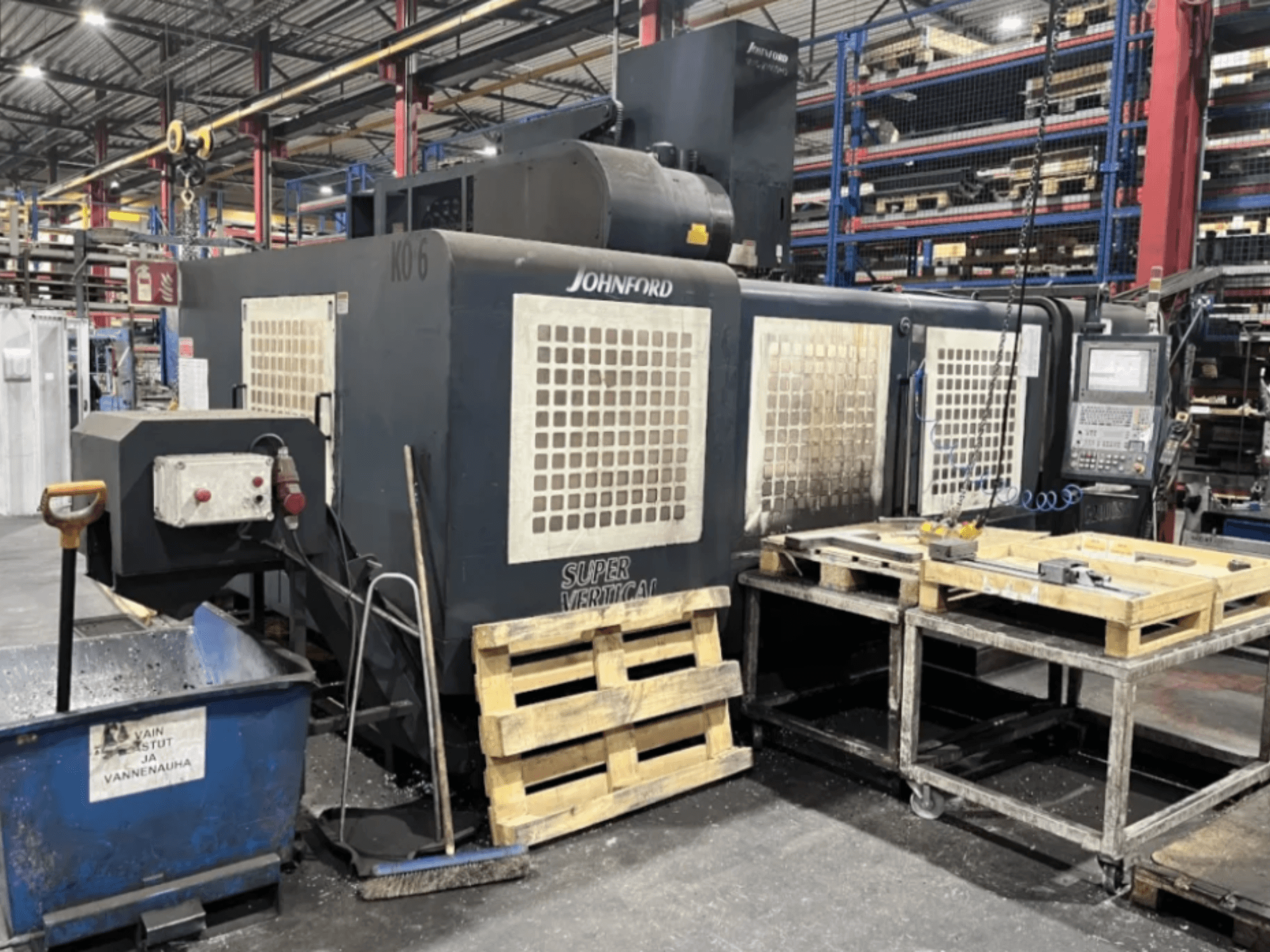

This 3-axis Johnford VMC-2000SHD was manufactured in 2005. It features a large table size of 2200 × 1000 mm and extensive travels: X-axis at 2050 mm, Y-axis at 1100 mm, and Z-axis at 800 mm. With a spindle speed ranging from 10 to 6000 rpm and a tool magazine capacity of 40 tools, this vertical machining centre is ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: Johnford
- year: 2005
- MODEL: VMC-2000SHD
- application type: Milling
- Location: Finland
- machine type: Vertical Machining Centre
Technical Information - Johnford VMC-2000SHD
Dimensions
- Machine Height: 3400 mm
- Machine Length: 7200 mm
- Machine Weight: 27000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2050 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 40
- Spindle Speed: 6000 RPM
- Taper Size: BT 50
Additional Information
Table size: 2200 × 1000 mm
Electrical connection: 80 kVA
Through-spindle coolant: 20 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
