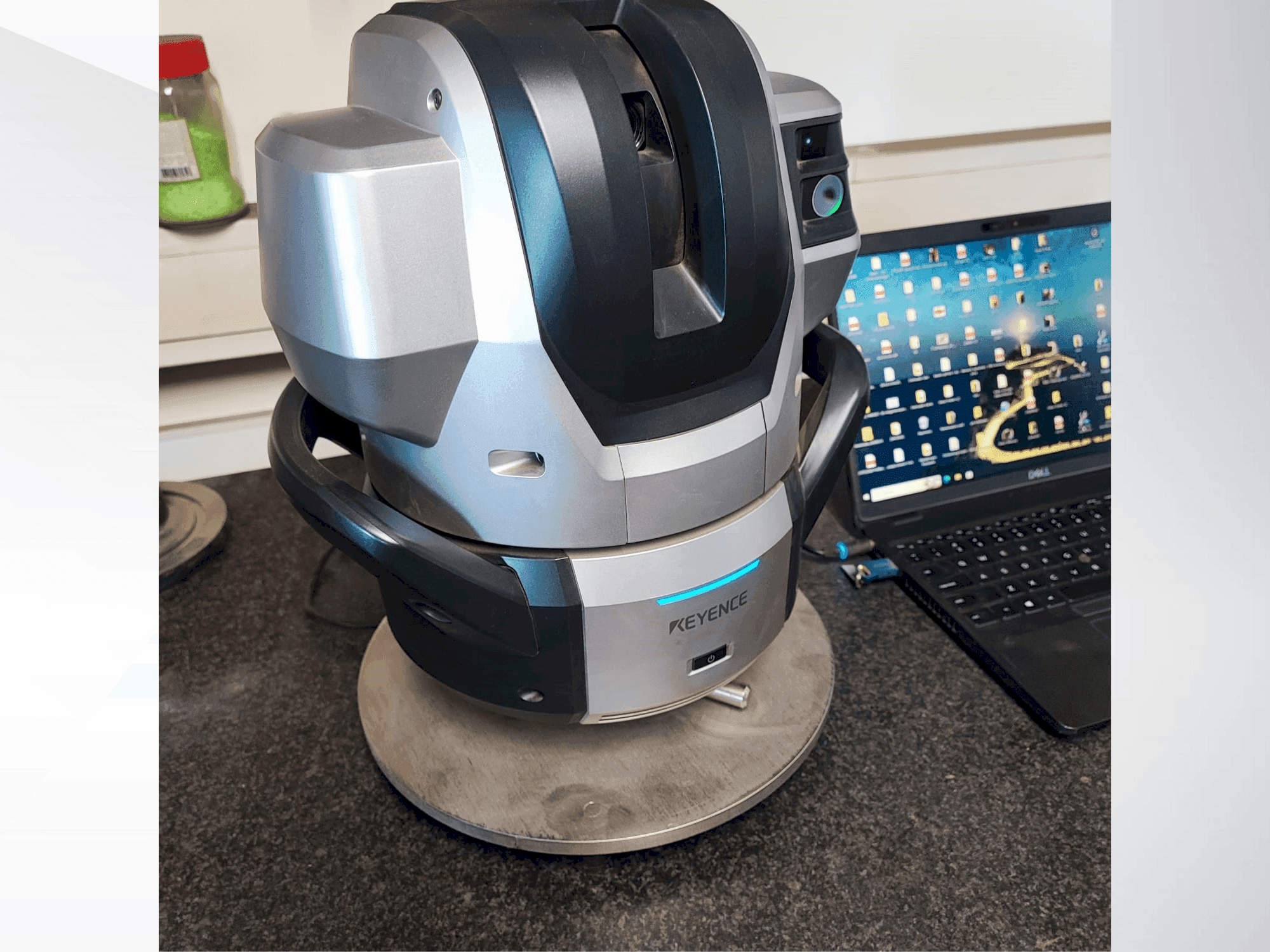

This KEYENCE WM 3000 was manufactured in 2022. A reliable CMM machine, it offers precise dimensional measurement and quality control. Ideal for industries requiring high accuracy in component inspection. Contact us for more information about this machine.
Overview
- brand: KEYENCE
- year: 2022
- MODEL: WM 3000
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Additional Information
Max. measuring length (W × D × H) 10,000 mm × 3,500 mm × 5,000 mm
Certified measuring range (W × D × H) 3,000 mm × 1,500 mm × 1,500 mm
Measurement accuracy ±(28 + 5 L/1000) μm*
Repeatability ±10 µm
Minimum display unit Distance 0.001 mm
Angle 0.001°
Rotation angle of the
measuring head
Horizontal ±90°
Vertical ±30°
External input 2 voltage-free inputs
Communication
Bluetooth communication Bluetooth 5
USB communication USB 3.0
Infrared communication 945 nm
Power supply Powered via supplied mains adapter
Rated values Rated voltage 24 V DC
Current consumption 1.7 A
Environmental conditions Operating ambient temperature +10°C to +35°C
Operating relative humidity 20 to 80% RH (non-condensing)
External dimensions 327.7 mm × 250.9 mm × 357.3 mm
Additional equipment
Measuring Head WM 3000
USB Cable
Power Supply
Measuring Probe WMP3000
Probe Tip Ø 5 mm
Calibration Device
Tripod
3D-CAD Add-on Software
Transport Case
4x Batteries for Measuring Probe
Machine Benefits
Technical Machine Benefits
Battery charger
Dongle for measuring software
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
