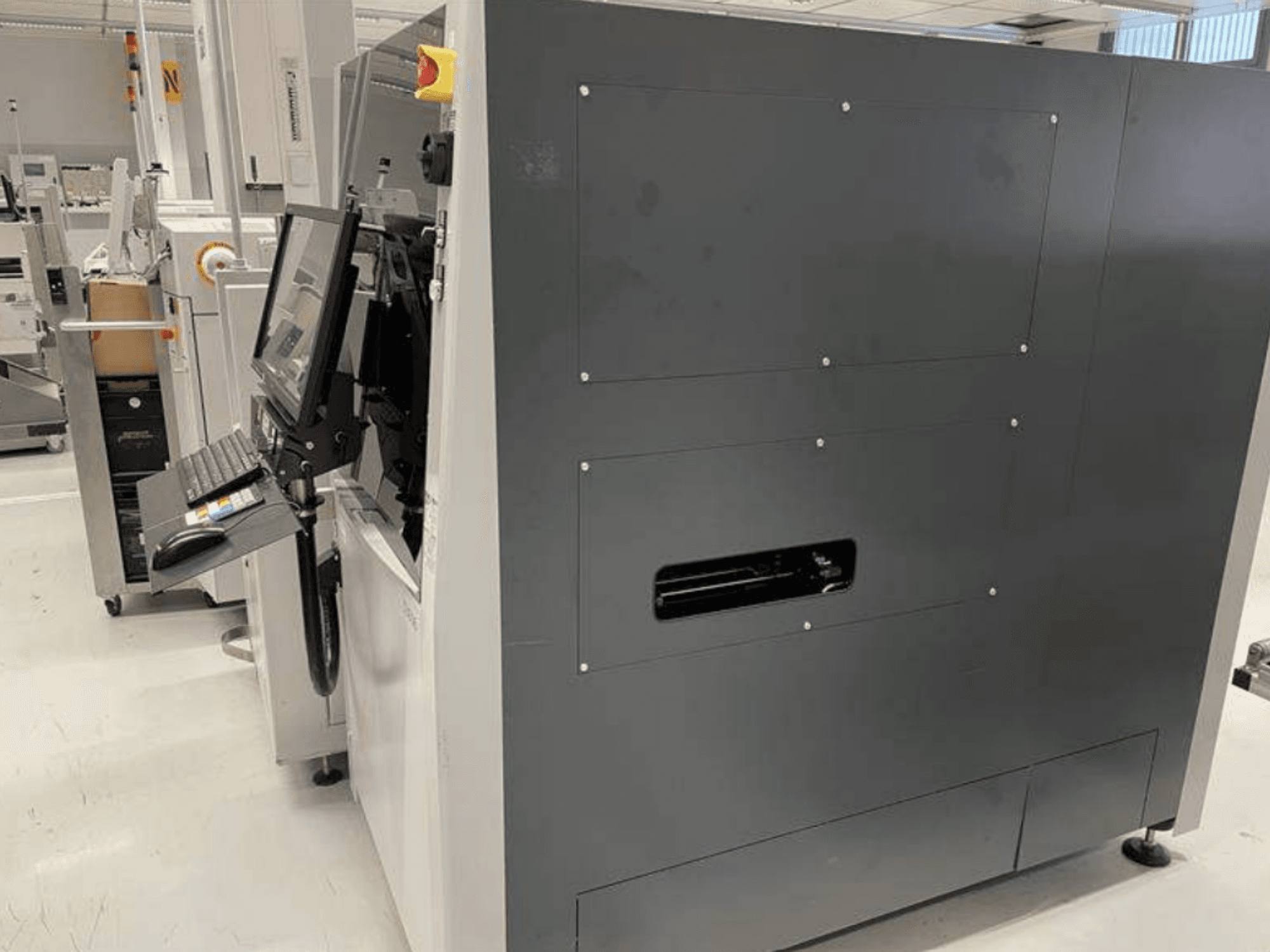

Optical measurement machine manufactured in 2023. This VISCOM S3016 features a maximum PCB dimension capacity of up to 430 mm x 610 mm and includes an uninterruptible power supply. It is equipped with 4 orthogonal cameras and offers high-resolution inspection capabilities. If you are looking to get high-quality inspection capabilities, consider the VISCOM S3016 optical measurement machine we have for sale. Contact us for further details.
Overview
- brand: VISCOM
- year: 2023
- MODEL: S3016
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Technical Information - VISCOM S3016
Dimensions
- Machine Weight: 980 kg
Additional Information
- System Function: Individual inspection from below with automatic track width adjustment; well-suited for inspecting THT solder joints
- Max. PCB Dimensions: Up to L 430 mm x W 610 mm
- System Computer: MS Windows operating system (presumably Windows 10)
- Power Supply / UPS: Uninterruptible power supply included
- Software: SI inspection software
- Sensor Specifications: 8M-4SRW
- Inspection Dimensions: 2D resolution
- Camera Configuration: 4 orthogonal cameras
- Illumination: Red illumination
- Resolution (Standard Mode): 23.4 µm/pixel
- Resolution (High-Resolution): 11 µm/pixel
- Hardware Extensions: Traffic light extension to 2,500
- Power Consumption: 2500 W
- Supply Voltage: Y400V 3P/N/PE AC, 50 Hz
- Control Voltage: 24 V
- Pneumatic Operating Pressure (P/min-max): 4 - 6 bar
- Sound Level: < 70 dBA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
