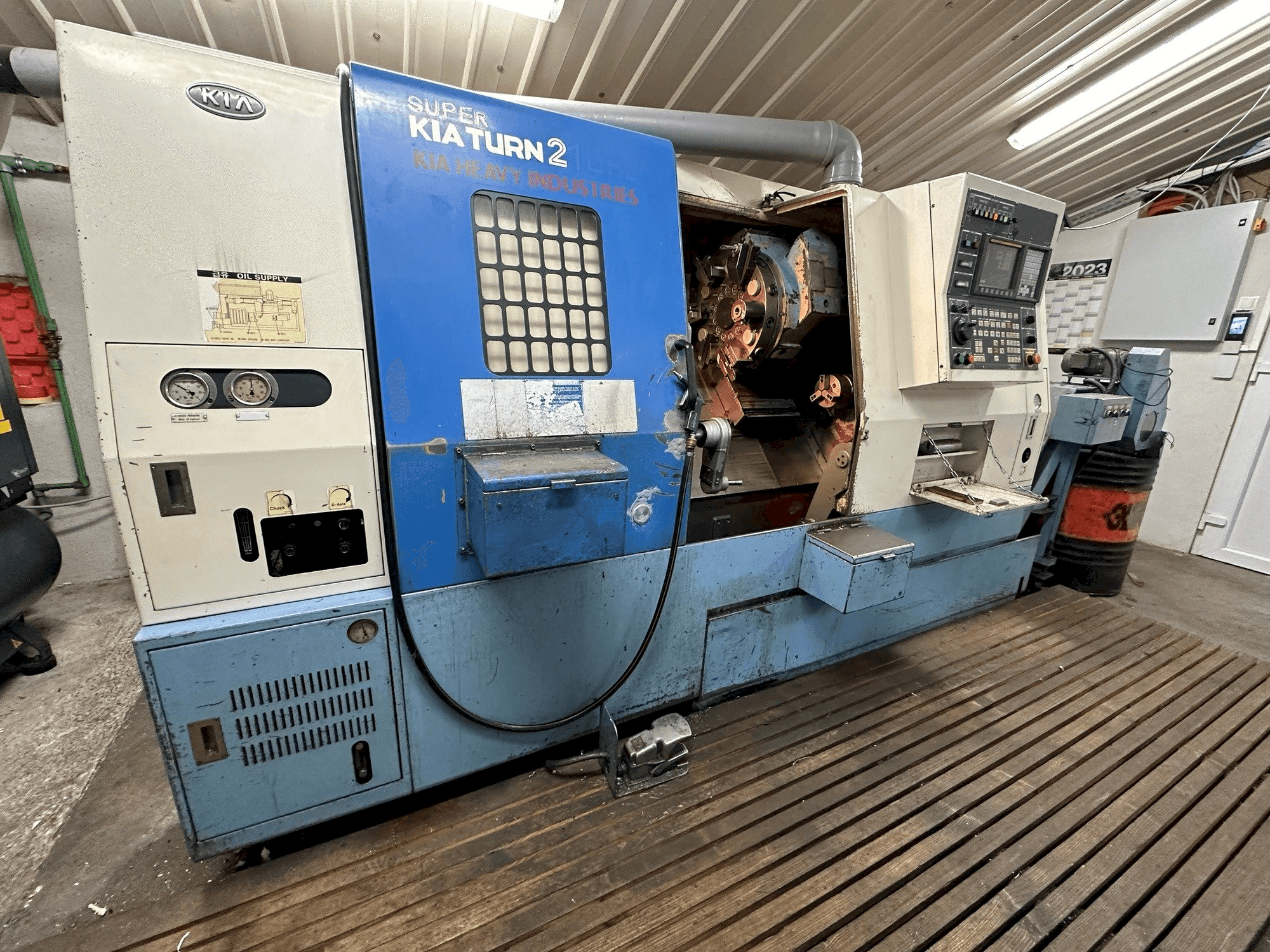

Front view of Kia Super Turn 21 LMS  machine

Kia - Super Turn 21 LMSSI-TUR-KIA-2003-00001

22,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Kia Super Turn 21 LMS Lathe was manufactured in the year 2003 in Korea. It is equipped with a Fanuc Series Oi-T control unit. The machine has a spindle speed of 4000 rpm.

Overview

  • brand: Kia
  • year: 2003
  • MODEL: Super Turn 21 LMS
  • application type: Turning
  • Location: Slovenia
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Kia Super Turn 21 LMS

General Data

  • Measurements width: 2200 mm
  • Measurements depth: 3900 mm
  • Measurements height: 2200 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: Fanuc
  • Model: Series Oi-T

Main drive

  • Spindle speed range: 4000 1/MIN

Movement

  • X-AXIS Movement: 210 mm
  • Z-AXIS Movement: 980 mm
  • C-AXIS Movement: 360° MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Turning Ø 550 mm
      • - Spindle bore 51 mm
      • - Atc / turret 12
      • - Speed live tools 4000 rpm
      • - Bar diameter 5-65mm
      • - Bar capacity 65mm/10 pcs
      • - Bar length max 1. 2m, 1. 5m, 1. 8m depending on machine spindle length
      • - Machine weight 265kgs, 280kgs, 330 kgs
      • - Air pressure 6 kg / cm2 70psi
      • - Power consumption 575w, power supply 220v
    • Qualitative Machine Benefits:
      • - Driven tools, material feeder, and an additional turning head are included.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
