Kitamura - Mycenter-HX500iTGAIT-MIL-KIT-2011-00001

Name: Kitamura Mycenter-HX500iTGA
Brand: Kitamura
SKU: IT-MIL-KIT-2011-00001
Price: 177000 EUR
Availability: InStock

177,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Kitamura Mycenter-HX500iTGA For Sale | gindumac.com

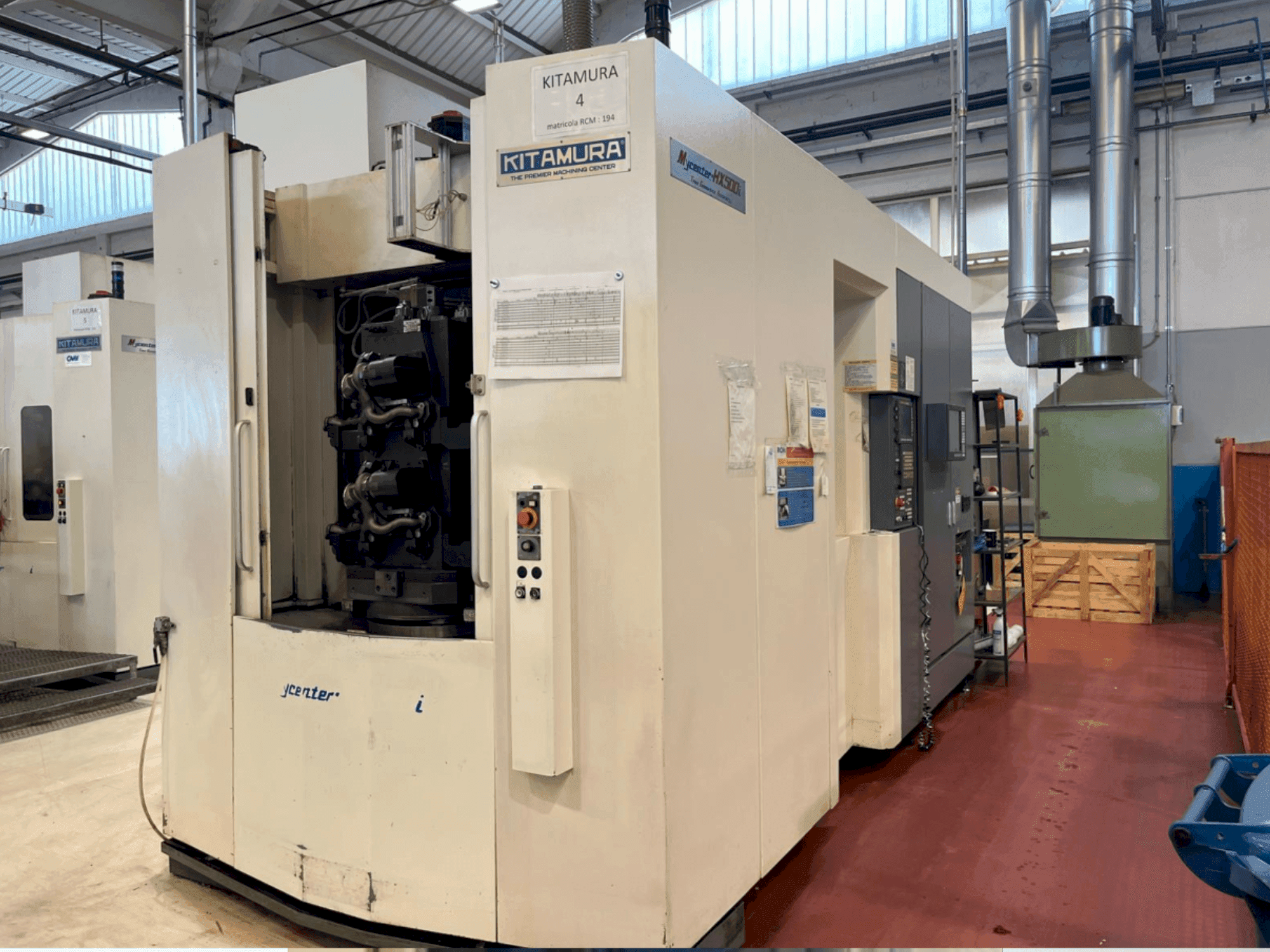

This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500×500mm table, capable of handling loads up to 800kg, and a high-speed spindle at 12,000 rpm. The machine includes a 200-tool magazine, dual pallet changer, and advanced FANUC Series 30i Model B CNC. Ideal for precision machining with its extensive Y, Z, and X travels. Contact us for more information about this machine.

Overview

brand: Kitamura
year: 2011
MODEL: Mycenter-HX500iTGA
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Kitamura Mycenter-HX500iTGA

General Data

Machine weight: 18000 kg

Control Unit

Brand: FANUC
Model: Series 30i-MODEL B

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 26 kW (continuous) / 30 kW (30 min)
Tool taper: NST No. 50
Number of axis: 4

Movement

X-AXIS Rapid traverse: 60 m/min
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Rapid traverse: 60 m/min

Table

Table load: 800 kg

Tools

Max weight: 30 kg
Max tool diameter: 125 mm
Max tool length: 500 mm

Media

Chip conveyor: Yes

Additional Equipment

- Chip Conveyor: Included
- 50 Bar High Pressure Coolant Through Spindle
- Glass Scales on X, Y, Z Axes
- Glass Scale on B Axis (Rotary Table)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting feed rate (all axes): 60 m/min
- - B rotary table feed rate: 45000 deg/min
- - Distance from table surface to spindle center: 75–795 mm
- - Distance from table center to spindle nose: 90–1110 mm
- - Table work area (w×l): 500 × 500 mm
- - B axis (rotary table): 360000 positions, 0. 001° indexing
- - Power requirement: ac 200/220v, 3-phase, 55kva
- - Hydraulic unit: 4. 3 mpa
- - Coolant pump: 410 l/min

Extra information

- Tools Magazine Capacity: 200 Tools Adjacent Pockets Full: 90 mm Tool Change Time (Tool-Tool): 2.1 sec Tool Change Time (Chip-Chip): 4.3 sec Tool Selection: Random (Bi-Directional) ATC Magazine: Chain Type (Pivoting Arm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
