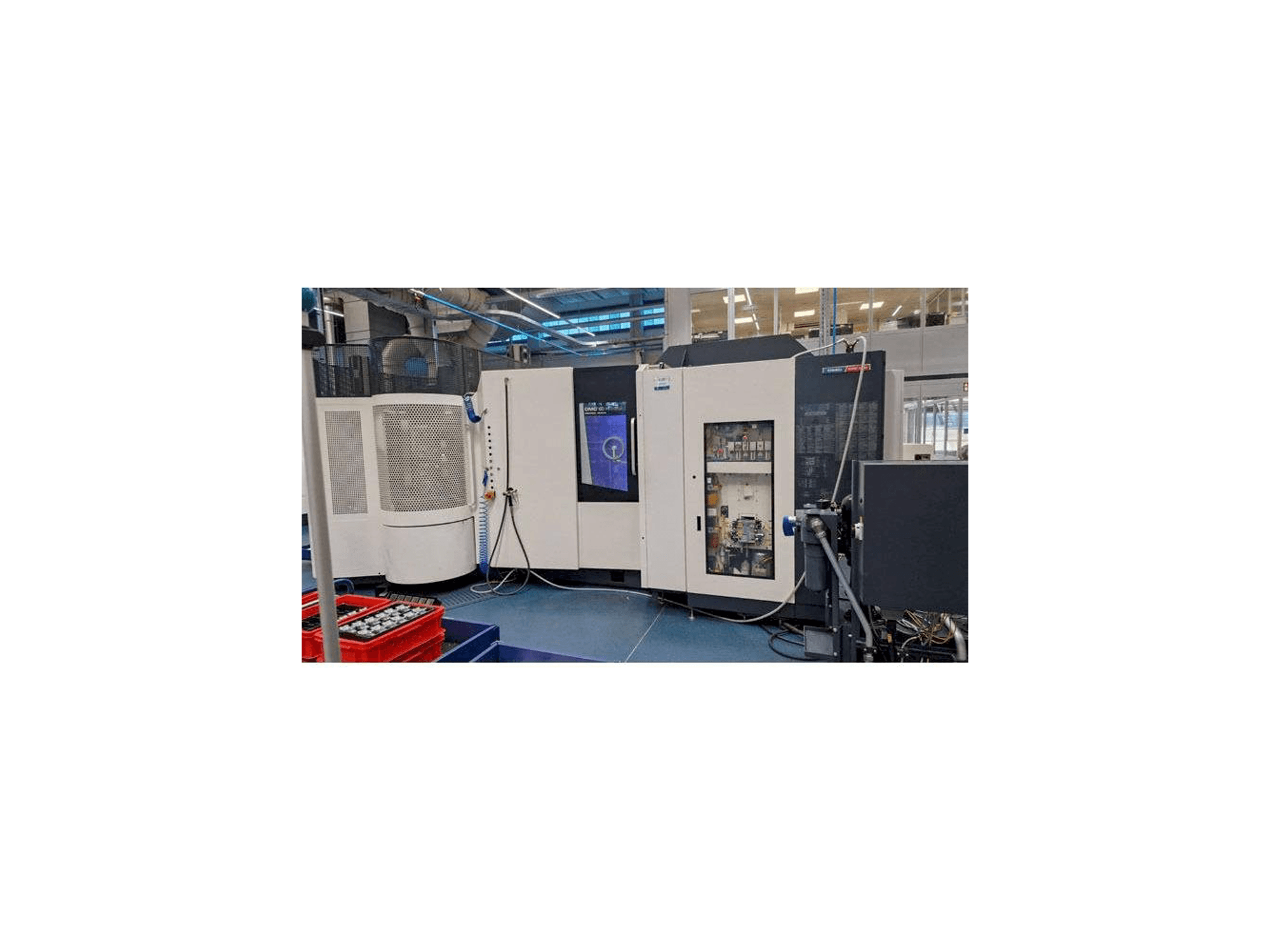

Front view of DMG DECKEL MAHO DMC 60H Linear  machine

DMG DECKEL MAHO DMC 60H Linear

DMG - DECKEL MAHO DMC 60H Linear

2013

216,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG DMC 60H Linear Horizontal Machining center was manufactured in the year 2013 and has 46048 production hours. It is equipped with a Siemens 840 D control unit and has 3 axis. The machine has a spindle speed of 18000 rpm. See original delivery note as PDF (German) attached to see all technical positions.

Overview

  • brand: DMG
  • year: 2013
  • MODEL: DECKEL MAHO DMC 60H Linear
  • production hours: 46048
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-MIL-DMG-2013-00001

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: 840D
  • CNC main language: German
  • CNC language customizable: Yes

Main drive

  • Spindle speed range: 18000 1/MIN
  • Spindle motor power: 20 kW
  • Tool taper: HSK-A63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 630 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 850 mm

Workpiece

  • Workpiece weight: 600 Kg

Table

  • Outer length: 500 mm
  • Outer width: 500 mm

Tools

  • Number of stations: 5
  • Slots in storage: 303
  • Type of tool holder: HSK-A63

    Additional Equipment

    • - Scraper belt chip conveyor with coolant system 980 liter, paper belt filter, discharge height 950 mm, width 380 mm, IKZ 80 bar / 14 l/min through spindle center (AD), pressure infinitely programmable, selectable via NC program, Roof flushing of the working area 180 l/min via flushing nozzles with a ripple valve
    • - Rotating viewing window / work area door
    • - Flushing gun with pump
    • - Double gripper
    • - Wheel magazine
    • - NC rotary table Ø 630 mm
    • - 3D path control

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Number of pallets: 12 // round pallet storage: rs 12
        • - Rotary pallet changer // work table with pallet support // permissible load: 600 kg // 2 pallets 500 x 500 mm with t-slots // pallet management // pallet changer cladding // claw flushing pallet
        • - Cooling through the spindle center: 80 bar
        • - Tool magazine: wheel magazine (5 wheels) with 303 magazine slots hsk a63
        • - Infrared measuring probe renishaw pp60 optical (omp60) hsk-a 63
        • - Mpc machine protection control (machine protection through rapid shutdown)
        • - Laminated glass safety pane for right-hand cabin door window
      • Qualitative Machine Benefits:
        • - Mcis tdi tool management (module tdi machine) - overview , tool handling, planning
        • - Extraction mechanical and electrical preparation for oil mist extraction
        • - Tool breakage check mechanical design

      Extra information

      • - Documentation and Electrical circuit diagram (German) available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
