MTcut V 85 H

Photo Gallery

MTcut - V 85 HDE-MIL-MTC-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MTcut V 85 H For Sale | gindumac.com

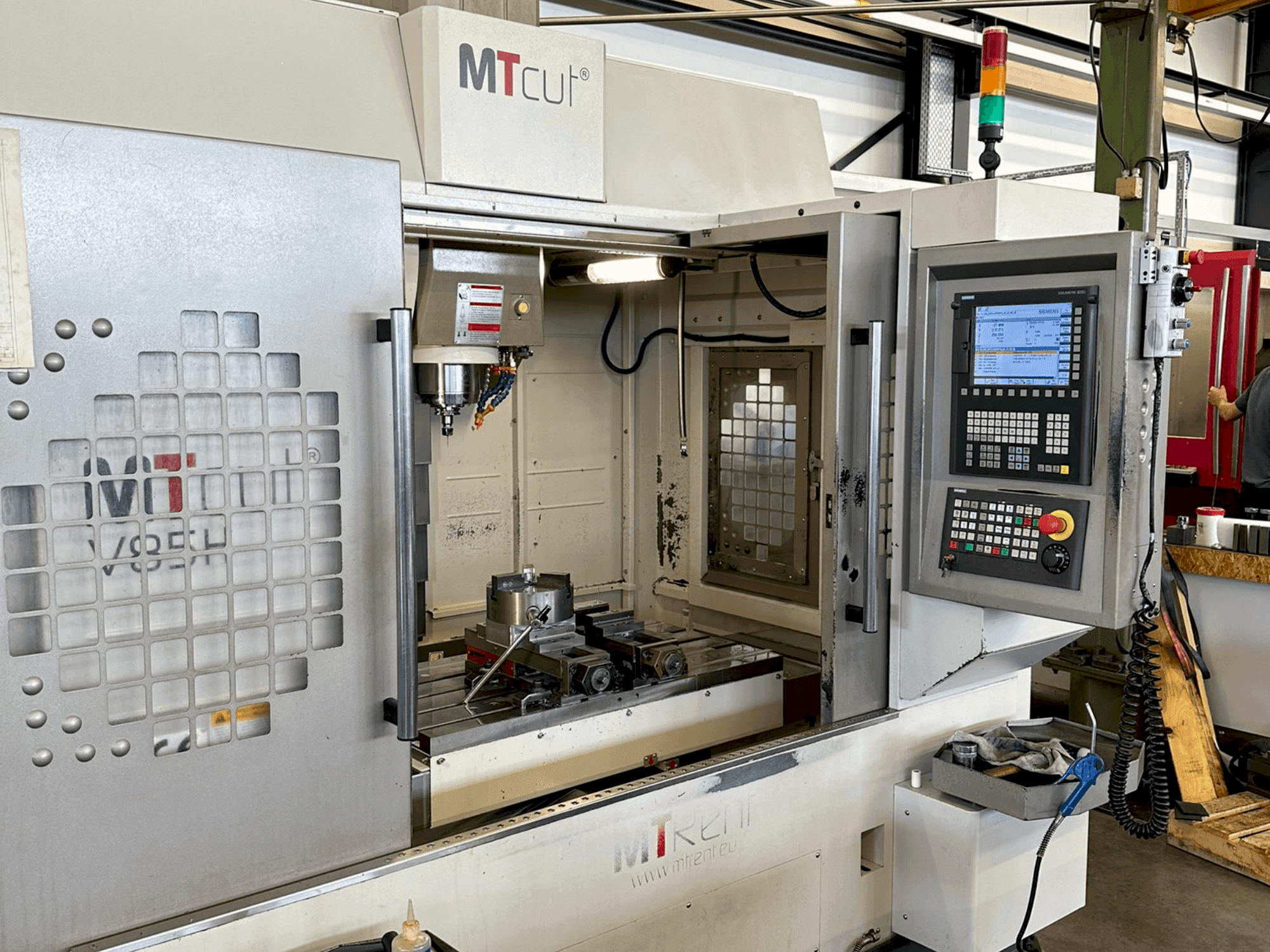

This 3-axis MTcut V85H vertical machining centre was manufactured in 2013. It features a robust work table measuring 1000 x 520 mm with a maximum load capacity of 800 kg. The spindle operates at speeds ranging from 60 to 15,000 rpm, accommodating tools up to 80 mm in diameter and 300 mm in length. With 24 tool positions and a feed rate of up to 12,000 mm/min, the MTcut V85H machine we have for sale is ideal for diverse machining tasks. Contact us for further details.

Overview

brand: MTcut
year: 2013
MODEL: V 85 H
production hours: 35411
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - MTcut V 85 H

Dimensions

Machine Depth: 3100 mm
Machine Height: 3000 mm
Machine Weight: 7800 kg
Table Load: 800 kg

Movement

Number of Axes: 3
X-axis Travel: 850 mm
Y-axis Travel: 520 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Work table:Size: 1000 x 520 mm
T-slots: 18 mm x 5 x 100 mm
Distance between spindle nose and work table: 130-740 mm
Distance spindle nose stand: 623 mm
Feed rate: 1-12,000 mm/min
Spindle diameter: 70 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
