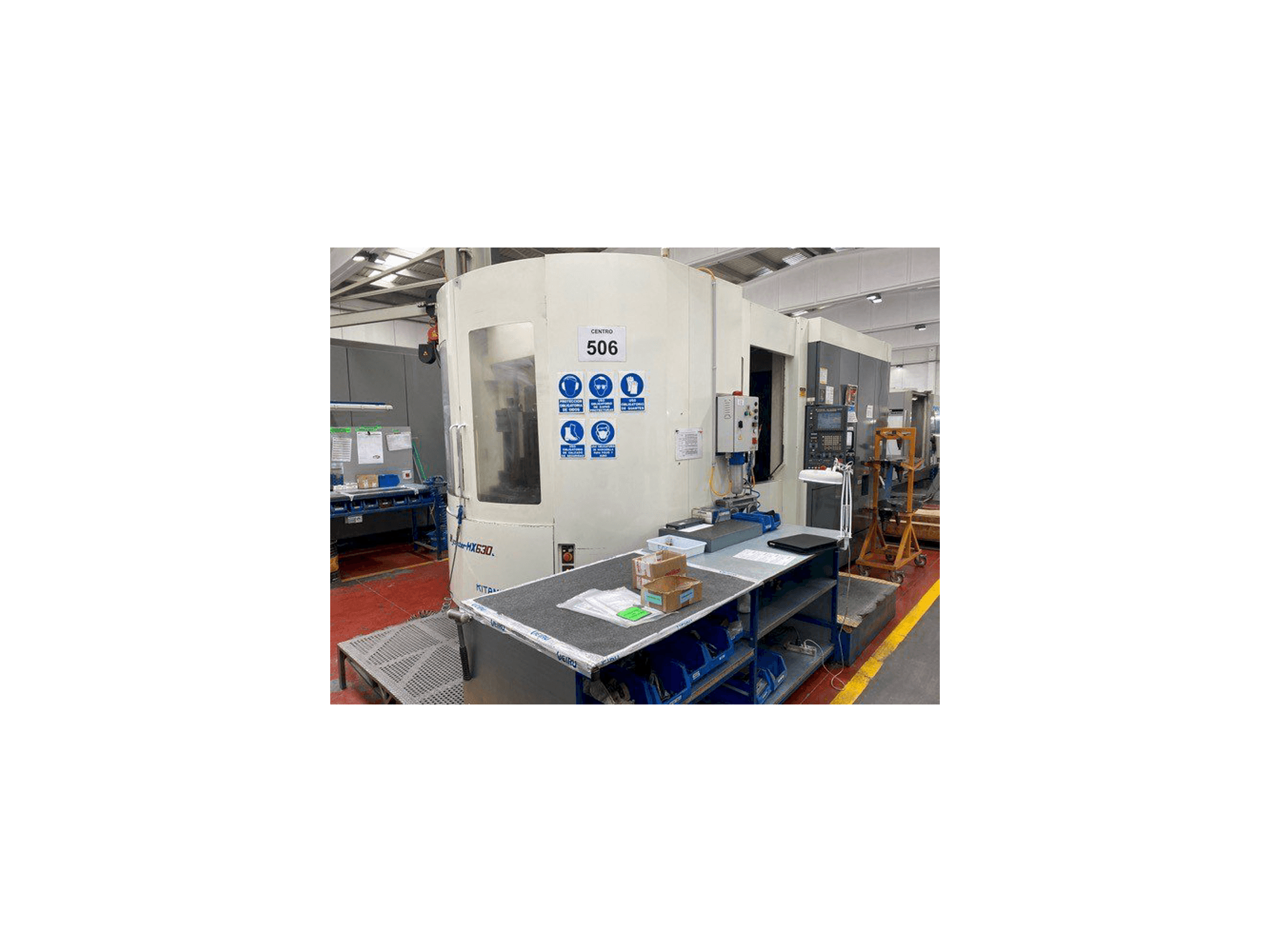

Front view of Kitamura Mycenter HX630L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter HX630L

Photo Gallery

Kitamura - Mycenter HX630LES-MIL-KIT-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Mycenter HX630L Horizontal Machining Center

This Kitamura Mycenter HX630L Horizontal Machining Center was made in the year 2004. It is equipped with a Fanuc Series 16 iMB control unit. It has 12881 of cutting hours. This 4 axis machine incorporates a table of 630 x 630 mm and can perform with a spindle speed up to 12000 rpm. It includes 2 pallets, and present good working conditions.

Overview

brand: Kitamura
year: 2004
MODEL: Mycenter HX630L
production hours: 12881
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Kitamura Mycenter HX630L

Control Unit

Control Brand: FANUC
Control Model: Series 16 iMB

Dimensions

Machine Depth: 3869 mm
Machine Height: 3499 mm
Machine Weight: 21000 kg
Table Length: 630 mm
Table Width: 630 mm

Movement

Number of Axes: 4
X-axis Travel: 1000 mm
Y-axis Travel: 800 mm
Z-axis Travel: 820 mm

Technical Specification

Spindle Speed: 12000 RPM
Tool Stations: 50

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good conditions

Technical Machine Benefits

2 pallets
Manual guide interactive programming
Rs232, ethernet, pcmcia slots
4th continuous axis 360 000 pos
2 ranges gearbox
Double ballscrews
Lubricating tank with pumps
Coolant through spindle 50 bars
Electrical transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
