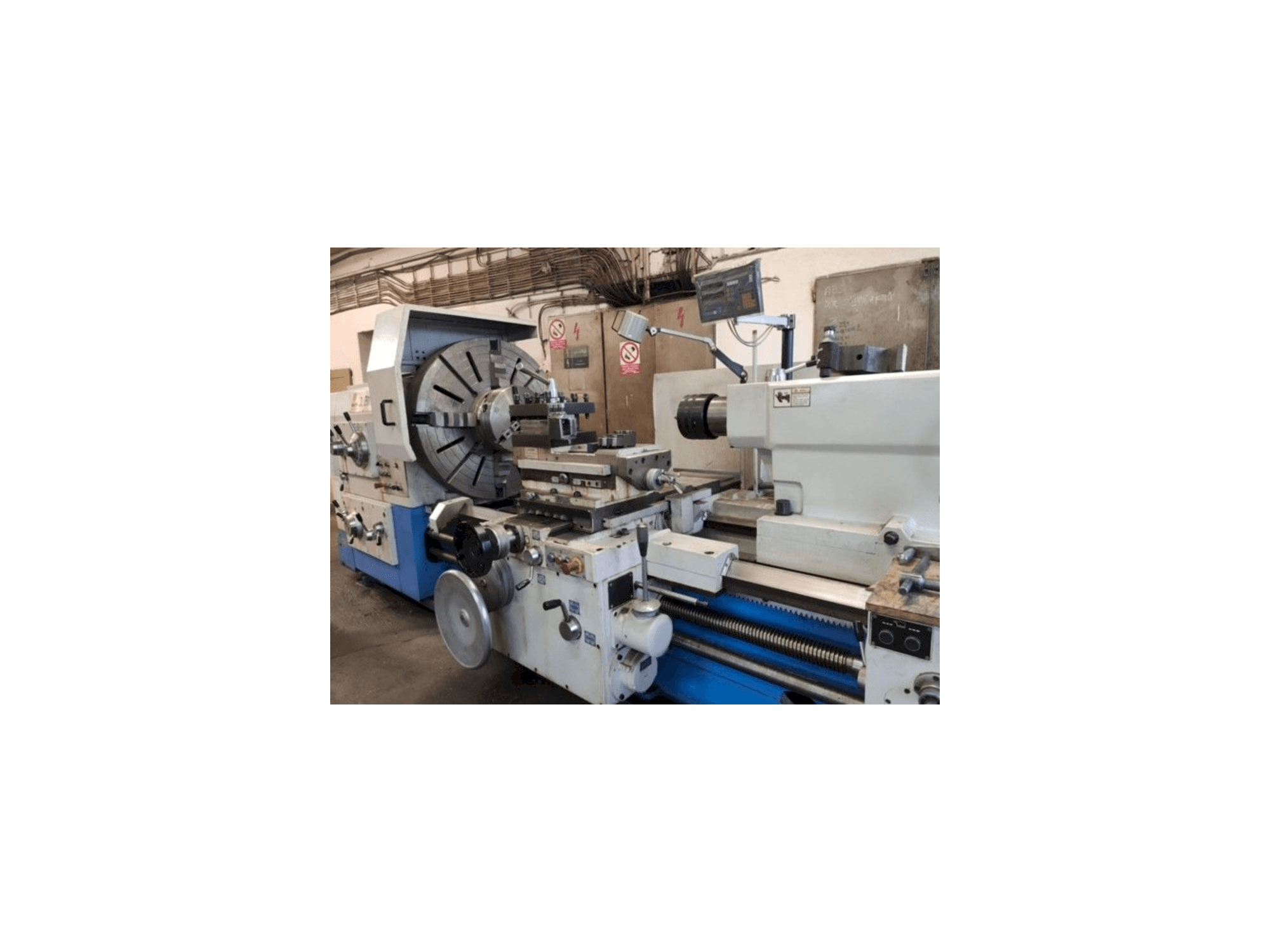

Front view of KNUTH DL E Heavy 500/1500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KNUTH DL E Heavy 500/1500

Photo Gallery

KNUTH - DL E Heavy 500/1500CZ-TUR-KNU-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

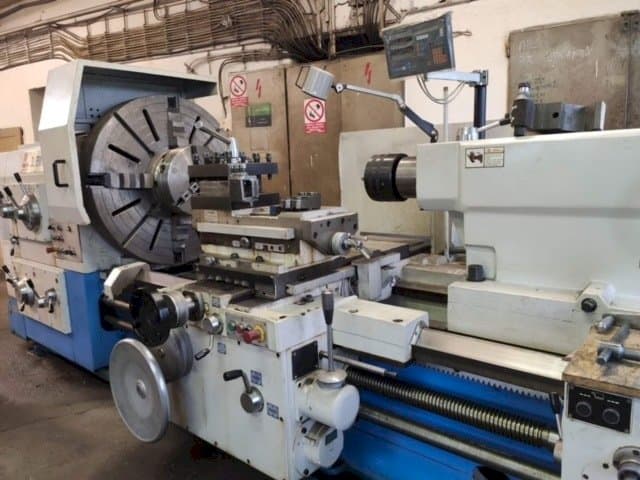

KNUTH DL E Heavy 500/1500 Lathe

This KNUTH DL E Heavy 500/1500 Lathe was manufactured in the year 2011 in Germany. This 2 axis machine operates with a spindle speed range up to 315 rpm, max turning length 1500 mm, and a spindle bore 130 mm. It presents very good working conditions, low working hours.

Overview

brand: KNUTH
year: 2011
MODEL: DL E Heavy 500/1500
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine

Technical Information - KNUTH DL E Heavy 500/1500

Dimensions

Machine Depth: 1850 mm
Machine Height: 1790 mm
Machine Weight: 9350 kg

Movement

X-axis Travel: 510 mm
Y-axis Travel: 1300 mm

Technical Specification

Spindle Speed: 315 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition, low hours

Technical Machine Benefits

Max. Turning Ø over bed 1000 mm
Max. Turning Ø over cross-slide 650 mm
Max. Turning length 1500 mm
Spindle bore 130 mm
Main motor power 25 kw
Spindle taper: iso a2-15
Tailstock stroke 300 mm
Tailstock quill diameter 160 mm, taper metric 80
Digital read-out

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
