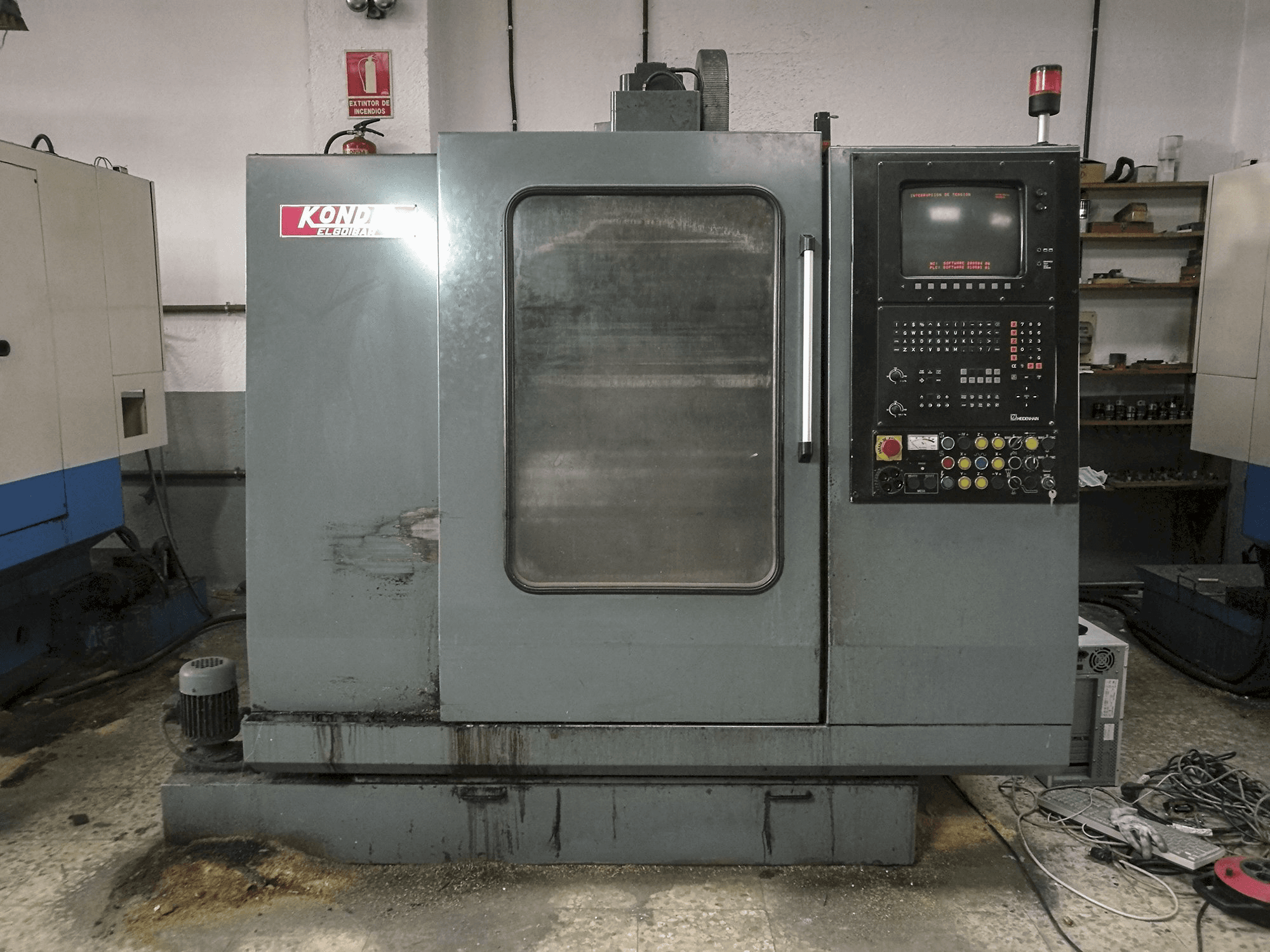

KONDIA B-500 Vertical Machining Center

This KONDIA B-500 Vertical Machining Center, built 1997 in Spain, has an estimated production time of 20000 working hours. Equipped with a Heidenhain TNC 415 Control unit, this machine has mainly worked with brass parts during the past.

Overview

brand: KONDIA
year: 1997
MODEL: B-500
production hours: 20000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KONDIA B-500

General Data

Measurements width: 1940 mm
Measurements depth: 1950 mm
Measurements height: 2240 mm
Machine weight: 3100 kg

Control Unit

Model: TNC 415
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 100-6000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 380 mm

Workpiece

Workpiece x: 700 mm
Workpiece y: 400 mm
Workpiece z: 380 mm
Workpiece weight: 300 kg

Table

Outer length: 700 mm
Outer width: 350 mm
Number of tslots: 3
Distance between: 110 mm

Tools

Slots in storage: 18
Max weight: 6 kg
Max tool diameter: 85 mm
Max tool length: 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
