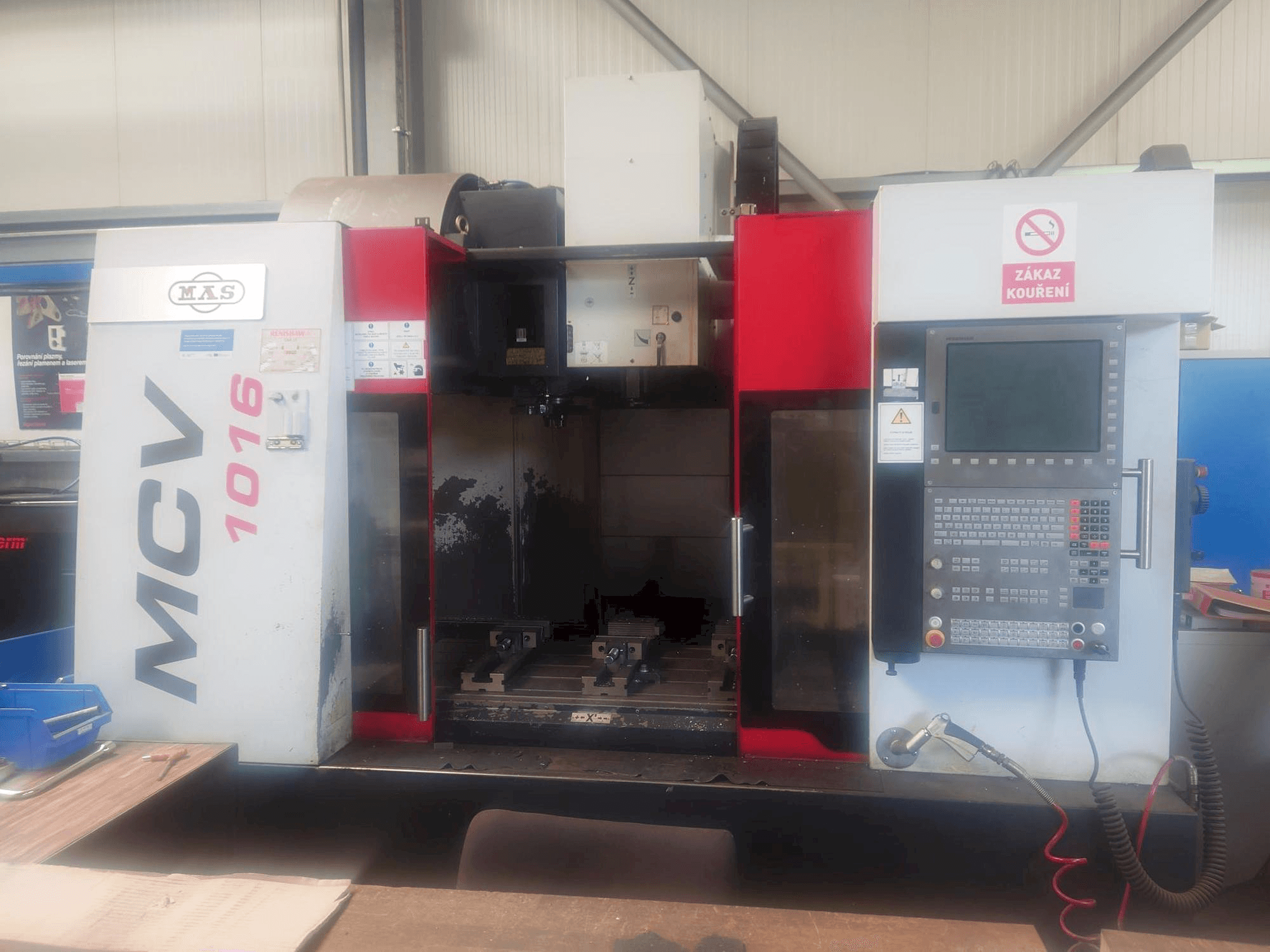

Front view of KOVOSVIT MAS MCV 1016 Quick machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1016 Quick

KOVOSVIT MAS - MCV 1016 QuickCZ-MIL-KOV-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center

This KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center was made in 2015 in the Czech Republic. It is equipped with a Heidenhain iTNC 530 HSCI control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and is in very good condition.

Overview

brand: KOVOSVIT MAS
year: 2015
MODEL: MCV 1016 Quick
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1016 Quick

General Data

Measurements width: 3080 mm
Measurements depth: 2700 mm
Measurements height: 2937 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 710 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1300 mm
Outer width: 600 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 24
Max weight: 6,5 kg
Max tool diameter: 75/120 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Power consumption: 40 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Workpiece + tool probe
- - Spindle motor power (s1/s6 - 40%) 17/25 kw
- - Main motor torque (s1/s6 - 40%) 162/239 nm
- - Work feedrate (x/y/z) 1-30 000 mm/min
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
